WIRING HARNESS (MODEL T/V)

VS800GL INTRUDER 1993 (P) USA (E03)

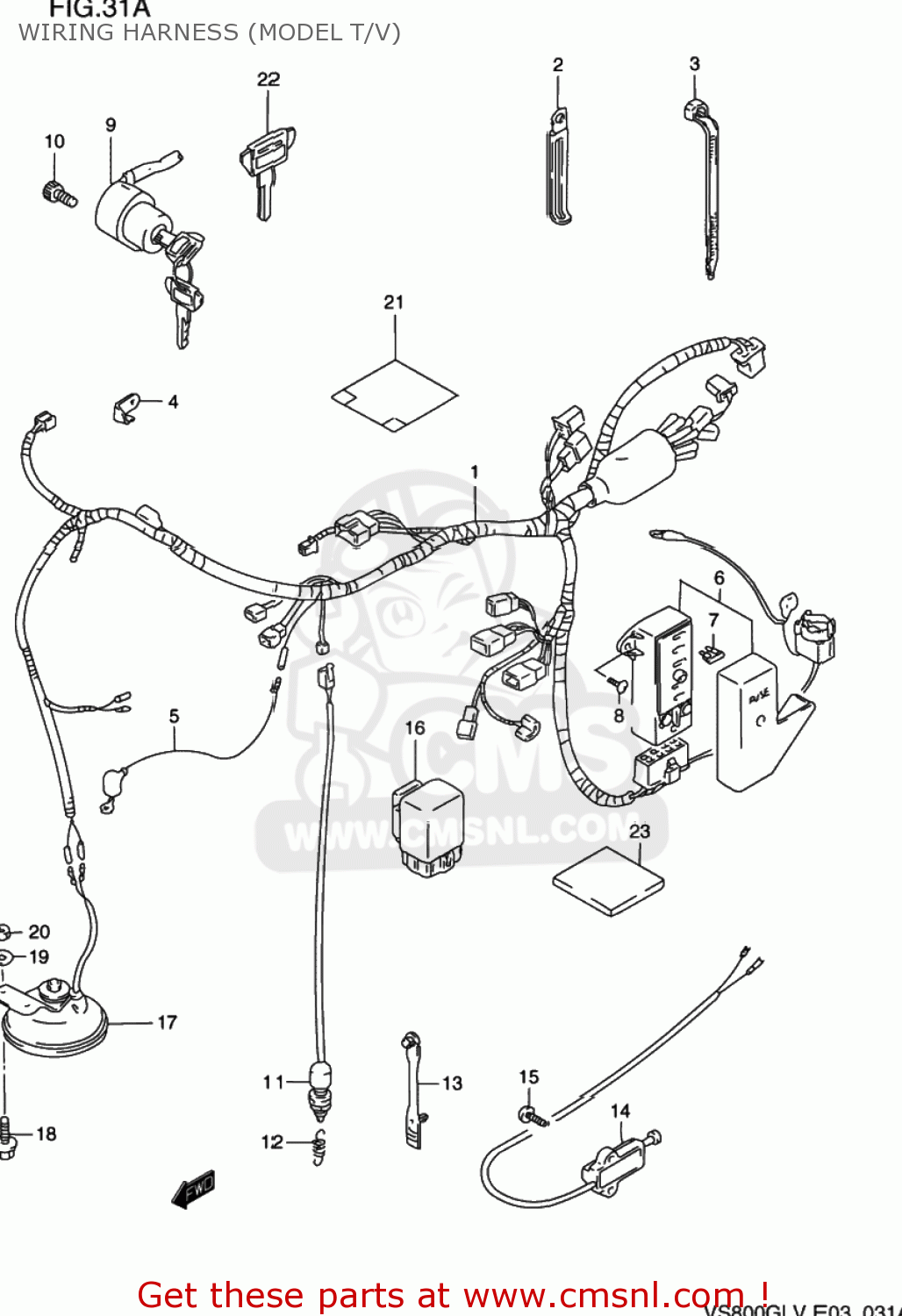

Wiring harness (model t/v) diagram VS800GL INTRUDER 1993 (P) USA (E03)

WIRING HARNESS (MODEL T/V) VS800GL INTRUDER 1993 (P) USA (E03)
WIRING HARNESS (MODEL T/V) VS800GL INTRUDER 1993 (P) USA (E03)
WIRING HARNESS (MODEL T/V) VS800GL INTRUDER 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661039AC0
ref: 1
HARNESS,WIRING
€ 0.00
2-1
0940406429
ref: 2-1
CLAMP(L:45)
€ 2.50
2-2
0940406431
ref: 2-2
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
3-1
0940711401
ref: 3-1
CLAMP(L:95)
0940711401
€ 2.50
3-2
0940714403
ref: 3-2
CLAMP(L:125)
0940714403
€ 2.50
3-3
0940718403
ref: 3-3
09407-18402
CLAMP L:165
€ 2.50
4
3668738A00
ref: 4
PLATE,COUPLER HOLDER
€ 2.00
5
3685117E00
ref: 5
WIRE,WATER TEMP GAUGE LEAD
3685117E00
€ 7.50
6
3674039A00
ref: 6
BOX ASSY,FUSE
3674039A00
€ 93.50
7-1
0948110101
ref: 7-1
FUSE(10A)
0948110101
€ 2.50
7-2
0948125101
ref: 7-2
09481-25103
FUSE (25A)
0948125101
€ 2.50
8
0214206163
ref: 8
02142-0616A
SCREW
0214206163
€ 2.50
9
3711038A03
ref: 9
37110-38A04
SWITCH ASSEMBLY,IGNITION
€ 74.50
10
0713005163
ref: 10
07130-0516A
BOLT
€ 2.00
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
12
0944306046
ref: 12
SPRING
0944306046
€ 3.50
13
0940705403
ref: 13
CLAMP,L:88
0940705403
€ 1.50
14
3784039A22
ref: 14
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
15
0211276203
ref: 15
02112-7620B
SCREW
€ 2.50
16
3874024X50
ref: 16
RELAY ASSY
3874024X50
€ 37.50
17
3850039A00
ref: 17
HORN ASSY
3850039A00
€ 126.00
18
0155006303
ref: 18
01550-0630A
BOLT
0155006303
€ 2.50
19
0832201063
ref: 19
08322-0106B
WASHER
0832201063
€ 2.00
20
0831000063
ref: 20
08310-0006A
NUT 6MM
0831000063
€ 2.00
21
3661815D20
ref: 21
COVER,WIRING HARNESS
3661815D20
€ 12.00
22-1
3714603A00
ref: 22-1
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
22-2
3714603A10
ref: 22-2
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
22-3
3714603A20
ref: 22-3
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
22-4
3714603A30
ref: 22-4
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
23
3692002200
ref: 23
COVER,HARNESS
3692002200
€ 3.00
