Buy Suzuki VS Parts Online
home
CAM CHAIN
VS800GL INTRUDER 2000 (Y) USA (E03)

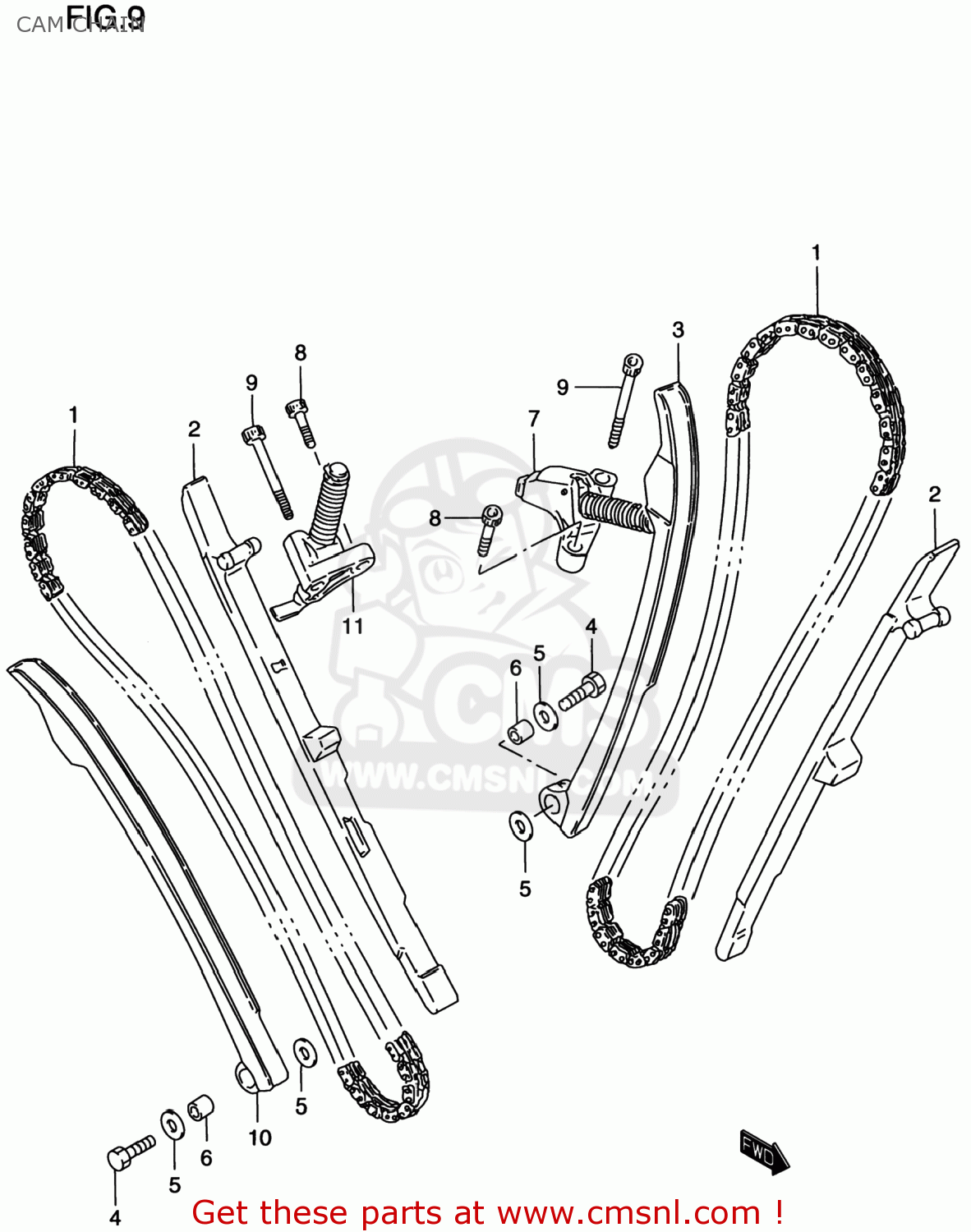

Cam chain diagram VS800GL INTRUDER 2000 (Y) USA (E03)
CAM CHAIN VS800GL INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276038A20
ref: 1
12760-38A21
CHAIN COMP,CAMSHAFT DRIVE
€ 106.00
2
1277138A02
ref: 2
GUIDE,CAM CHAIN
€ 39.00
3
1281138A01
ref: 3
TENSIONER,FR CAM CHAIN
€ 39.00
4
0910006129
ref: 4
BOLT(6X26)
€ 2.00
5
0821106182
ref: 5
WASHER
€ 2.00
6
0918006148
ref: 6
SPACER(6X11X11)
€ 3.50
7
1283138A00
ref: 7
12831-38A01
ADJUSTER ASSEMBLY,FRONT TENSIONER
€ 70.50
8
0713006203
ref: 8
07130-0620B
BOLT,CRKCASE,R
€ 3.00
9
0713006453
ref: 9
07130-0645B
BOLT
€ 2.50
10
1281638A01
ref: 10
TENSIONER,RR CAM CHAIN
€ 28.00
11
1283238A00
ref: 11
12832-38A01
ADJUSTER ASSEMBLY,REAR TENSIONER
€ 99.00
