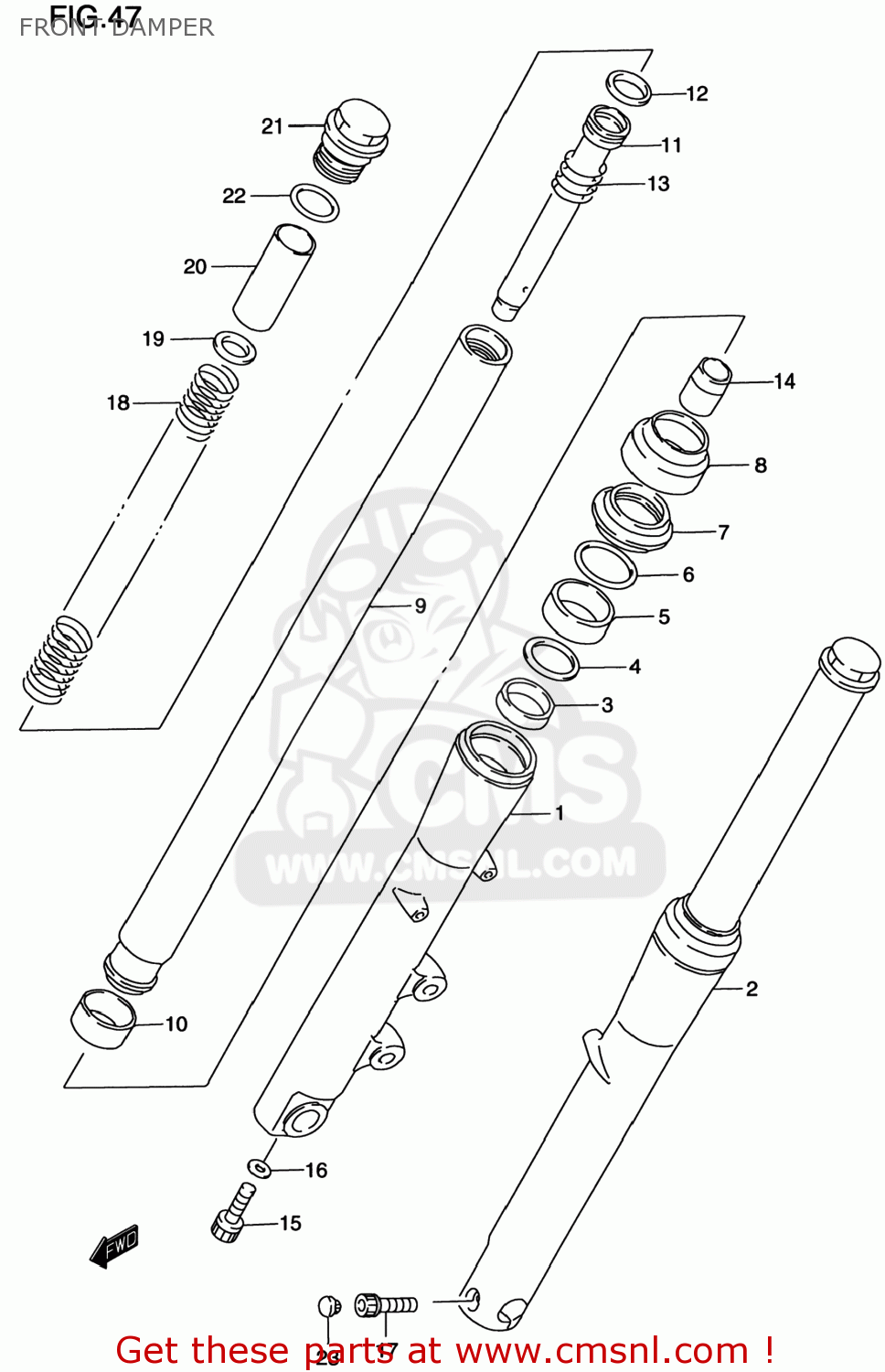

FRONT DAMPER

ref

part #

description

quantity

5110339A41
ref:

DAMPER ASSY,FR FORK,R

€ 493.50

5110439A41
ref:

DAMPER ASSY,FR FORK,L

€ 493.50

5110339A70
ref:

DAMPER ASSY,FR FORK,R

€ 721.00

5110439A70
ref:

DAMPER ASSY,FR FORK,L

€ 721.00

1-1

5113139A00
ref: 1-1

TUBE,OUTER RH

€ 313.00

1-2

5113139A70
ref: 1-2

TUBE,OUTER,R

€ 323.00

1-2

5113139A70
ref: 1-2

TUBE,OUTER,R

€ 323.00

2-1

5114139A00
ref: 2-1

TUBE,OUTER LH

€ 313.00

2-2

5114139A70
ref: 2-2

TUBE,OUTER,L

€ 323.00

3

5115239A40
ref: 3

BUSH,GUIDE

€ 24.00

4

5116839A00
ref: 4

SPACER,SEAL

€ 7.50

5

5115319D00
ref: 5

SEAL,OIL

€ 16.00

6

5115632B00
ref: 6

RING,OIL SEAL STOPPER

€ 6.50

7

5117319D00
ref: 7

SEAL,DUST

€ 17.50

8

5157238B00
ref: 8

COVER,CASE

€ 31.00

9

5111039A41
ref: 9

TUBE,INNER

€ 435.50

10

5112139A40
ref: 10

BUSH,SLIDE

€ 24.50

11

5114639A00
ref: 11

PIPE,SEAT

€ 66.00

12

5119632B00
ref: 12

RING,PISTON

€ 7.50

13

5117732B00
ref: 13

SPRING,REBOUND

€ 9.50

14

5119538B00
ref: 14

PIECE,OIL LOCK

€ 27.50

15

5114748130
ref: 15

BOLT(8X27)

€ 3.50

16

5114836011
ref: 16

GASKET (NAS)

€ 4.00

17

0713008357
ref: 17

BOLT

€ 4.50

18

5117139A00
ref: 18

SPRING

€ 73.00

19

5117232B00
ref: 19

WASHER,SPRING

€ 6.00

20

5117639A00
ref: 20

COLLAR,SPRING

€ 12.00

21

5135139A00
ref: 21

BOLT,FORK

€ 77.00

22

5111739A00
ref: 22

O RING

€ 4.00

23

0925006009
ref: 23

CAP(OD:14.5)

€ 3.50
