RADIATOR
VS800GL INTRUDER 2000 (Y) USA (E03)

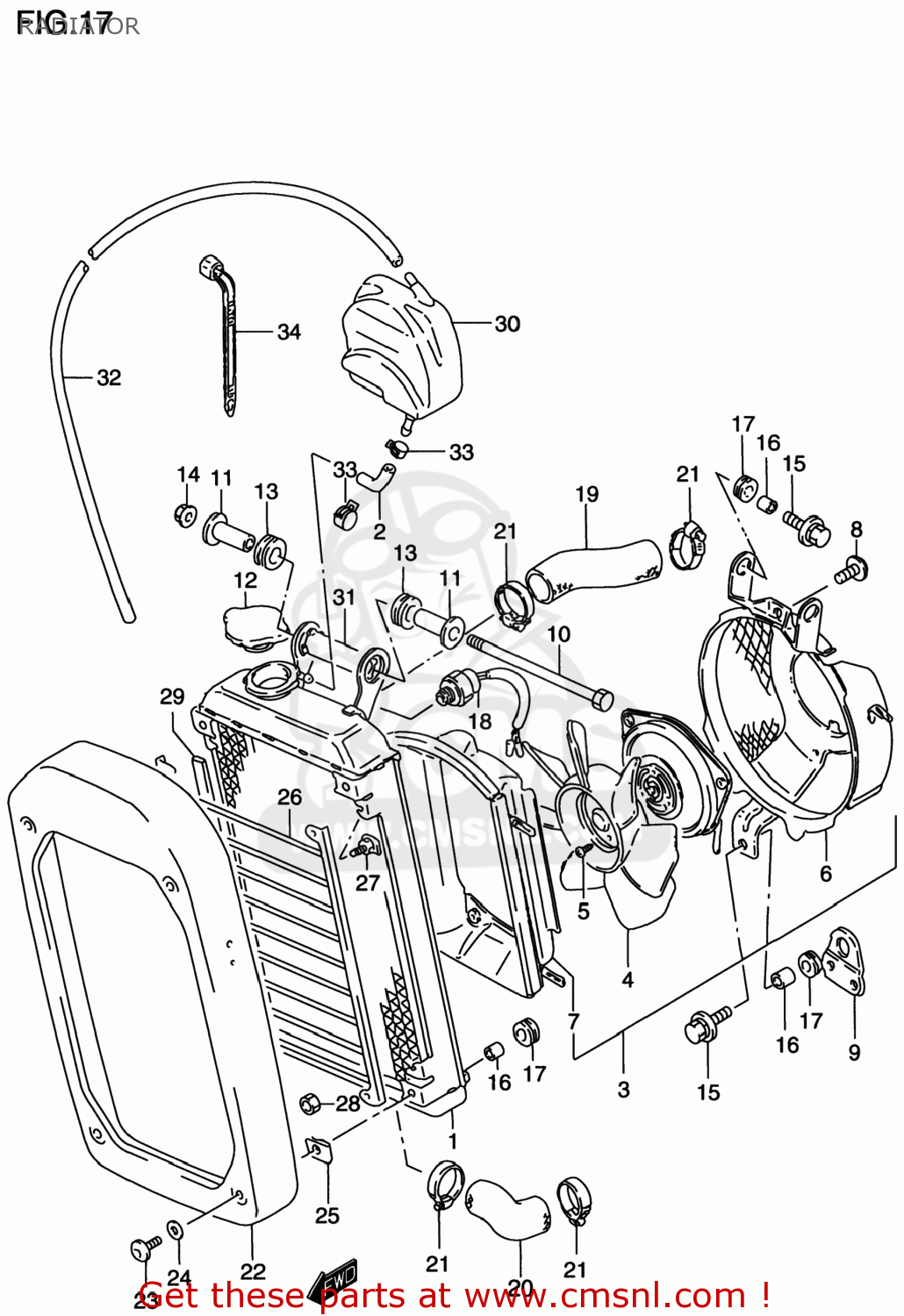

Radiator diagram VS800GL INTRUDER 2000 (Y) USA (E03)
RADIATOR VS800GL INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771039A00
ref: 1
RADIATOR ASSY,WATER
€ 1,106.50
2-1
1773012C01
ref: 2-1
17730-08J00
CAP,RADIATOR
€ 40.00
2-2
1773012C20
ref: 2-2
17730-08J00
CAP COMP,RADIATOR
€ 40.00
3
1780038A03
ref: 3
FAN ASSY,RADIATOR
€ 496.00
4
1782038A00
ref: 4
FAN
€ 51.00
5
0211204063
ref: 5
02112-0406B
SCREW 4X6
€ 2.00
6
1777039A00
ref: 6
SHROUD,FAN
€ 78.50
7
1715038A00
ref: 7
DUCT,FAN
€ 82.50
8
0211275103
ref: 8
02112-7510A
SCREW
€ 1.50
9
1780838A00
ref: 9
BRACKET,RADIATOR FAN
€ 4.00
10
0910010277
ref: 10
BOLT(10X135)
€ 3.00
11
1778238A01
ref: 11
SPACER,RADIATOR CUSHION NO.2
€ 12.50
12
1778338A00
ref: 12
SPACER,RDTR CUSH NO.2 OUTER
€ 2.00
13
0932015008
ref: 13
CUSHION
€ 3.50
14
0831931103
ref: 14
08319-3110A
NUT
€ 3.00
15
0911806067
ref: 15
09118-06017
BOLT
€ 1.50
16
0918006261
ref: 16
SPACER(6.5X9X8)
€ 2.00
17
0932008037
ref: 17
CUSHION
€ 4.00
18
1768024A02
ref: 18
SWITCH,RADIATOR FAN
€ 106.50
19
1785139A00
ref: 19
HOSE,RADIATOR INLET
€ 17.50
20
1785838820
ref: 20
HOSE,WATER PUMP OUTLET
€ 16.50
21
0940232511
ref: 21
CLAMP
€ 11.50
22-1
1776139A0119A
ref: 22-1
COVER,RADIATOR(RED)
€ 78.50
22-1
1776139A0119A
ref: 22-1
COVER,RADIATOR(RED)
€ 78.50
22-2
1776139A01Y98
ref: 22-2
17761-39A01-33J
COVER,RADIATOR
€ 129.50
22-2
1776139A01Y98
ref: 22-2
17761-39A01-33J
COVER,RADIATOR
€ 129.50
22-3
1776139A01Y4M
ref: 22-3
COVER,RADIATOR
€ 129.50
22-3
1776139A01Y4M
ref: 22-3
COVER,RADIATOR
€ 129.50
22-4
1776139A01Y7H
ref: 22-4
COVER,RADIATOR
€ 91.00
22-4
1776139A01Y7H
ref: 22-4
COVER,RADIATOR
€ 91.00
22-6
1776139A0119A
ref: 22-6
COVER,RADIATOR(RED)
€ 78.50
22-6
1776139A0119A
ref: 22-6
COVER,RADIATOR(RED)
€ 78.50
22-7
1776139A0133J
ref: 22-7
COVER,RADIATOR(BLACK)
€ 129.50
22-7
1776139A0133J
ref: 22-7
COVER,RADIATOR(BLACK)
€ 129.50
22-8
1770039810
ref: 22-8
COVER SET,RADIATOR FOR VS800
€ 107.50
22-8
1770039810
ref: 22-8
COVER SET,RADIATOR FOR VS800
€ 107.50
23
0913906076
ref: 23
SCREW(6X10)
€ 2.50
24
0916006126
ref: 24
WASHER(6.5X14X2)
€ 2.00
25-1
1776239A00
ref: 25-1
09148-06015
NUT,RADIATOR COVER
€ 3.50
25-2
0914806015
ref: 25-2
NUT
€ 3.50
26
1779039A00
ref: 26
BUMPER,RADIATOR
€ 35.00
27
0911905014
ref: 27
BOLT
€ 2.50
28
0831000053
ref: 28
08310-0005A
NUT
€ 2.50
29
1779538A00
ref: 29
CUSHION,RADIATOR BUMPER
€ 3.00
30
1791138A00
ref: 30
TANK,RESERVOIR
€ 23.00
31
1798138A01
ref: 31
HOSE,RESERVE TANK INLET
€ 7.00
32
1798238810
ref: 32
HOSE,RESERVOIR TANK OUTLET
€ 16.00
33
0940108411
ref: 33
CLIP
€ 3.00
34
0940714403
ref: 34
CLAMP(L:125)
€ 2.50
