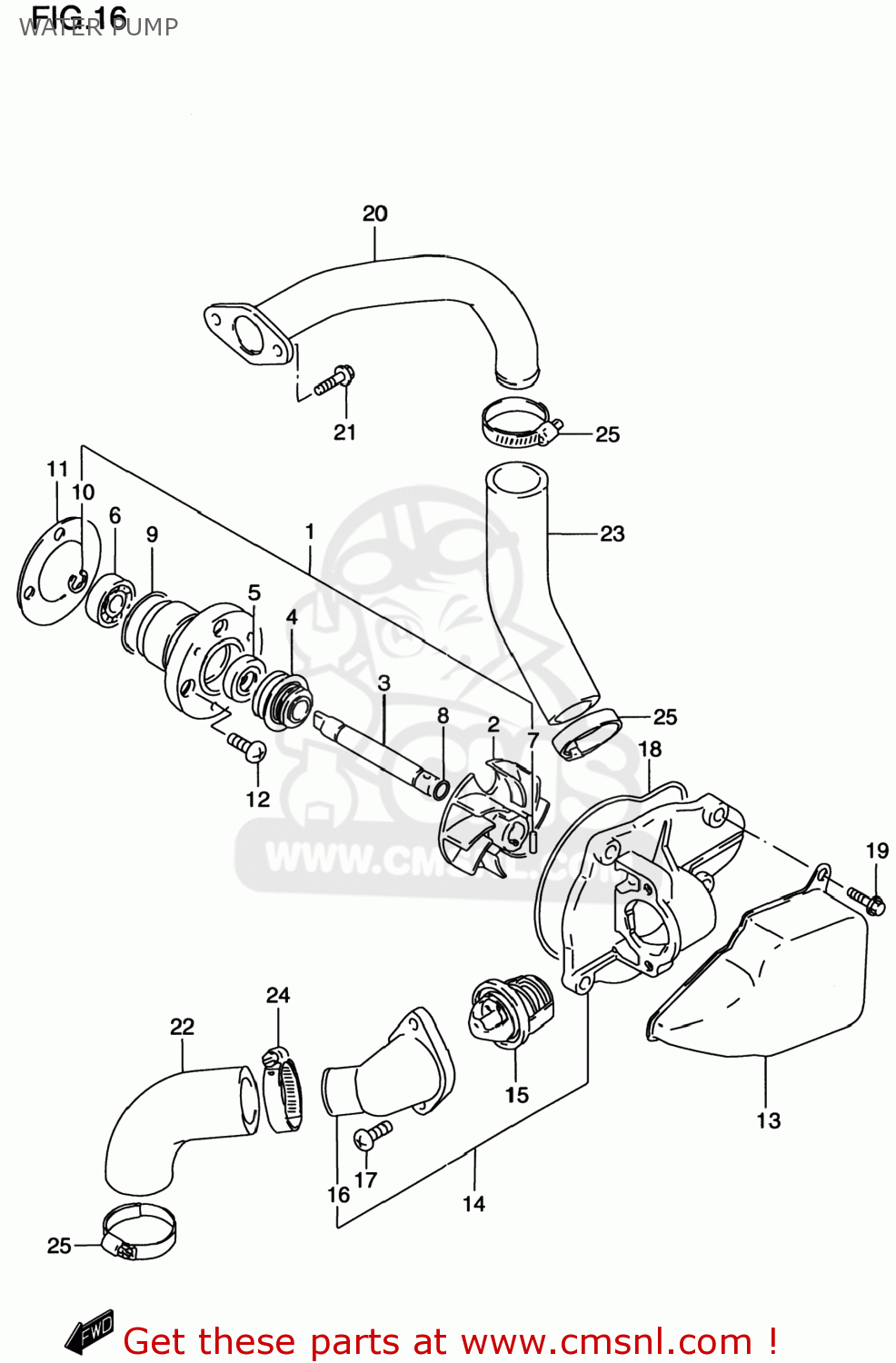

WATER PUMP

ref

part #

description

quantity

1

1740038A02
ref: 1
17400-38A10

PUMP ASSEMBLY,WATER

€ 133.50

2

1749138A00
ref: 2

IMPELLER

€ 12.50

3

1751138A00
ref: 3

SHAFT

€ 30.50

4-1

1747046A00
ref: 4-1
17470-02F00

SEAL,MECHANICAL

€ 21.50

4-2

1747046A01
ref: 4-2
17470-02F00

SEAL,MECHANICAL

€ 21.50

5

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

6

0926210004
ref: 6

BEARING(10X22X6)

€ 20.50

7

1751638A00
ref: 7

PIN

€ 4.00

8

1751538A00
ref: 8

O RING

€ 1.50

9

1741738A00
ref: 9

O RING

€ 2.50

10

0833211086
ref: 10
08332-1108A

E RING

€ 2.00

11

1743138A10
ref: 11

GASKET,WATER PUMP (NAS)

€ 5.00

12

0211206123
ref: 12
02112-0612A

SCREW

€ 1.50

13

1744138A02
ref: 13

COVER,WATER PUMP

€ 19.00

14

1741038A00
ref: 14

CASE ASSY,WATER PUMP

€ 166.50

15

1767033410
ref: 15

THERMOSTAT,WATER

€ 37.00

16

1741245C00
ref: 16

CONNECTOR

€ 47.00

17

0211206167
ref: 17

SCREW

€ 2.50

18

1743538A00
ref: 18

O RING,WATER PUMP CAP

€ 5.00

19

0154706207
ref: 19

BOLT

€ 2.50

20

1789038A00
ref: 20

PIPE,CYLINDER INLET

€ 45.50

21

0154706163
ref: 21
01547-0616B

BOLT

€ 2.50

22

1785738A02
ref: 22

HOSE,WATER PUMP IN

€ 16.50

23

1785838820
ref: 23

HOSE,WATER PUMP OUTLET

€ 16.50

24

0940230501
ref: 24
09402-32511

CLAMP

€ 11.50

25

0940232511
ref: 25

CLAMP

€ 11.50

all assemblies
