FRAME (MODEL W/X)
VS800GL INTRUDER 2000 (Y) USA (E03)

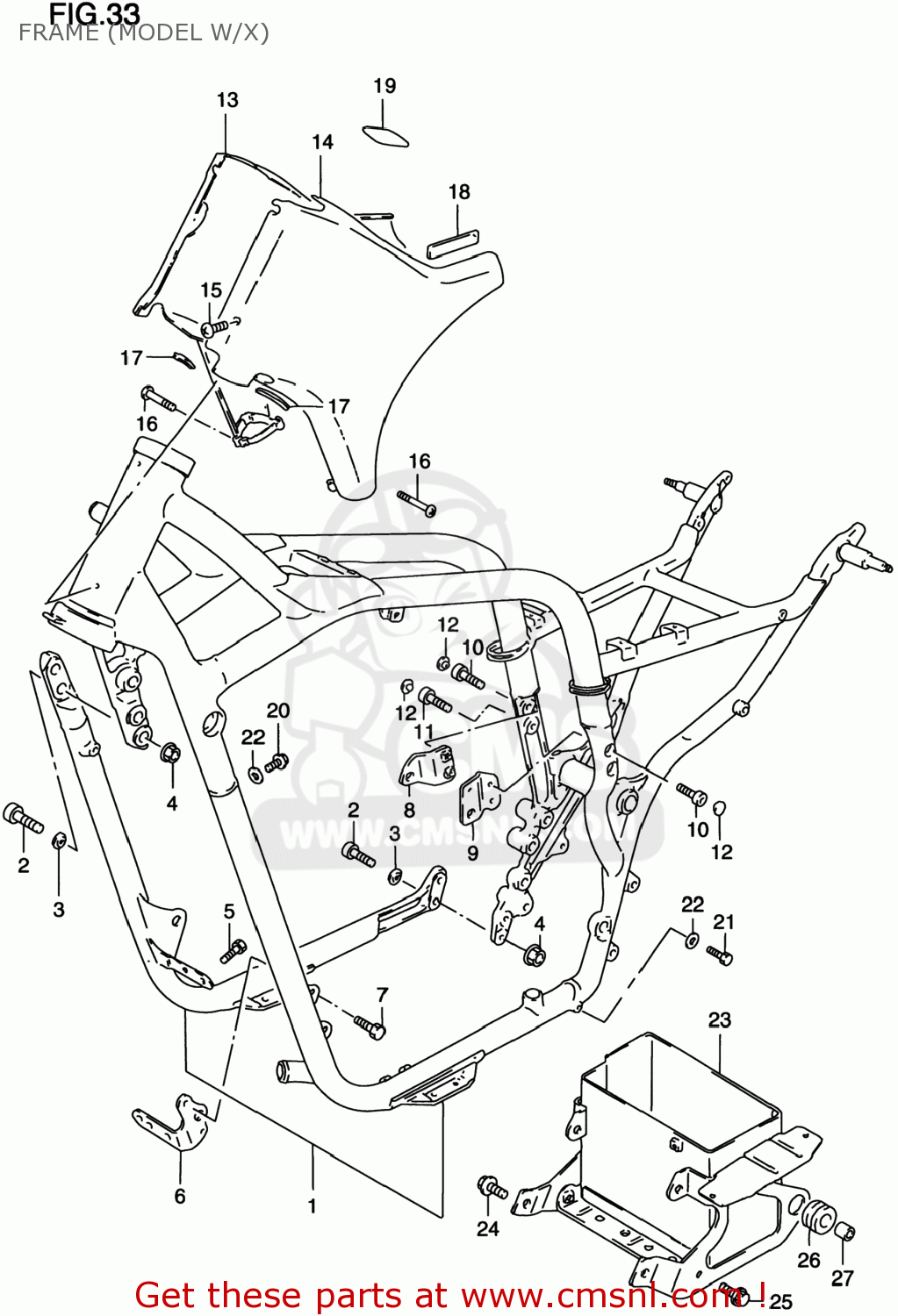

Frame (model w/x) diagram VS800GL INTRUDER 2000 (Y) USA (E03)
FRAME (MODEL W/X) VS800GL INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411013981319A
ref: 1-1
FRAME SET(RED)
€ 959.00
1-2
4110139813Y98
ref: 1-2
FRAME SET (GREEN)
€ 940.50
1-3
4110139813Y4M
ref: 1-3
FRAME SET(MAROON)
€ 959.00
1-4
4110139813Y7H
ref: 1-4
FRAME SET
€ 940.50
2
0910610019
ref: 2
BOLT(10X33)
€ 4.00
3
0916410010
ref: 3
WASHER
€ 6.50
4
0831931103
ref: 4
08319-3110A
NUT
€ 3.00
5
0155008203
ref: 5
01550-0820A
BOLT
€ 3.00
6
4192038A00019
ref: 6
PLATE,ENGINE MOUNT NO.1,L
€ 11.00
7
0157008163
ref: 7
01570-0816A
BOLT, UPPER
€ 2.00
8
4195038A11019
ref: 8
PLATE,ENGINE MOUNT NO.3,R
€ 32.50
9
4196038A10019
ref: 9
PLATE,ENGINE MOUNT NO.3,L
€ 26.50
10
0910608070
ref: 10
BOLT(8X30)
€ 5.50
11
0713008303
ref: 11
07130-0830A
BOLT
€ 3.00
12
0925006004
ref: 12
CAP(OD:14.5)
€ 1.50
13-1
4735038A0119A
ref: 13-1
COVER,FRAME HEAD,RIGHT
€ 269.00
13-2
4735038A01Y98
ref: 13-2
COVER,FRAME HEAD,R(GREEN)
€ 108.00
13-3
4735038A01Y4M
ref: 13-3
COVER COMP,FRAME HEAD
€ 129.50
13-4
4735038A01Y7H
ref: 13-4
COVER,FRAME HEAD,R(BLUE)
€ 107.50
14-1
4736038A0119A
ref: 14-1
COVER,FRAME HEAD,LEFT
€ 267.00
14-2
4736038A01Y98
ref: 14-2
COVER,FRAME HEAD,L(GREEN)
€ 120.50
14-3
4736038A01Y4M
ref: 14-3
COVER COMP,FRAME HEAD
€ 131.50
14-4
4736038A01Y7H
ref: 14-4
COVER COMP,FRAME HEAD
€ 267.00
15
0214206103
ref: 15
02142-0610A
SCREW 6X10
€ 2.00
16
0211204253
ref: 16
02112-0425B
SCREW
€ 2.00
17
6824138A10
ref: 17
68241-04X50-300
MOLDING,FUEL TANK
€ 6.00
18
3365207D00
ref: 18
PROTECTOR(80X80X2)
€ 4.50
19
4735838A00
ref: 19
TAPE,FRAME HEAD COVER
€ 7.00
20
0936006015
ref: 20
09360-06015-XC0
UNION
€ 3.00
21
0155006103
ref: 21
01550-0610A
BOLT
€ 2.50
22
0916806004
ref: 22
GASKET(6.2X11X1).2 (NAS)
€ 1.50
23
4154038A12
ref: 23
HOLDER,BATTERY
€ 103.50
24
0155010163
ref: 24
01550-1016A
BOLT
€ 2.50
25
0155006163
ref: 25
01550-0616A
BOLT
€ 2.50
26
0932012031
ref: 26
CUSHION
€ 3.00
27
0930108009
ref: 27
BUSH
€ 6.50
