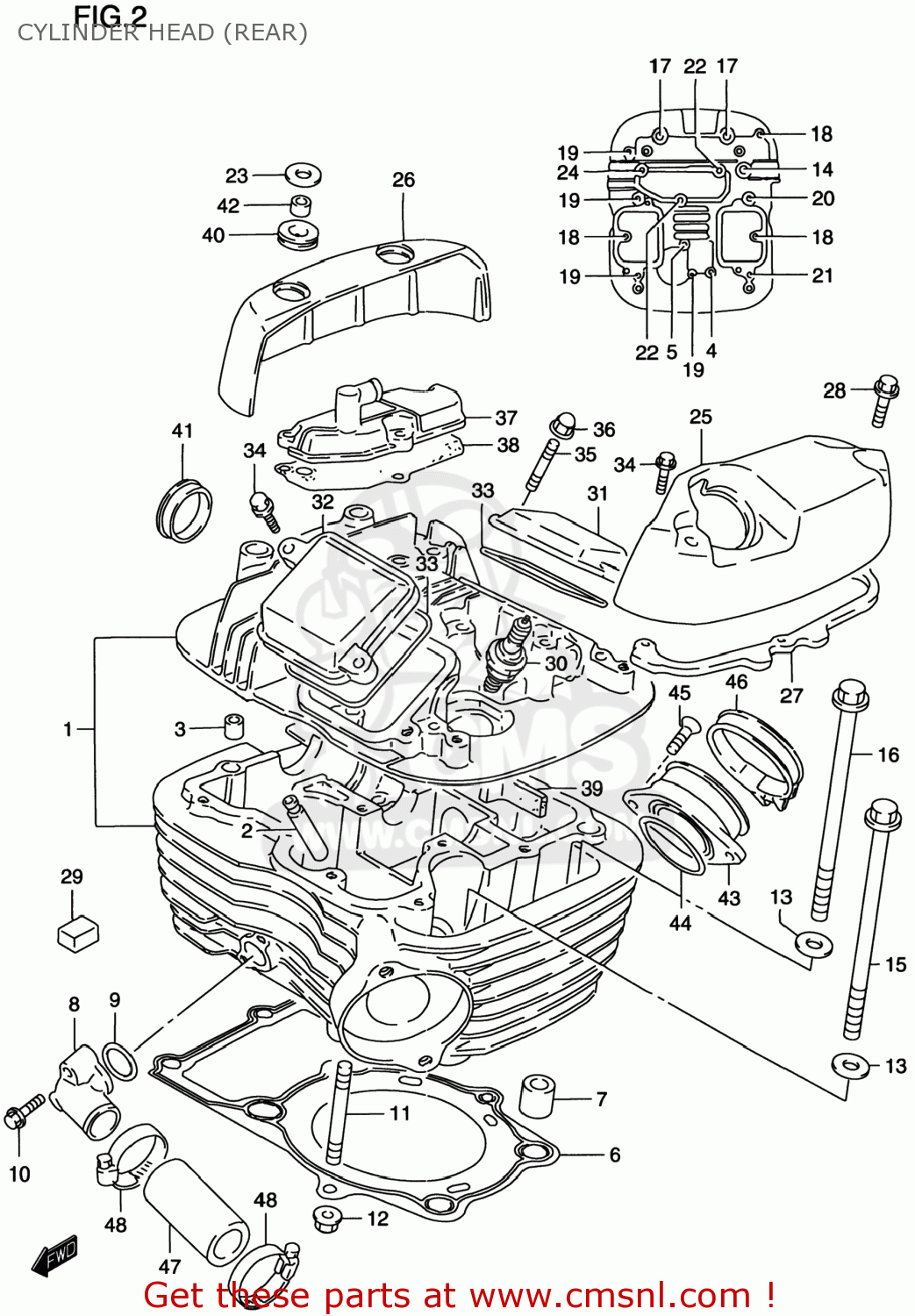

CYLINDER HEAD (REAR)

ref

part #

description

quantity

1-1

1110338A02
ref: 1-1

HEAD ASSY,CYLINDER RR

€ 619.50

1-2

1110339A20
ref: 1-2

HEAD ASSY,CYLINDER RR

€ 834.50

2

1111538A71
ref: 2
11115-41F70

GUIDE,VALVE

€ 18.50

3

0920611004
ref: 3

PIN(8.4X11X14)

€ 6.00

4

0910306101
ref: 4

BOLT(6X50)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.50

6

1114245C00
ref: 6

GASKET,CYLINDER HEAD RR (NAS)

€ 54.00

7

0421113189
ref: 7

PIN

€ 2.50

8

1116945C10
ref: 8

UNION,CYLINDER HEAD WATER

€ 28.50

9

0928018004
ref: 9

O RING(D:2.4,ID:17.8)

€ 5.50

10

0154706253
ref: 10
01547-0625B

SCREW

€ 2.50

11

0910808144
ref: 11

BOLT,STUD

€ 4.50

12-1

0831610087
ref: 12-1

NUT

€ 2.50

12-2

0831610083
ref: 12-2
08316-1008B

NUT

€ 3.00

13

0916010060
ref: 13
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

14

0910308040
ref: 14

BOLT(8X140)

€ 4.00

15

0910310133
ref: 15

BOLT(10X155)

€ 7.50

16

0910310134
ref: 16

BOLT(10X165)

€ 7.50

17

0910308180
ref: 17

BOLT(8X245)

€ 13.00

18-1

0155006257
ref: 18-1

BOLT

€ 2.50

18-2

0155006253
ref: 18-2
01550-0625A

BOLT

€ 2.50

19-1

0155006307
ref: 19-1

BOLT

€ 2.00

19-2

0155006303
ref: 19-2
01550-0630A

BOLT

€ 2.50

20-1

0712006307
ref: 20-1

BOLT

€ 2.50

20-2

0712006303
ref: 20-2
07120-0630B

BOLT

€ 3.00

21-1

0155006407
ref: 21-1

BOLT

€ 2.50

21-2

0155006403
ref: 21-2
01550-0640A

BOLT

€ 2.00

22

0910306102
ref: 22

BOLT(6X55)

€ 2.50

23

0916008130
ref: 23

WASHER(8.5X24X1.6)

€ 2.00

24-1

0155006207
ref: 24-1

BOLT

€ 2.50

24-2

0155006203
ref: 24-2
01550-0620A

BOLT

€ 2.50

25

1117338A03
ref: 25

CAP,CYLINDER HEAD COVER RR,L

€ 68.50

26

1117438A02
ref: 26

CAP,CYLINDER HEAD COVER RR,R

€ 75.00

27

1127338A01
ref: 27

CUSHION,RR,L CAP

€ 10.50

28-1

0121406357
ref: 28-1
01244-06357

BOLT

€ 3.00

28-2

0124406357
ref: 28-2

BOLT

€ 3.00

29

1115238A00
ref: 29

PAD

€ 3.50

30-1

0948200334
ref: 30-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

30-2

0948200335111
ref: 30-2
09482-00335

SPARK PLUG X24EPR-U9

€ 4.00

30-3

0948200354
ref: 30-3

PLUG,SPARK(DPR7EA-9)

€ 4.00

30-4

0948200355111
ref: 30-4
09482-00354

SPARK PLUG X22EPR-U9

€ 4.00

30-5

0948200330
ref: 30-5

PLUG,SPARK(DPR9EA-9)

€ 4.00

30-6

0948200331111
ref: 30-6
09482-00331

SPARK PLUG X27EPR-U9

€ 4.00

31

1117538A11
ref: 31

CAP,INSPECTION INTAKE

€ 14.50

32

1117638A11
ref: 32

CAP,INSPECTION EXHAUST

€ 14.50

33

1117738A00
ref: 33

GASKET,INSPECTION CAP (NAS)

€ 5.00

34-1

0154706207
ref: 34-1

BOLT

€ 2.50

34-2

0154706203
ref: 34-2
01547-0620B

SCREW

€ 2.50

35-1

0142106168
ref: 35-1
01421-0616A

STUD 6X16

€ 2.00

35-2

0910806102
ref: 35-2

BOLT,STUD

€ 3.00

36-1

0831320067
ref: 36-1

NUT

€ 2.00

36-2

0831320063
ref: 36-2
08313-2006A

NUT

€ 2.00

37

1118638A02
ref: 37

COVER,BREATHER

€ 13.50

38

1118738A02H17
ref: 38

GASKET,BREATHER COVER (NAS)

€ 12.00

39

1117938A00
ref: 39

PLATE,HEAD COVER RR

€ 7.50

40

0932013015
ref: 40

CUSHION

€ 3.00

41

0924130004
ref: 41

PLUG(OD:30)

€ 6.50

42

0930108007
ref: 42

BUSH

€ 4.00

43

1312045C01
ref: 43
13102-45C00

PIPE,INTAKE,REAR

€ 40.50

44

0928040010
ref: 44

O RING(D:2.4,ID:39.7)

€ 3.50

45

0212206203
ref: 45
02122-0620A

SCREW

€ 2.00

46

0940252501
ref: 46

CLAMP

€ 9.00

47

1785438A00
ref: 47

HOSE,CYLINDER HEAD JOINT

€ 8.50

48

0940228511
ref: 48

CLAMP

€ 8.50
