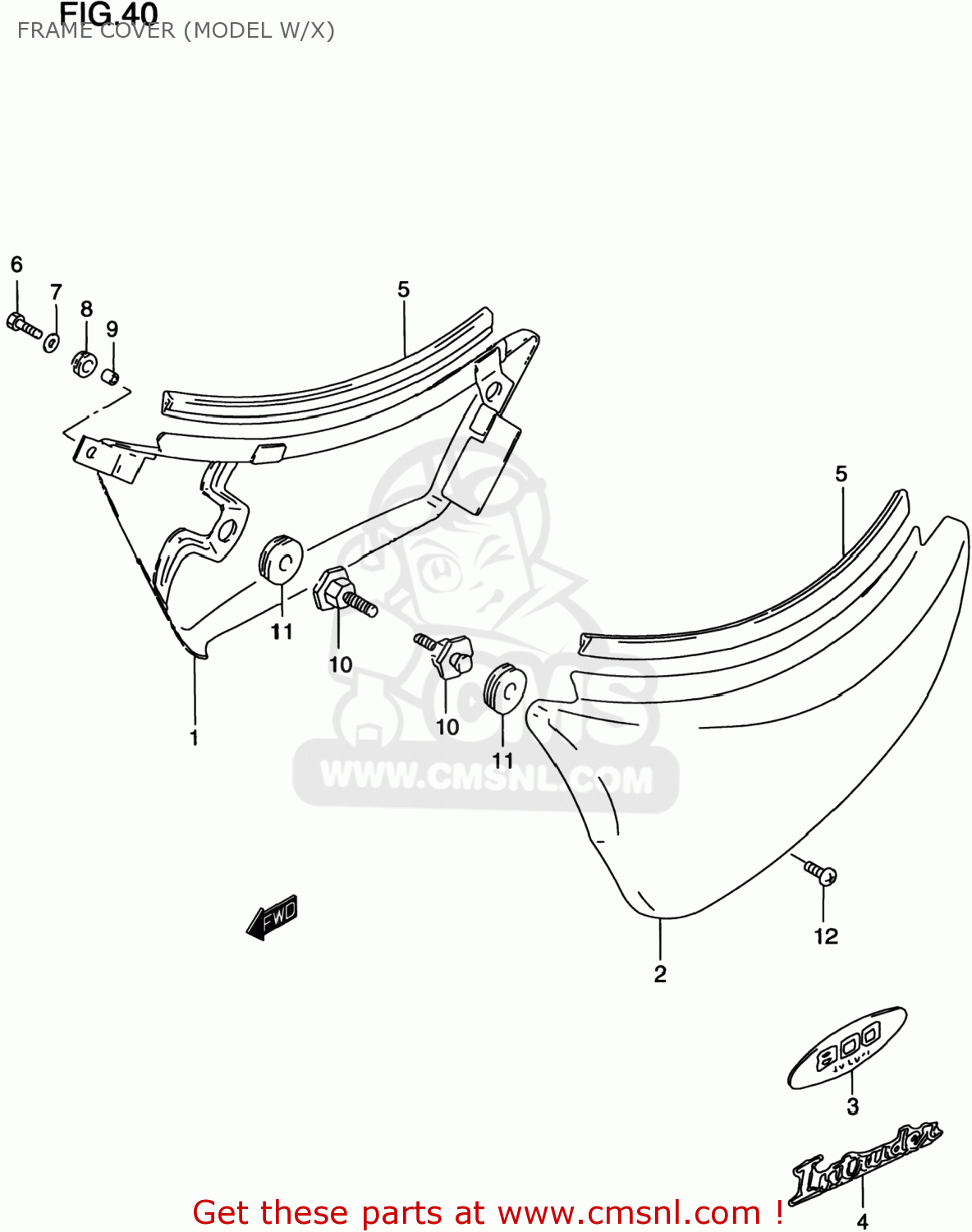

FRAME COVER (MODEL W/X)

ref

part #

description

quantity

1-1

4711038A0019A
ref: 1-1

COVER,FRAME,R(RED)

€ 112.50

1-2

4711038A00Y98
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 119.50

1-3

4711038A00Y4M
ref: 1-3

COVER,FRAME,R(MAROON)

€ 245.00

1-4

4711038A00Y7H
ref: 1-4

COVER COMP,FRAME,RIGHT

€ 106.50

2-1

4721038A0019A
ref: 2-1

COVER,FRAME,L(RED)

€ 259.00

2-2

4721038A00Y98
ref: 2-2

COVER,FRAME,L(GREEN)

€ 99.50

2-3

4721038A00Y4M
ref: 2-3

COVER,FRAME,L(MAROON)

€ 481.50

2-4

4721038A00Y7H
ref: 2-4

COVER,FRAME,L(BLUE)

€ 101.00

3

6813138E00
ref: 3

EMBLEM,FRAME COVER

€ 28.50

4

6813138E10YA1
ref: 4

EMBLEM,FRAME COVER

€ 29.50

5

6824104X50300
ref: 5

MOLDING

€ 6.00

6

0155006167
ref: 6

BOLT

€ 1.50

7

0916006084
ref: 7

WASHER(6.5X18X1.6)

€ 2.00

8

0932006017
ref: 8

CUSHION

€ 3.00

9

0918006246
ref: 9

SPACER(6.1X8X5.2)

€ 2.50

10

4725038A01
ref: 10

BOSS,FRAME COVER

€ 6.50

11

0932008013
ref: 11

CUSHION

€ 4.00

12

0214206103
ref: 12
02142-0610A

SCREW 6X10

€ 2.00
