HANDLE SWITCH

VS800GL INTRUDER 2000 (Y) USA (E03)

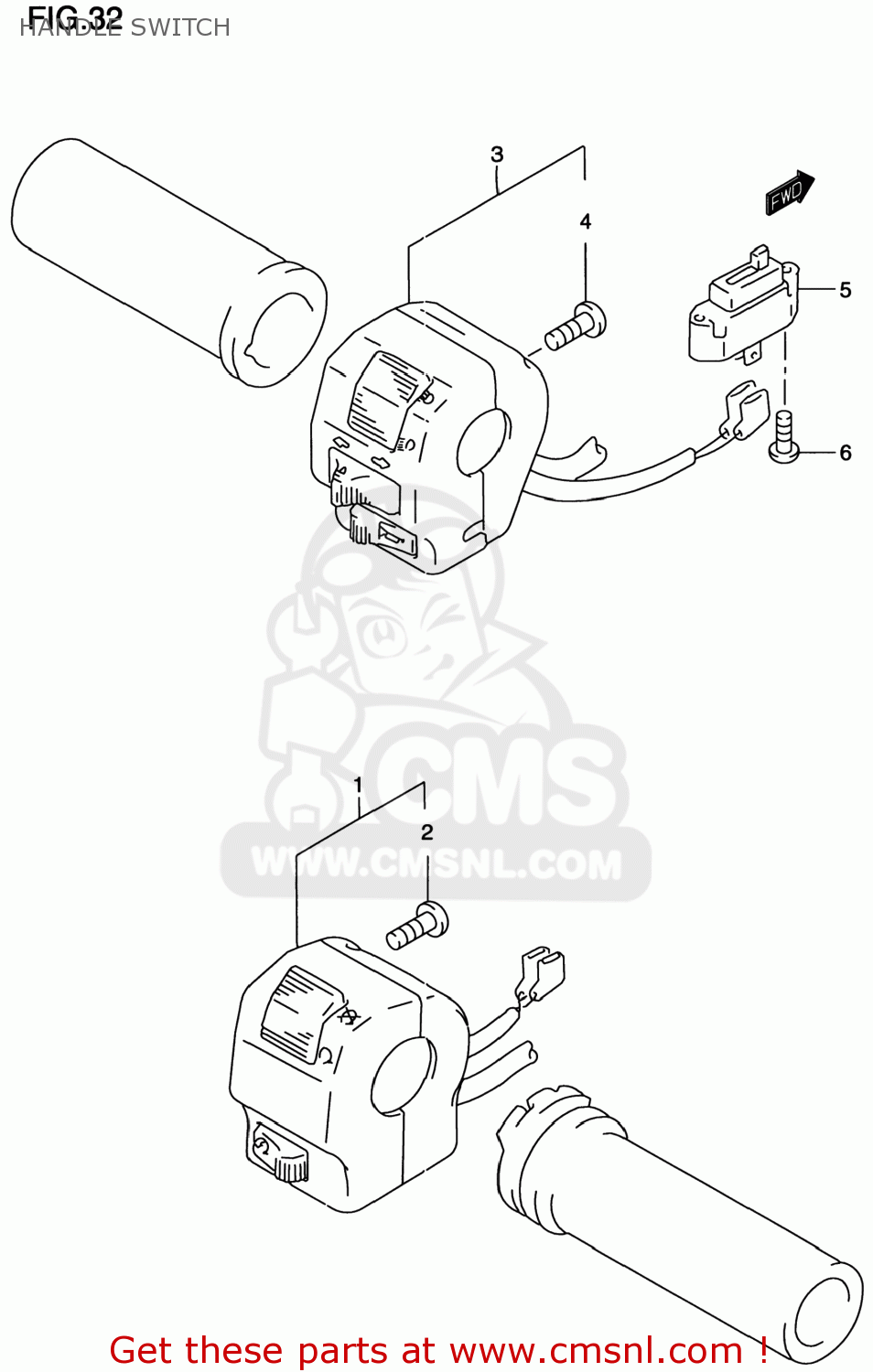

Handle switch diagram VS800GL INTRUDER 2000 (Y) USA (E03)

HANDLE SWITCH VS800GL INTRUDER 2000 (Y) USA (E03)

HANDLE SWITCH VS800GL INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720039AD0
ref: 1

SWITCH ASSY,HANDLE,R

€ 0.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740039AC0
ref: 3

SWITCH ASSY,HANDLE,L

€ 179.00

4

0211205167
ref: 4

SCREW

€ 2.50

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

0214203127
ref: 6

SCREW

€ 2.00
