CONTROL CABLE

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

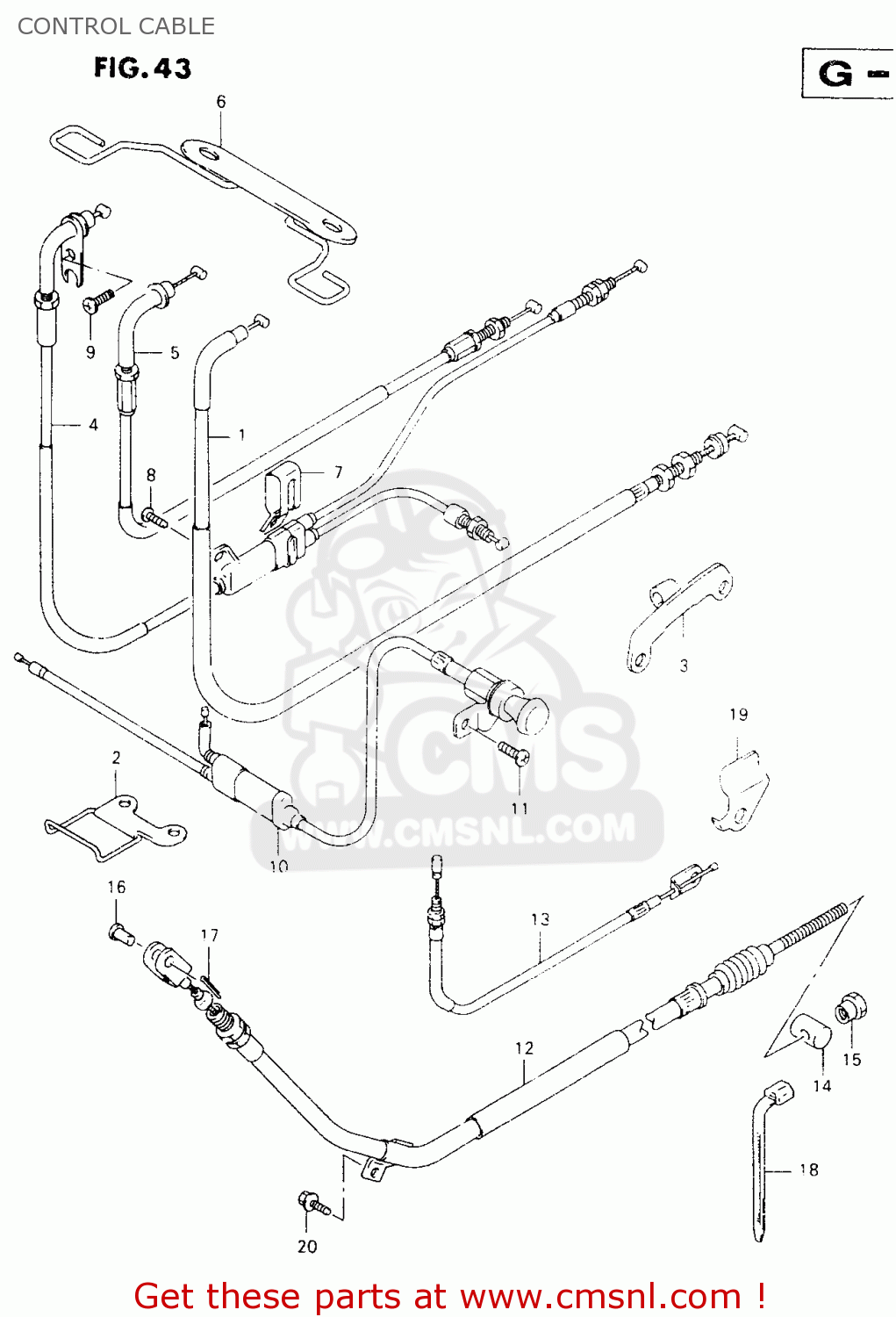

Control cable diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

5820048E00
ref: 1

CABLE ASSY,CLUTCH

€ 44.00

5862048E10
ref: 2

GUIDE,CLUTCH CABLE

€ 11.50

5863448E00
ref: 3

STOPPER,CLUTCH CABLE

€ 7.50

5830048E20
ref: 4

CABLE ASSEMBLY,THROTTLE

€ 80.00

5830048E30
ref: 5

CABLE ASSEMBLY,THROTTLE NO

€ 52.50

5862048E00
ref: 6

GUIDE,CABLE

€ 24.00

5862348E00
ref: 7

CLAMP,THROTTLE CABLE CONNECTOR

€ 6.00

0214205087
ref: 8

SCREW

€ 2.00

0211275123
ref: 9

SCREW

€ 2.50

5840048E00
ref: 10

CABLE ASSY,STARTER

€ 50.50

0913906051
ref: 11

SCREW(6X10)

€ 2.50

5851048E00
ref: 12

CABLE,RR BRAKE

€ 96.50

5883048E00
ref: 13

CABLE,STOP LAMP SWITCH

€ 31.00

0920913018
ref: 14

PIN(13X18)

€ 3.50

0915006014
ref: 15

NUT

€ 3.50

0920005001
ref: 16

PIN(L:17.5)

€ 1.50

0411120158
ref: 17

PIN

€ 1.50

0940714403
ref: 18

CLAMP(L:125)

€ 2.50

5872048E00
ref: 19

CLAMP,RR BRAKE CABLE

€ 5.50

0155006123
ref: 20

BOLT

€ 2.50
