HEADLAMP (E2,E24)

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

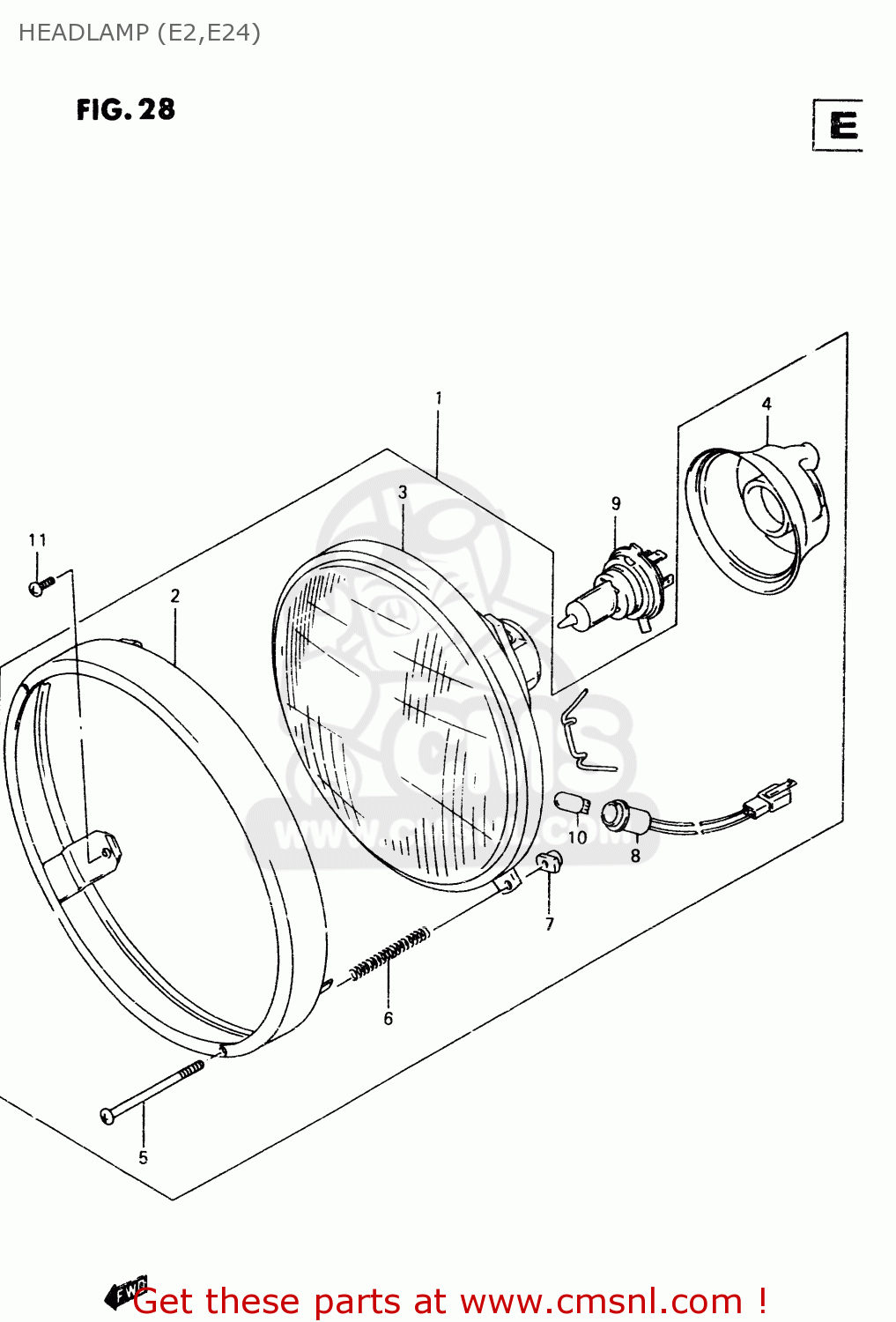

Headlamp (e2,e24) diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1-1

3510048E20999
ref: 1-1
E2

HEADLAMP ASSY

€ 196.00

1-2

3510048E00999
ref: 1-2
E24

HEADLAMP ASSY

€ 215.50

3511148E00
ref: 2

RIM ASSY

€ 108.00

3-1

3512148E20
ref: 3-1
E2

LAMP UNIT

€ 120.00

3-2

3512148E00
ref: 3-2
E24

LAMP UNIT

€ 106.50

3517320A01
ref: 4

COVER,SOCKET

€ 14.50

3515145900
ref: 5

SCREW

€ 4.00

3515431900
ref: 6

SPRING,ADJUSTING

€ 3.50

3515215611
ref: 7

NUT

€ 3.50

3611826D50
ref: 8
E2

SOCKET,PARKING LAMP

€ 19.00

0947112060
ref: 9

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 10
E2

BULB(12V4W)

€ 6.00

0912705013
ref: 11

SCREW(5X12)

€ 2.50
