SEAT

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

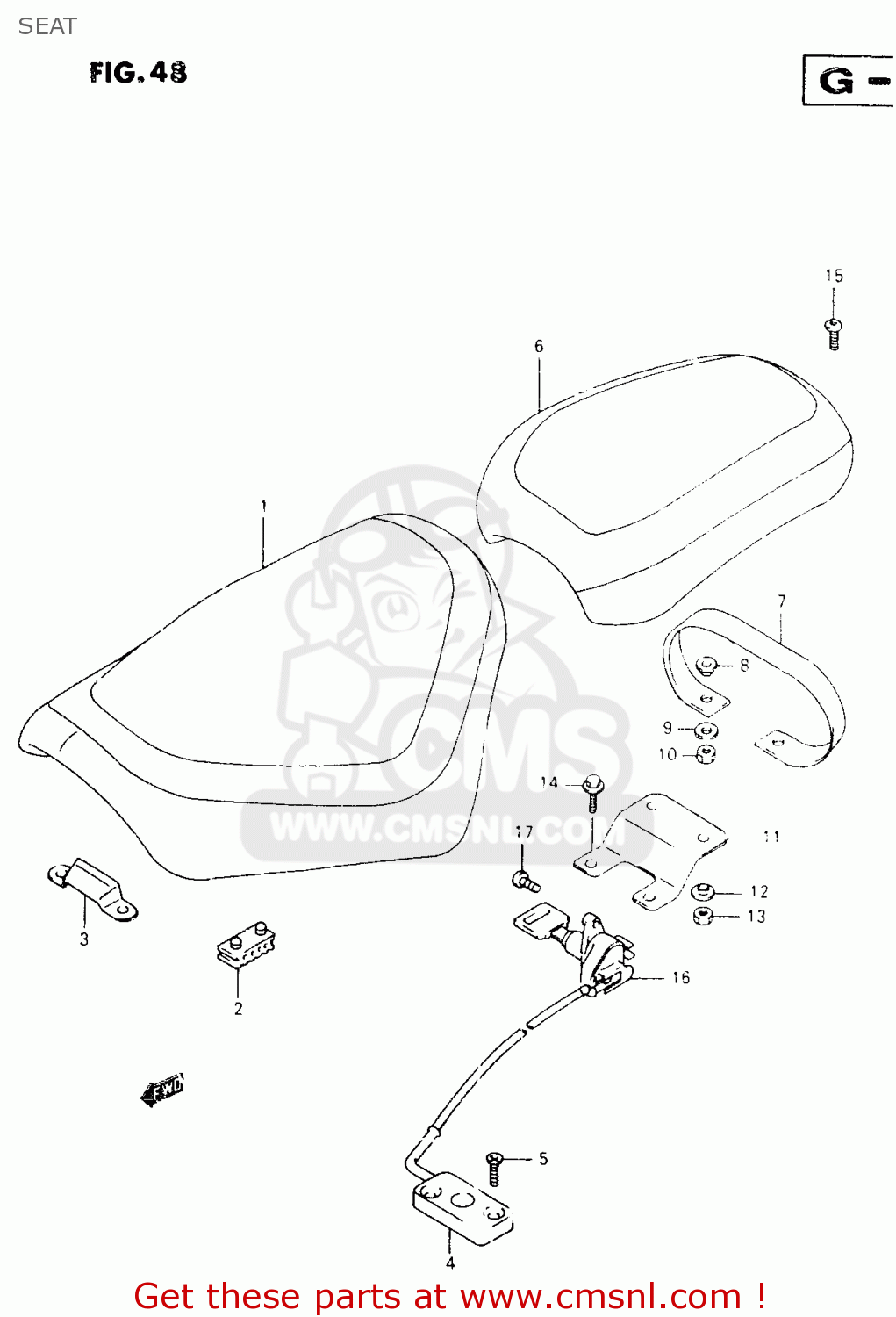

Seat diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

4510048E01H1N
ref: 1

SEAT ASSY

€ 193.00

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

4511948E00
ref: 3

PLATE,FR SEAT HOOK

€ 4.50

4522048E01
ref: 4

BRACKET,SEAT SUPPORT FR

€ 40.00

0212206253
ref: 5

SCREW

€ 2.00

4530048E10H1N
ref: 6

SEAT ASSY,PILLION

€ 152.00

4518048E10P21
ref: 7

BAND ASSY,SEAT

€ 32.50

0916906071
ref: 8

WASHER

€ 2.50

0916006084
ref: 9

WASHER(6.5X18X1.6)

€ 2.00

0831620063
ref: 10

NUT

€ 2.00

4511648E00
ref: 11

PLATE,PILLION SEAT

€ 9.50

0916906071
ref: 12

WASHER

€ 2.50

0831620063
ref: 13

NUT

€ 2.00

0155006123
ref: 14

BOLT

€ 2.50

0910608140
ref: 15

BOLT(8X16)

€ 6.00

9570012852
ref: 16

LOCK SET,SEAT

€ 110.50

0913906092
ref: 17

SCREW(6X14)

€ 3.50
