HEADLAMP (EXCEPT E2,E24)

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

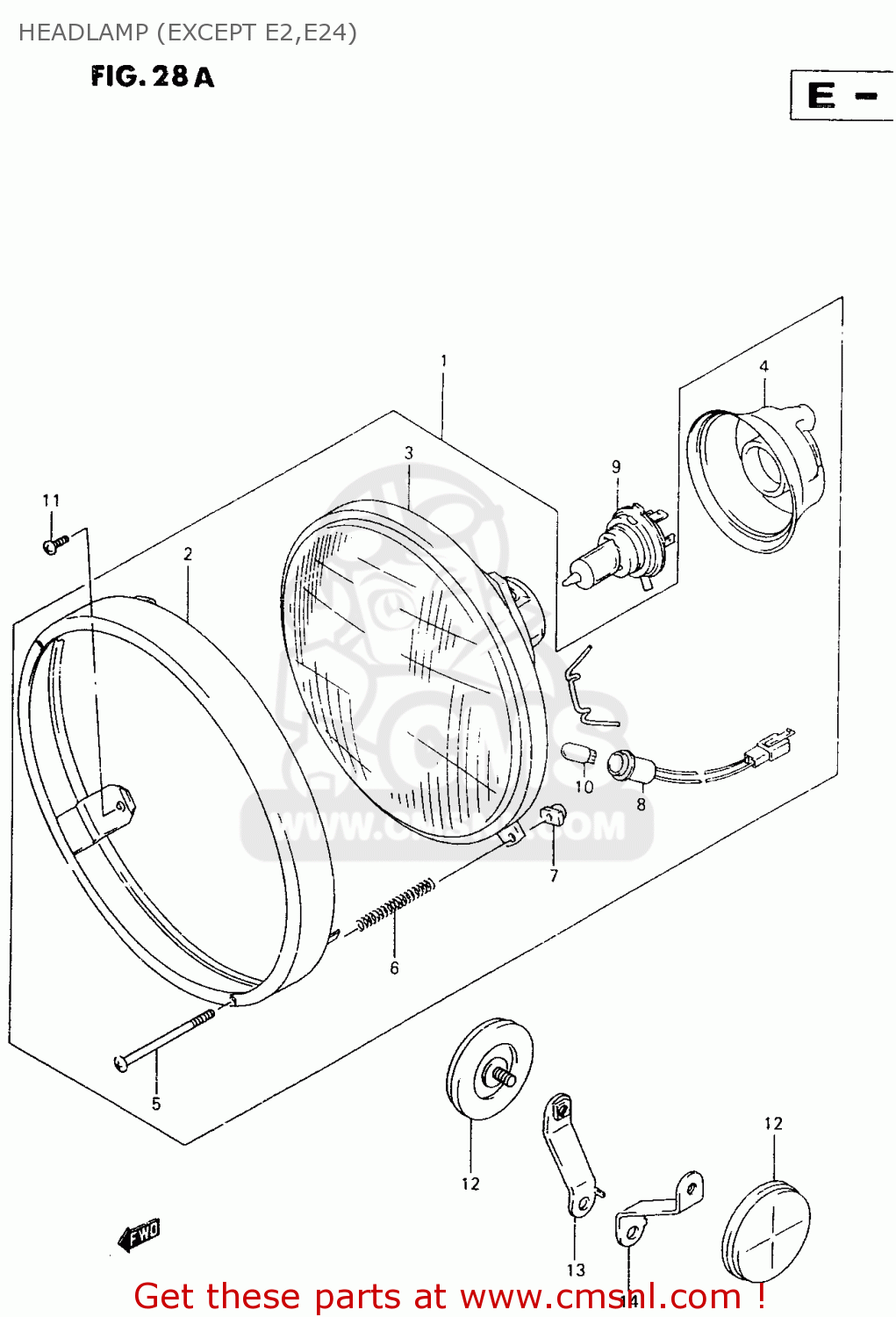

Headlamp (except e2,e24) diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

3510048E30999
ref: 1

HEADLAMP ASSY

€ 213.50

3511148E00
ref: 2

RIM ASSY

€ 108.00

3512148E30
ref: 3

LAMP UNIT

€ 120.00

3517320A01
ref: 4

COVER,SOCKET

€ 14.50

3515145900
ref: 5

SCREW

€ 4.00

3515431900
ref: 6

SPRING,ADJUSTING

€ 3.50

3515215611
ref: 7

NUT

€ 3.50

3611826D50
ref: 8

SOCKET,PARKING LAMP

€ 19.00

0947112060
ref: 9

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 10

BULB(12V4W)

€ 6.00

0912705013
ref: 11

SCREW(5X12)

€ 2.50

3595014A00
ref: 12
E18

REFLECTOR,REFLEX FR

€ 15.00

3595648E00
ref: 13
E18

BRACKET,FR SIDE RR,R

€ 5.50

3595748E00
ref: 14
E18

BRACKET,FR SIDE RR,L

€ 0.00
