REAR SWINGING ARM

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

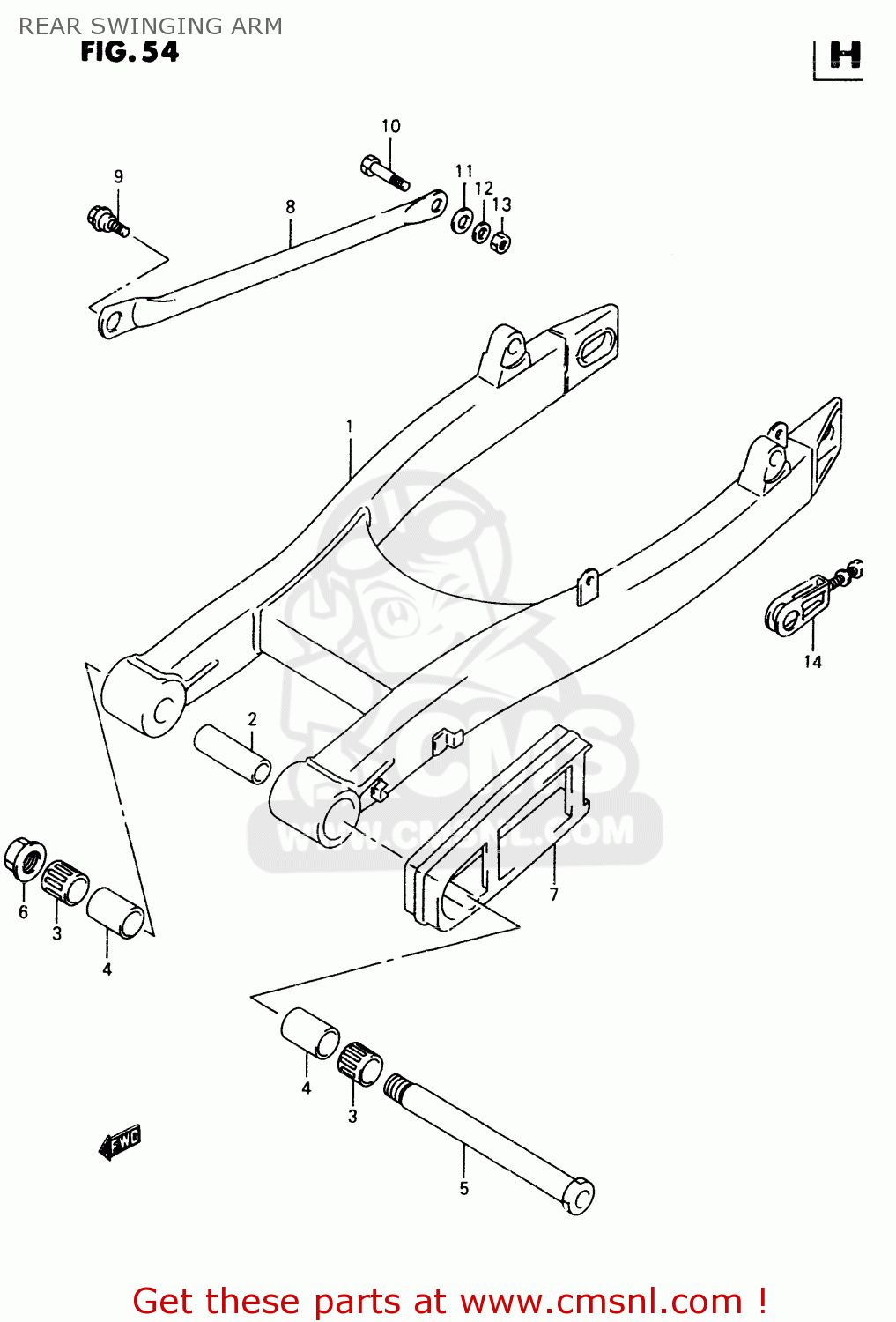

Rear swinging arm diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1-1

6110048E01019
ref: 1-1
MODEL V

SWING ARM,REAR (BLACK)

€ 677.00

1-2

6110048E02019
ref: 1-2
MODEL W

SWINGINGARM,RR

€ 677.00

6128248E00
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 15.00

0926325059
ref: 3

BEARING(25X33X35)

€ 35.00

6125121E00
ref: 4

SPACER,RR SWGARM PIVOT

€ 8.50

6121145C01
ref: 5

SHAFT,RR SWINGINGARM PIVOT

€ 54.50

0831931188
ref: 6

NUT ,18MM

€ 17.50

6127348E00
ref: 7

BUFFER,CHAIN TOUCH DEFENSE

€ 21.50

6431048E00
ref: 8

TORQUE LINK,RR

€ 26.50

0911110056
ref: 9

BOLT(10X30)

€ 7.00

0911110057
ref: 10

BOLT(10X41)

€ 4.00

0932012501
ref: 11

CUSHION

€ 5.50

0916010085
ref: 12

WASHER (10X20X2.3)

€ 2.00

0915910027
ref: 13

NUT

€ 3.00

6140019D90
ref: 14

ADJUSTER ASSY,CHAIN

€ 105.00

REAR SWINGING ARM
