REAR COMBINATION LAMP

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

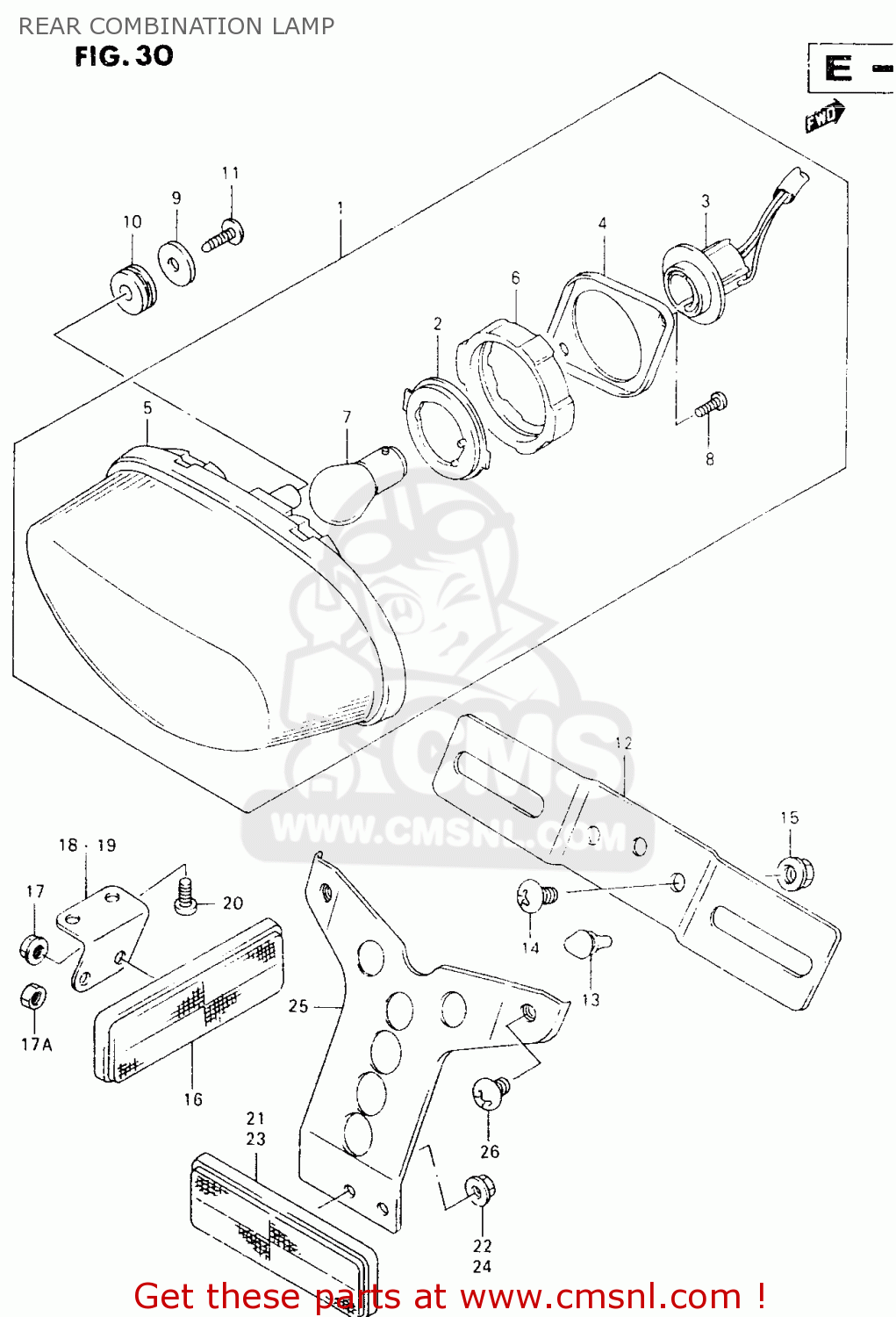

Rear combination lamp diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

REAR COMBINATION LAMP VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
REAR COMBINATION LAMP VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
REAR COMBINATION LAMP VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
3571042E10
ref: 1
LAMP ASSY,REAR
€ 270.50
2
3571648B21
ref: 2
PLATE NO.1
3571648B21
€ 25.00
3
3571842E10
ref: 3
SOCKET & CORD
3571842E10
€ 56.50
4
3573648B21
ref: 4
PLATE NO.2
€ 16.50
5
3574042E10
ref: 5
LAMP UNIT
€ 92.00
6
3576542E00
ref: 6
CUSHION
€ 10.50
7
0947112083
ref: 7
BULB(12V21/5W)
0947112083
€ 6.00
8
0321104123
ref: 8
SCREW
0321104123
€ 1.50
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
0916005501
€ 2.00
10
0932010015
ref: 10
CUSHION
0932010015
€ 2.50
11
0354105123
ref: 11
SCREW
0354105123
€ 2.00
12
3592744110
ref: 12
PLATE,RR LICENSE
3592744110
€ 22.50
13
0932106023
ref: 13
CUSHION
0932106023
€ 2.00
14
0214206123
ref: 14
SCREW 6X12
0214206123
€ 2.00
15
0831610063
ref: 15
NUT
0831610063
€ 2.50
16
3595043431
ref: 16
E18
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
17
0831610053
ref: 17
MODEL V E18
NUT
0831610053
€ 2.50
17A
0831000053
ref: 17A
MODEL W E18
NUT
€ 2.50
18
3597438A20
ref: 18
E18
BRACKET,RR SIDE RR,L
€ 10.50
19
3597538A20
ref: 19
E18
BRACKET,RR SIDE RR,R
€ 10.50
20
0211206083
ref: 20
SCREW
0211206083
€ 1.50
21
3597024D60
ref: 21
E17,E18,E22,E25
REFLECTOR ASSY,RR
3597024D60
€ 19.50
22
0831620053
ref: 22
E17,E18,E22,E25
NUT
0831620053
€ 2.00
23
3597024D60
ref: 23
REFLECTOR ASSY,RR
3597024D60
€ 19.50
24
0831610053
ref: 24
NUT
0831610053
€ 2.50
25
3597448E00
ref: 25
BRACKET,RR REFLECTOR
3597448E00
€ 8.00
26
0214206123
ref: 26
SCREW 6X12
0214206123
€ 2.00
