ELECTRICAL

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

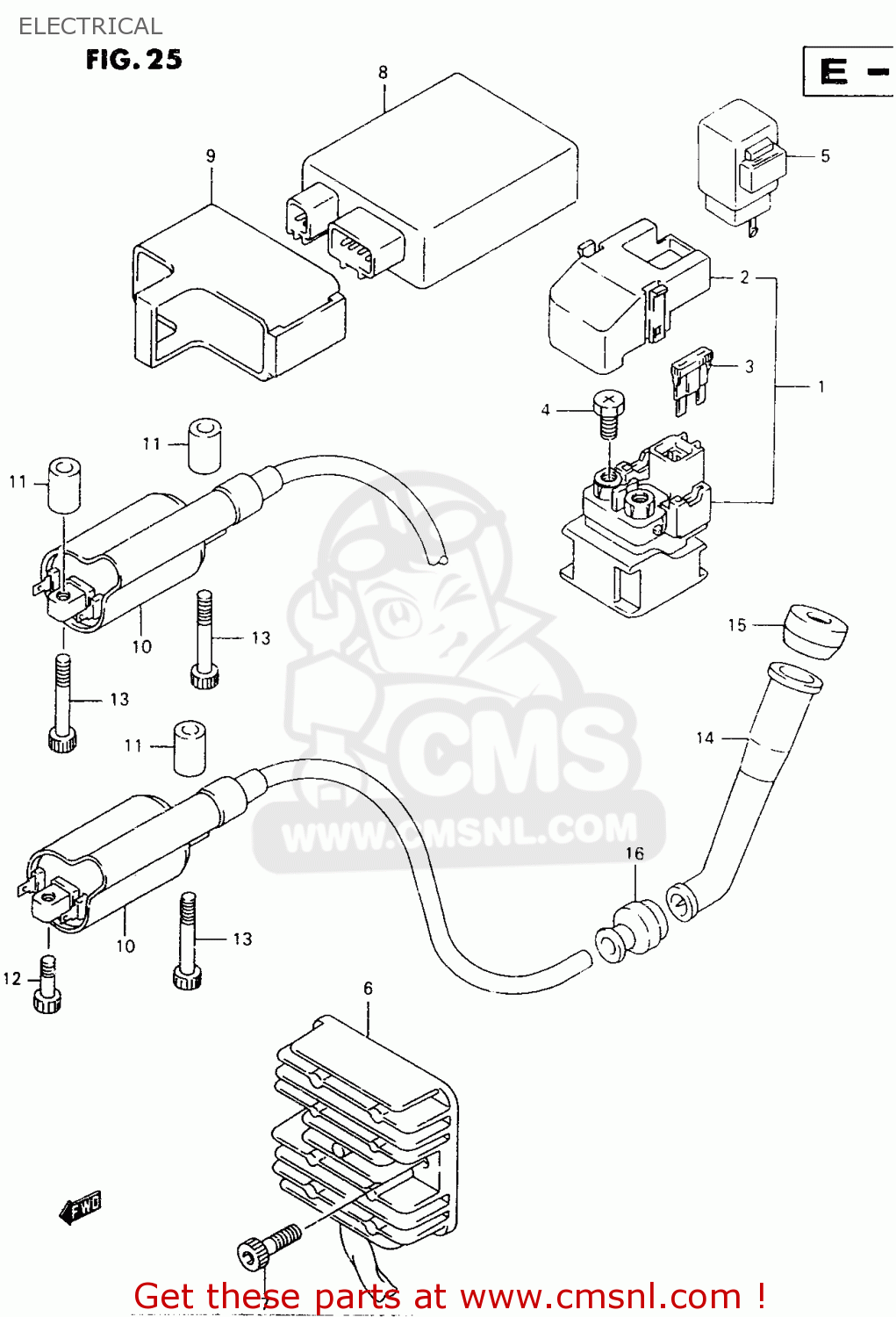

Electrical diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

3186121E20
ref: 2

COVER,RELAY ASSEMBLY

€ 10.50

0948130101
ref: 3

FUSE(30A)

€ 6.00

0912806013
ref: 4

SCREW(6X8)

€ 1.50

3189048E00
ref: 5

CONTROL UNIT,STG MOT RLY

€ 54.50

3280045C01
ref: 6

RECTIFIER ASSY

€ 268.50

0713006163
ref: 7

BOLT,OIL FILLE

€ 3.00

8-1

3290048E20
ref: 8-1

IGNITOR ASSY

€ 554.00

8-2

3290048E30
ref: 8-2
E18

IGNITOR ASSY

€ 765.00

3298040C01
ref: 9

CUSHION,IGNITOR

€ 9.50

3341048E00
ref: 10

COIL ASSY,IGNITION

€ 148.50

0918006198
ref: 11

SPACER(6.2X12X16)

€ 3.50

0713005163
ref: 12

BOLT

€ 2.00

0713005353
ref: 13

BOLT

€ 2.00

3351011410
ref: 14

CAP,SPARK PLUG

€ 24.50

3354124510
ref: 15

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 16

SEAL,HIGH TENSION CORD

€ 4.50
