Buy Suzuki VZ Parts Online


RADIATOR HOSE

VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

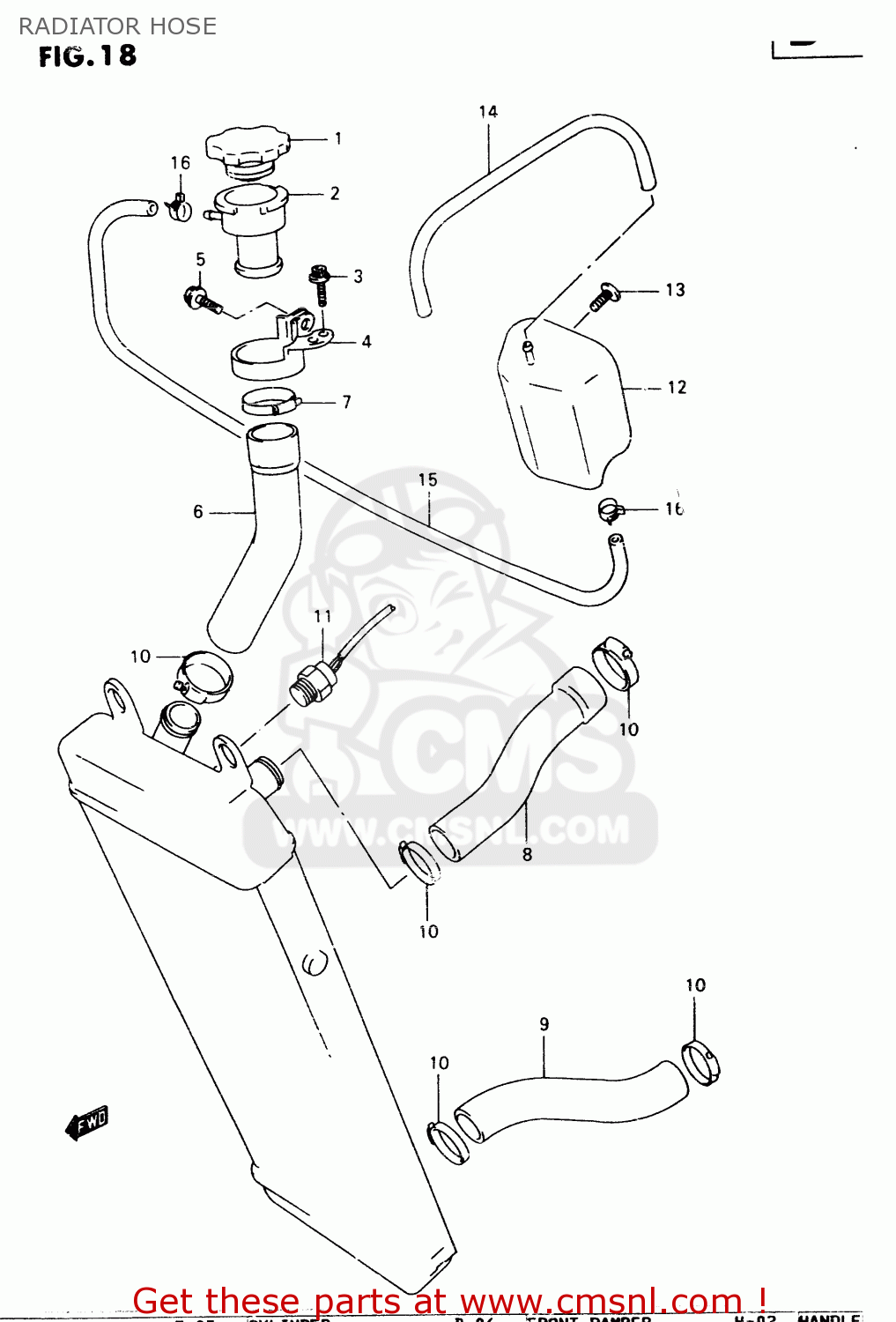

Radiator hose diagram VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

RADIATOR HOSE VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
RADIATOR HOSE VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
RADIATOR HOSE VZ800 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
1773019D00
ref: 1
CAP COMP,RADIATOR 1.1
1773019D00
€ 33.50
2
1779145C00
ref: 2
CONDUCTION,RADIATOR
1779145C00
€ 28.50
3
0712006163
ref: 3
BOLT MAGNETO S
0712006163
€ 2.50
4
1779348E00
ref: 4
BRACKET,CONDUCTION
€ 10.00
5
0155006203
ref: 5
BOLT
0155006203
€ 2.50
6
1785348E00
ref: 6
HOSE,CONDUCTION
1785348E00
€ 16.50
7
0940238511
ref: 7
CLAMP
0940238511
€ 10.50
8
1785148E00
ref: 8
HOSE,RADIATOR INLET
1785148E00
€ 18.00
9
1785248E00
ref: 9
HOSE,RADIATOR OUTLET
1785248E00
€ 21.00
10
0940232511
ref: 10
CLAMP
0940232511
€ 11.50
11-1
1768045D00
ref: 11-1
~E.NO.S506-101570
SWITCH COMP,RADIATOR FAN
1768045D00
€ 95.00
11-2
1768048E00
ref: 11-2
E.NO.S506-101571~
SWITCH,RADIATOR FAN
1768048E00
€ 95.00
11-3
1768048E00
ref: 11-3
MODEL V E18
SWITCH,RADIATOR FAN
1768048E00
€ 95.00
11-4
1768048E00
ref: 11-4
MODEL W
SWITCH,RADIATOR FAN
1768048E00
€ 95.00
12
1791148E00
ref: 12
TANK,RESERVOIR
1791148E00
€ 21.00
13
0214206123
ref: 13
SCREW 6X12
0214206123
€ 2.00
14
1798238810
ref: 14
HOSE,RESERVOIR TANK OUTLET
1798238810
€ 16.00
15
1798148E00
ref: 15
HOSE,RESERVOIR TANK INLET
€ 13.50
16
0940108411
ref: 16
CLIP
0940108411
€ 3.00
