CAM CHAIN

VZ800 MARAUDER 2002 (K2) USA (E03)

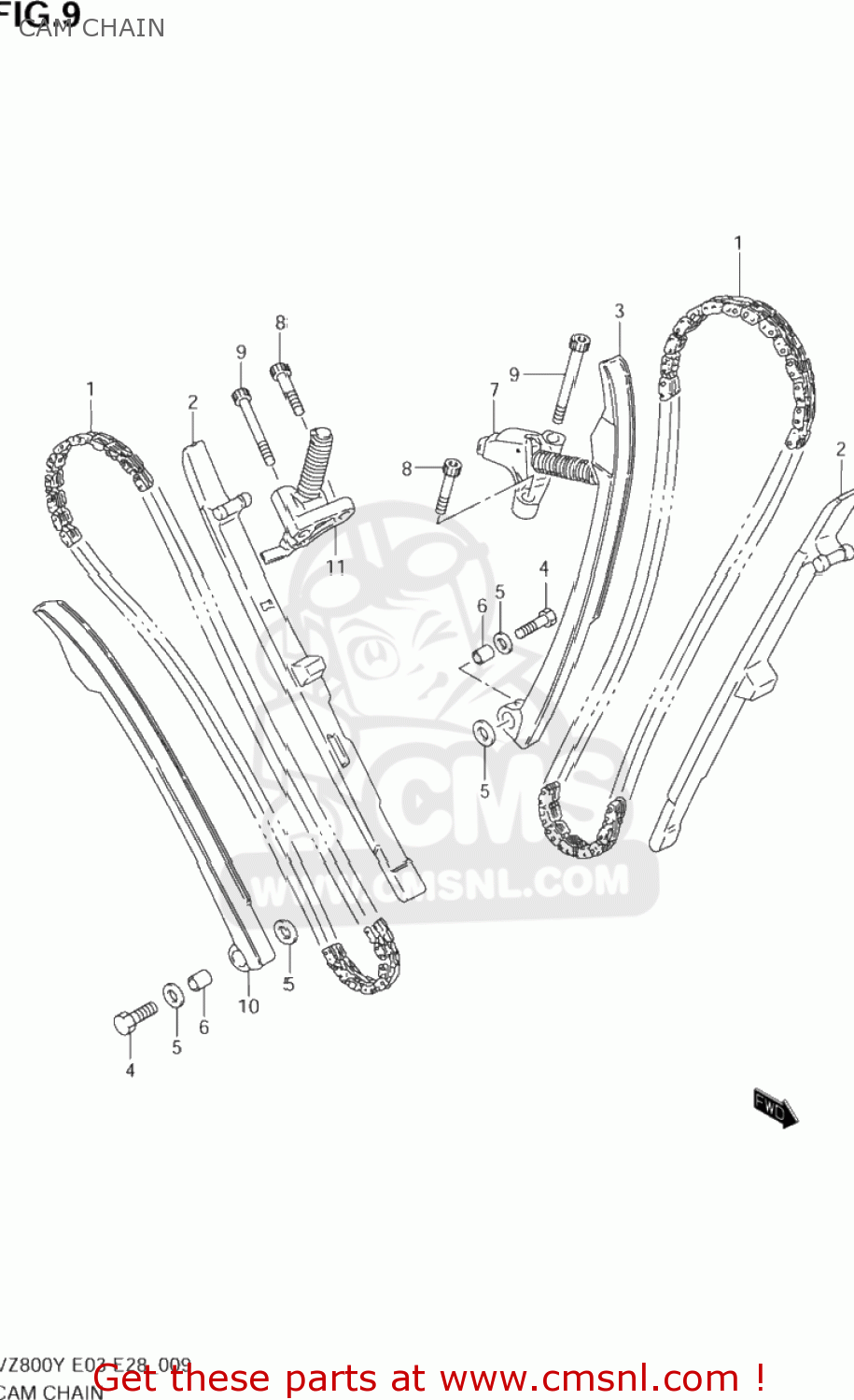

Cam chain diagram VZ800 MARAUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276038A11
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 155.00

1277138A02
ref: 2

GUIDE,CAM CHAIN

€ 39.00

1281138A01
ref: 3

TENSIONER,FR CAM CHAIN

€ 39.00

0910006129
ref: 4

BOLT(6X26)

€ 2.00

0821106182
ref: 5

WASHER

€ 2.00

0918006148
ref: 6

SPACER(6X11X11)

€ 3.50

1283138A00
ref: 7
12831-38A01

ADJUSTER ASSEMBLY,FRONT TENSIONER

€ 70.50

0713006203
ref: 8
07130-0620B

BOLT,CRKCASE,R

€ 3.00

0713006453
ref: 9
07130-0645B

BOLT

€ 2.50

1281638A01
ref: 10

TENSIONER,RR CAM CHAIN

€ 28.00

1283238A00
ref: 11
12832-38A01

ADJUSTER ASSEMBLY,REAR TENSIONER

€ 99.00
