FRONT WHEEL
VZ800 MARAUDER 2002 (K2) USA (E03)

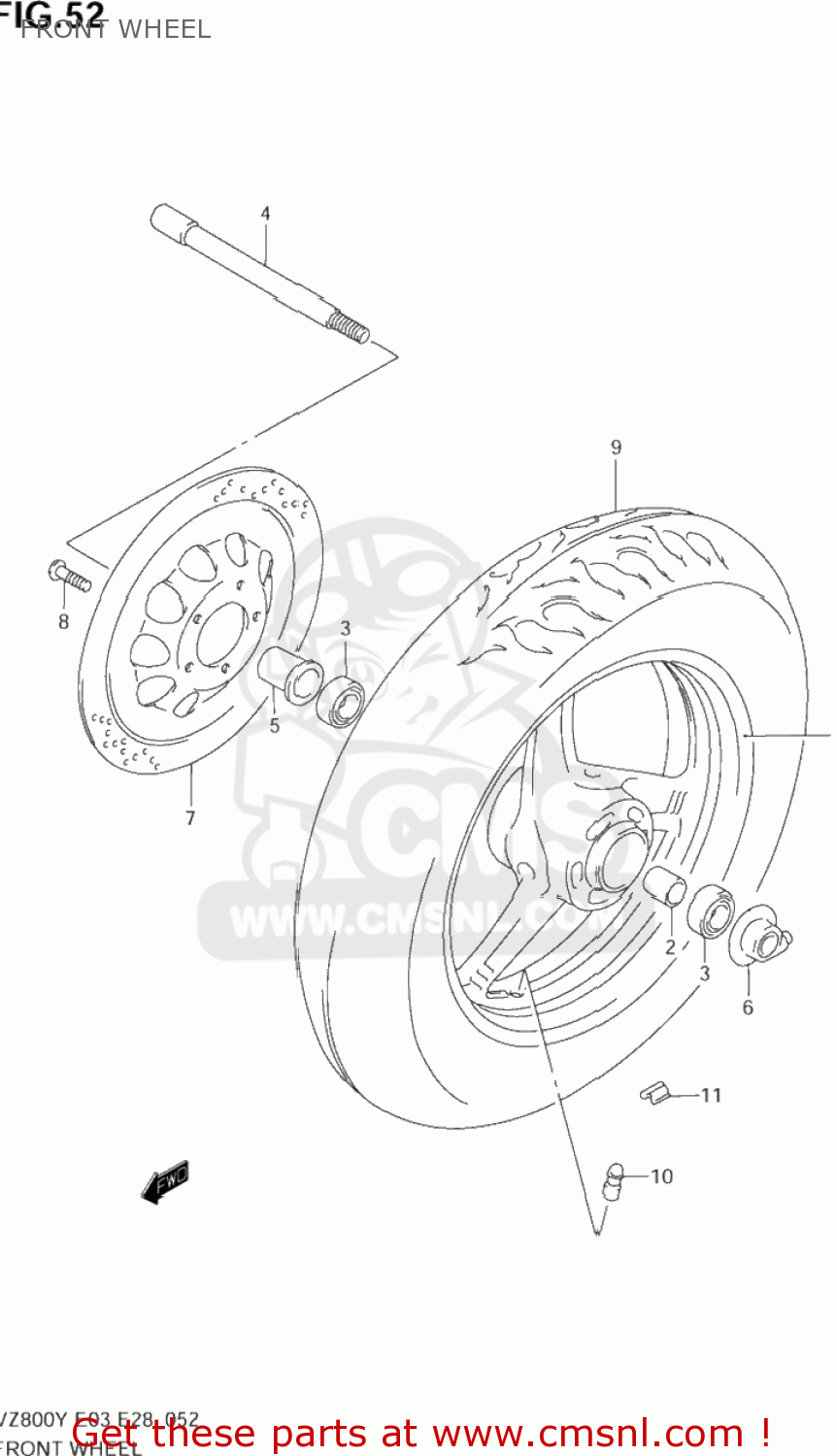

Front wheel diagram VZ800 MARAUDER 2002 (K2) USA (E03)
FRONT WHEEL VZ800 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411148E0012R
ref: 1
54111-48E01-12R
WHEEL,FRONT (16XMT3.00)
€ 665.50
1
5411148E0012R
ref: 1
54111-48E01-12R
WHEEL,FRONT (16XMT3.00)
€ 665.50
2
0918017101
ref: 2
SPACER(17.5X25X82.1)
€ 19.00
3
0814362037
ref: 3
BEARING
€ 18.50
4
5471122D00
ref: 4
AXLE,FR
€ 81.00
5
5474026D00
ref: 5
54740-26D0V
SPACER COMP,FRONT AXLE
€ 12.00
6
5460027A12
ref: 6
BOX ASSY,SPEEDOMETER GEAR
€ 127.00
7
5921148E00
ref: 7
DISC,FR BRAKE,R
€ 261.00
8
0910608125
ref: 8
09106-08148
BOLT 8X33
€ 6.00
9
5511048E10
ref: 9
TIRE,FR(130/90-16 67H)
€ 121.50
9
5511048E10
ref: 9
TIRE,FR(130/90-16 67H)
€ 121.50
10
4313024A00
ref: 10
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
11-1
5541100A00
ref: 11-1
BALANCER,WHEEL (10G)
€ 6.50
11-2
5541200A01
ref: 11-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
