WATER PUMP
VZ800 MARAUDER 2002 (K2) USA (E03)

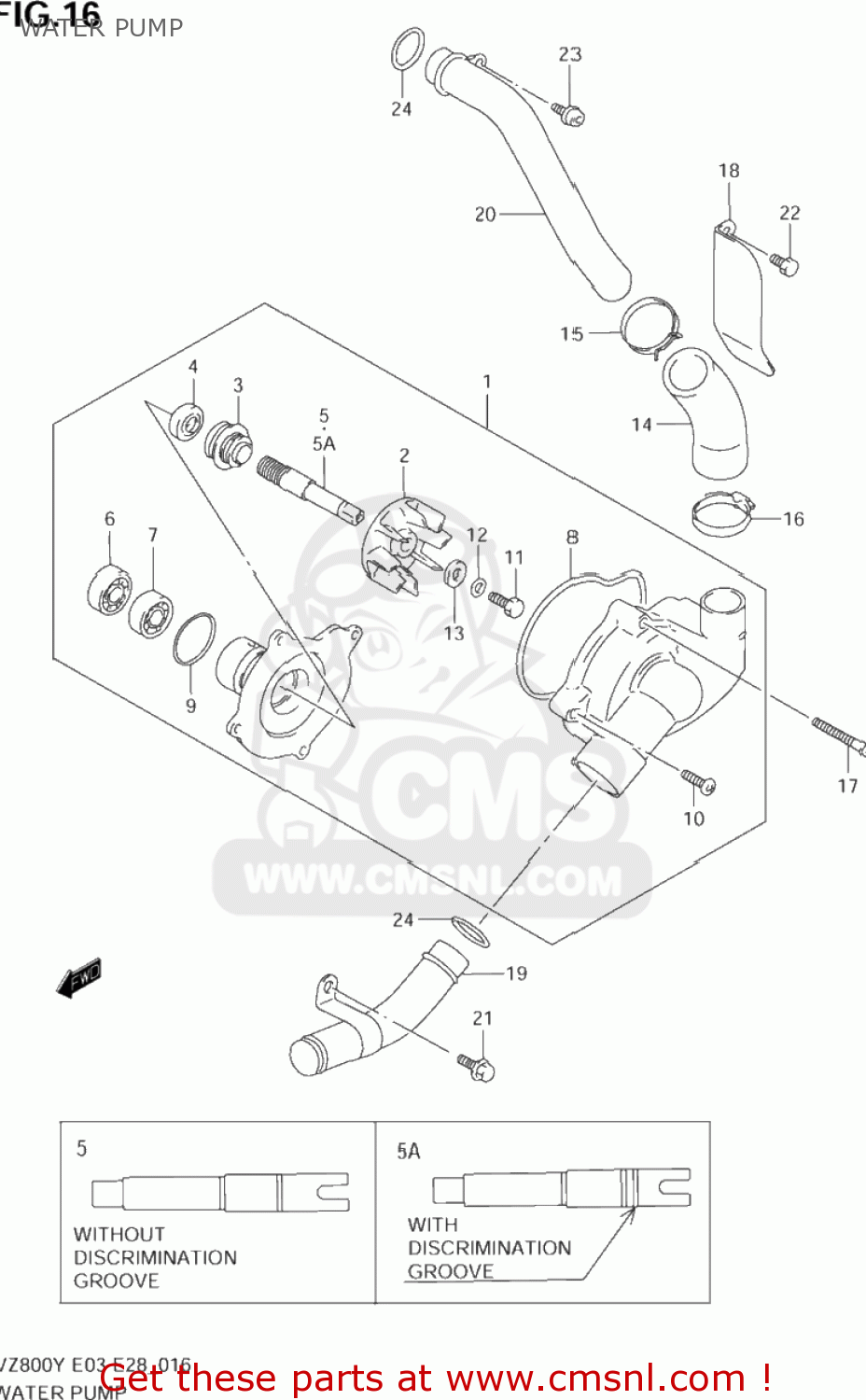

Water pump diagram VZ800 MARAUDER 2002 (K2) USA (E03)
WATER PUMP VZ800 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740048E00
ref: 1
PUMP ASSY,WATER
€ 513.50
2-1
1749117E00
ref: 2-1
17491-17E01
IMPELLER
€ 15.00
2-2
1749117E01
ref: 2-2
IMPELLER
€ 15.00
3-1
1747046A00
ref: 3-1
17470-02F00
SEAL,MECHANICAL
€ 21.50
3-2
1747046A01
ref: 3-2
17470-02F00
SEAL,MECHANICAL
€ 21.50
3-3
1747002F00
ref: 3-3
SEAL,MECHANICAL
€ 21.50
4
0928310004
ref: 4
SEAL,OIL(10X21X5)
€ 4.50
5
1751148E00
ref: 5
17511-48E01
SHAFT
€ 131.50
5A
1751148E01
ref: 5A
SHAFT,WATER PUMP
€ 131.50
6
0926210014
ref: 6
BEARING(10X26X8)
€ 13.00
7
0926212001
ref: 7
BEARING(12X28X8)
€ 15.00
8
1741833400
ref: 8
O RING
€ 4.00
9
1743533400
ref: 9
O RING,WATER PUMP HOLDER
€ 13.00
10
0211206163
ref: 10
02112-0616A
SCREW 6X16
€ 2.00
11
0910006099
ref: 11
BOLT(6X13)
€ 2.00
12
0916406006
ref: 12
WASHER
€ 2.50
13
0916806025
ref: 13
GASKET(6X15X2.2) (NAS)
€ 3.00
14
1785948E00
ref: 14
HOSE,WATER PUMP OUTLET
€ 13.50
15
0940126404
ref: 15
09401-26407
CLAMP
€ 3.00
16
0940232511
ref: 16
CLAMP
€ 11.50
17
0154706353
ref: 17
01547-0635B
BOLT
€ 3.00
18
1787148E00
ref: 18
PLATE,WATER HOSE
€ 6.00
19
1788048E00
ref: 19
PIPE,WATER PUMP INLET
€ 23.50
20
1789048E00
ref: 20
PIPE,WATER PUMP OUTLET
€ 31.00
21
0155006123
ref: 21
01550-0612A
BOLT
€ 2.50
22
0155006103
ref: 22
01550-0610A
BOLT
€ 2.50
23
0712006127
ref: 23
BOLT
€ 3.00
24
0928021015
ref: 24
O RING(D:2.7,ID:21.4)
€ 3.00
