FRONT FENDER (MODEL W/X)

VZ800 MARAUDER 2002 (K2) USA (E03)

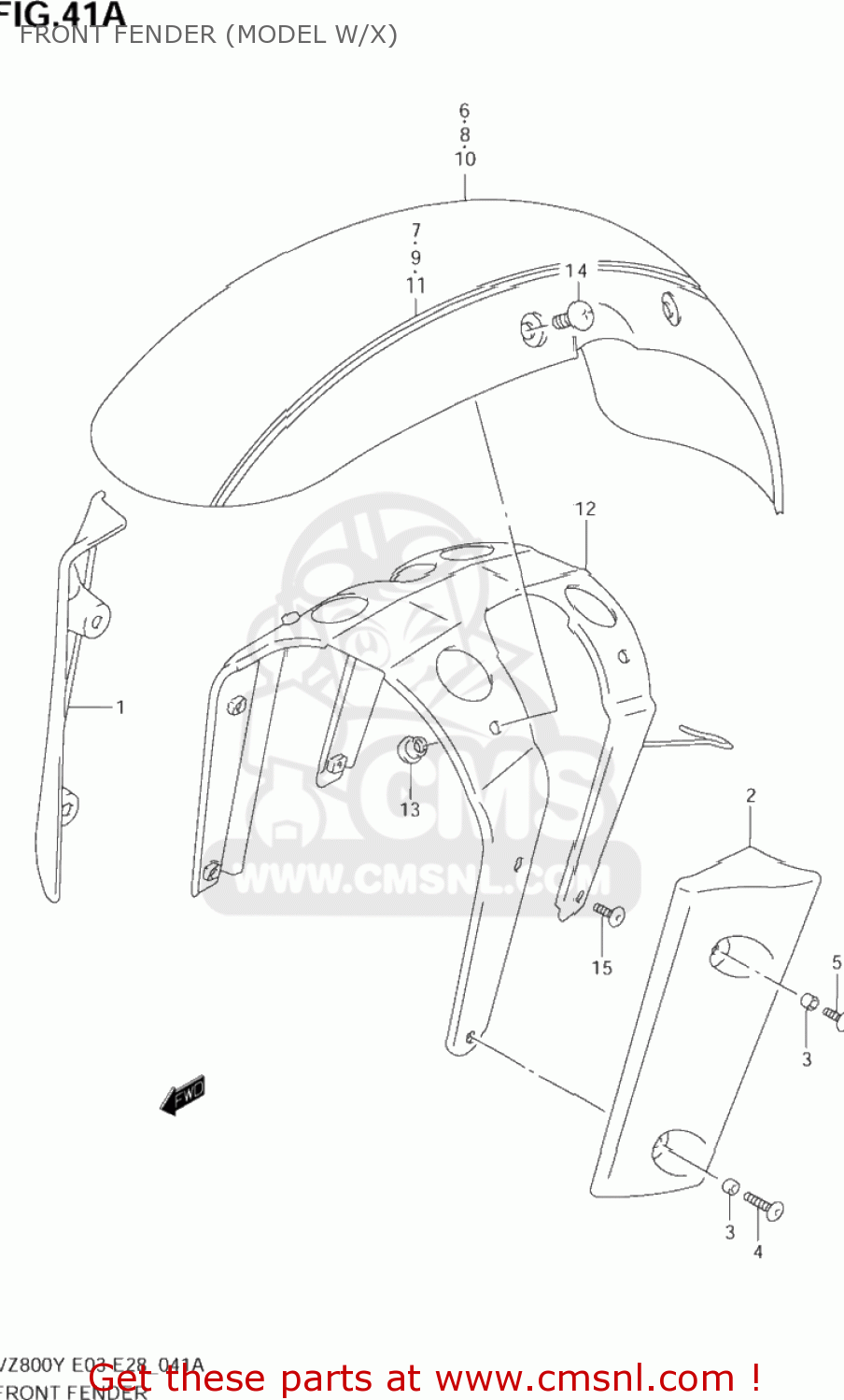

Front fender (model w/x) diagram VZ800 MARAUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL W/X) VZ800 MARAUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL W/X) VZ800 MARAUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5188148E00
ref: 1

COVER,FR FORK SIDE,R

€ 65.50

2

5188248E00
ref: 2

COVER,FR FORK SIDE,L

€ 61.00

3

0918006245
ref: 3

SPACER(6.1X8X3.5)

€ 3.00

4

0913906028
ref: 4

SCREW(6X20)

€ 3.50

5

0913906027
ref: 5

SCREW(6X12)

€ 3.00

6

5311048E30J8K
ref: 6
53110-48E50-J8K

FENDER COMP,FRONT

€ 168.00

7

6815048E10J9G
ref: 7

TAPE SET,FRONT FENDER

€ 66.00

8

5311048E40J4M
ref: 8
53110-48E60-J4M

FENDER,FRONT

€ 212.00

9

6815048E20J6F
ref: 9

TAPE SET,FR FENDER

€ 50.50

10-1

5311048E70E9N
ref: 10-1
53110-48E80-E9N

FENDER COMP,FRONT

€ 204.00

10-2

5311048E70G7U
ref: 10-2
53110-48E80-G7U

FENDER COMP,FRONT

€ 200.50

11-1

6815048E30H0G
ref: 11-1

TAPE SET,FR FENDER

€ 39.50

11-2

6815048E30M1Z
ref: 11-2

TAPE SET,FRONT FENDER

€ 43.50

12

5312048E00
ref: 12

BRACE,FR FENDER

€ 65.50

13

5312233D00
ref: 13

NUT

€ 6.50

14

0913906027
ref: 14

SCREW(6X12)

€ 3.00

15

0913906030
ref: 15

SCREW(6X16)

€ 3.50
