GEAR SHIFTING
VZ800 MARAUDER 2002 (K2) USA (E03)

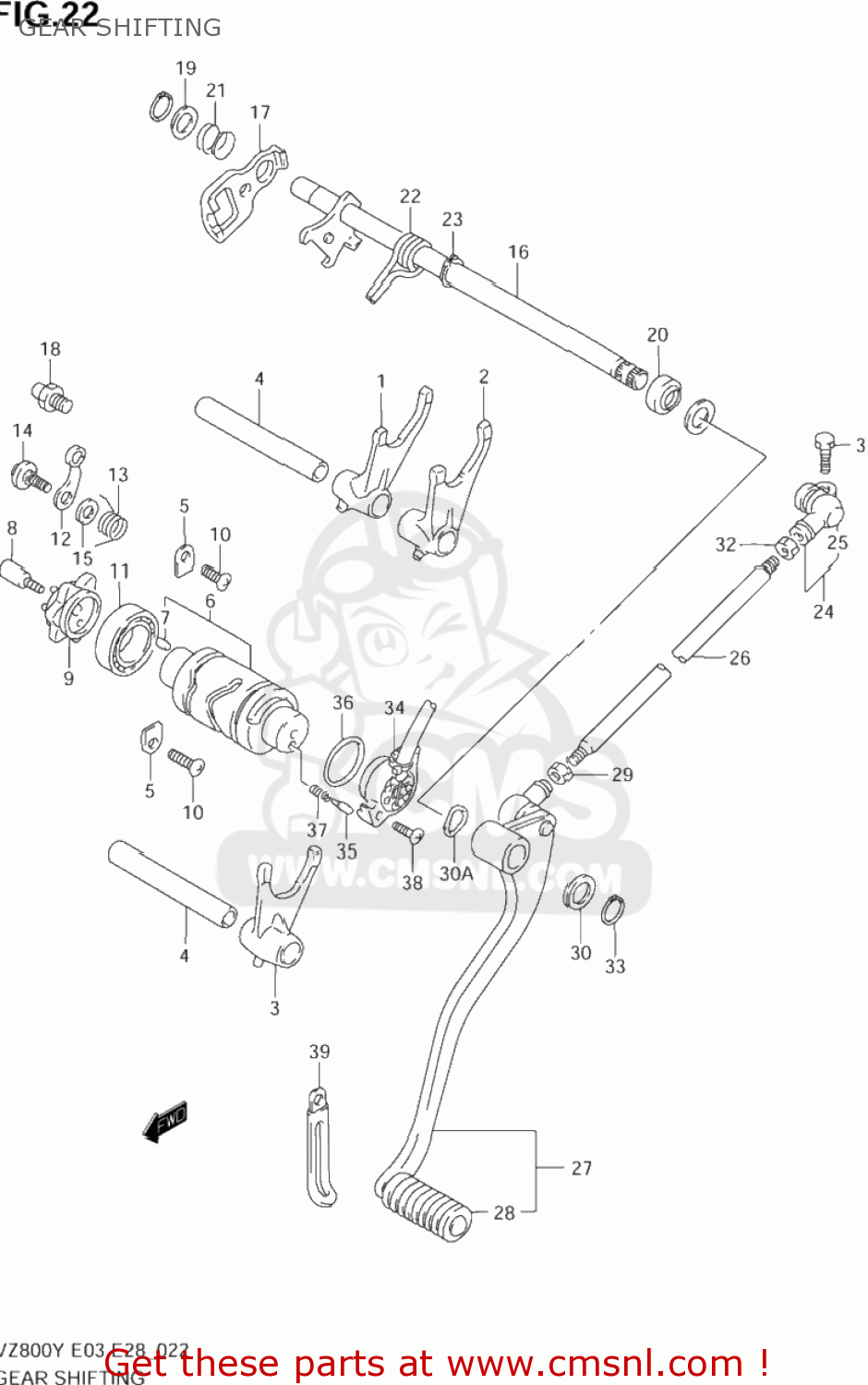

Gear shifting diagram VZ800 MARAUDER 2002 (K2) USA (E03)
GEAR SHIFTING VZ800 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521144B00
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522144B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 86.00
3
2523148E00
ref: 3
FORK,GEAR SHIFT NO.3
€ 61.00
4
2541144B00
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 19.50
5
2474121A00
ref: 5
RETAINER
€ 2.00
6
2531048E00
ref: 6
CAM,GEAR SHIFT
€ 153.50
7
0422104089
ref: 7
PIN
€ 1.50
8
2531212C00
ref: 8
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
9
2538113E10
ref: 9
PLATE,GEAR SHIFT CAM
€ 40.00
10
0211206123
ref: 10
02112-0612A
SCREW
€ 1.50
11
0811369050
ref: 11
BEARING
€ 36.00
12
2535026D01
ref: 12
STOPPER,GEAR SHIFT CAM
€ 8.50
13
2535513E10
ref: 13
SPRING,SHIFT CAM STOPPER
€ 4.00
14
0911106041
ref: 14
BOLT(6X14.3)
€ 3.00
15
0821106141
ref: 15
WASHER
€ 2.50
16-1
2551048E00
ref: 16-1
25510-48E01
SHAFT,GEAR SHIFT
€ 90.50
16-2
2551048E01
ref: 16-2
SHAFT,GEAR SHIFT
€ 90.50
17-1
2551213E10
ref: 17-1
25512-13E11
PLATE,GEAR SHIFT CAM D
€ 18.00
17-2
2551213E11
ref: 17-2
PLATE,GEAR SHIFT CAM DRIVE
€ 18.00
18-1
2567101000
ref: 18-1
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
18-2
2567101011
ref: 18-2
STOPPER,GEAR SHIFT ARM
€ 3.00
19
0918114167
ref: 19
SHIM(14X22X1)
€ 3.50
20
0928314006
ref: 20
SEAL,OIL(14X22X6)
€ 6.50
21
0944017009
ref: 21
SPRING
€ 1.50
22
0944420001
ref: 22
SPRING
€ 5.00
23
0833131146
ref: 23
08331-3114A
CIRCLIP
€ 2.00
24
2552009301
ref: 24
ARM,GEAR SHIFT SHAFT
€ 53.50
25
2552647000
ref: 25
COVER,DUST
€ 3.50
26
2552548E00
ref: 26
ROD,GEAR SHIFT LINK
€ 16.50
27
2560048E00
ref: 27
LEVER ASSY,GEAR SHIFT
€ 74.50
28
2565220C00
ref: 28
RUBBER,GEAR SHIFT PEDAL
€ 8.00
29-1
0914006011
ref: 29-1
NUT
€ 1.50
29-2
0914006025
ref: 29-2
NUT
€ 2.00
30
0916012011
ref: 30
WASHER(12.5X20X1)
€ 1.50
30A
0916412019
ref: 30A
WASHER
€ 2.00
31
0154706203
ref: 31
01547-0620B
SCREW
€ 2.50
32
0831000067
ref: 32
NUT
€ 2.50
33
0833131126
ref: 33
08331-3112A
CIRCLIP,12 MM
€ 2.00
34
3772048E20
ref: 34
BASE ASSY,NEUTRAL SW TERMINAL
€ 78.00
35
0920905011
ref: 35
PIN(5X15.5)
€ 2.00
36
0928026007
ref: 36
O RING(D:2.4,ID:25.7)
€ 6.50
37
0944004010
ref: 37
SPRING
€ 1.50
38
0211205163
ref: 38
02112-0516A
SCREW
€ 2.00
39-1
0940408417
ref: 39-1
09404-08205
CLAMP L:62
€ 3.00
39-2
0940408205
ref: 39-2
CLAMP(L:45 T:0.6)
€ 3.00
