MUFFLER (MODEL X/Y/K1/K2/K3)

VZ800 MARAUDER 2002 (K2) USA (E03)

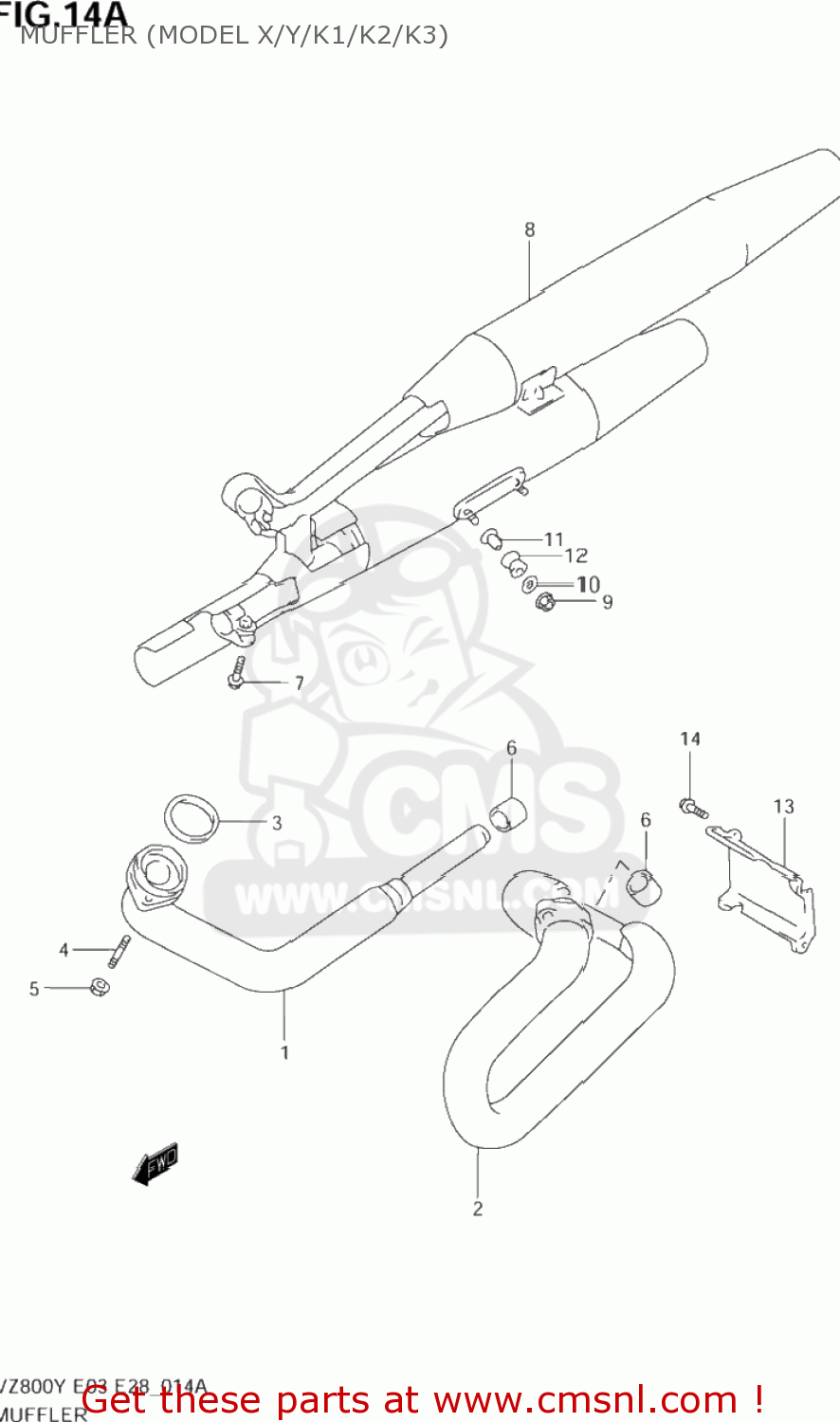

Muffler (model x/y/k1/k2/k3) diagram VZ800 MARAUDER 2002 (K2) USA (E03)

MUFFLER (MODEL X/Y/K1/K2/K3) VZ800 MARAUDER 2002 (K2) USA (E03)

MUFFLER (MODEL X/Y/K1/K2/K3) VZ800 MARAUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1415048E60
ref: 1

PIPE,EXHAUST,R

€ 440.50

2

1416048E60
ref: 2

PIPE,EXHAUST,L

€ 491.00

3

1418145C00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 6.50

4

0910808142
ref: 4

BOLT,STUD

€ 3.00

5

0831310087
ref: 5

NUT

€ 2.50

6

1477114D00
ref: 6

CONNECTOR,MUFFLER JOINT

€ 19.50

7

0910608137
ref: 7

BOLT(8X33)

€ 5.50

8

1430548E51H01
ref: 8

MUFFLER

€ 578.50

9

0831931087
ref: 9

NUT

€ 2.50

10

0916008133
ref: 10
09160-08151

WASHER (8.5X26X1.6)

€ 2.00

11

0918008151
ref: 11

SPACER(8.6X12X17.5)

€ 6.00

12

0932012043
ref: 12

CUSHION

€ 8.00

13

1412048E51
ref: 13

GUARD,HEAT

€ 26.50

14

0155006123
ref: 14
01550-0612A

BOLT

€ 2.50
