REAR SWINGING ARM

VZ800 MARAUDER 2002 (K2) USA (E03)

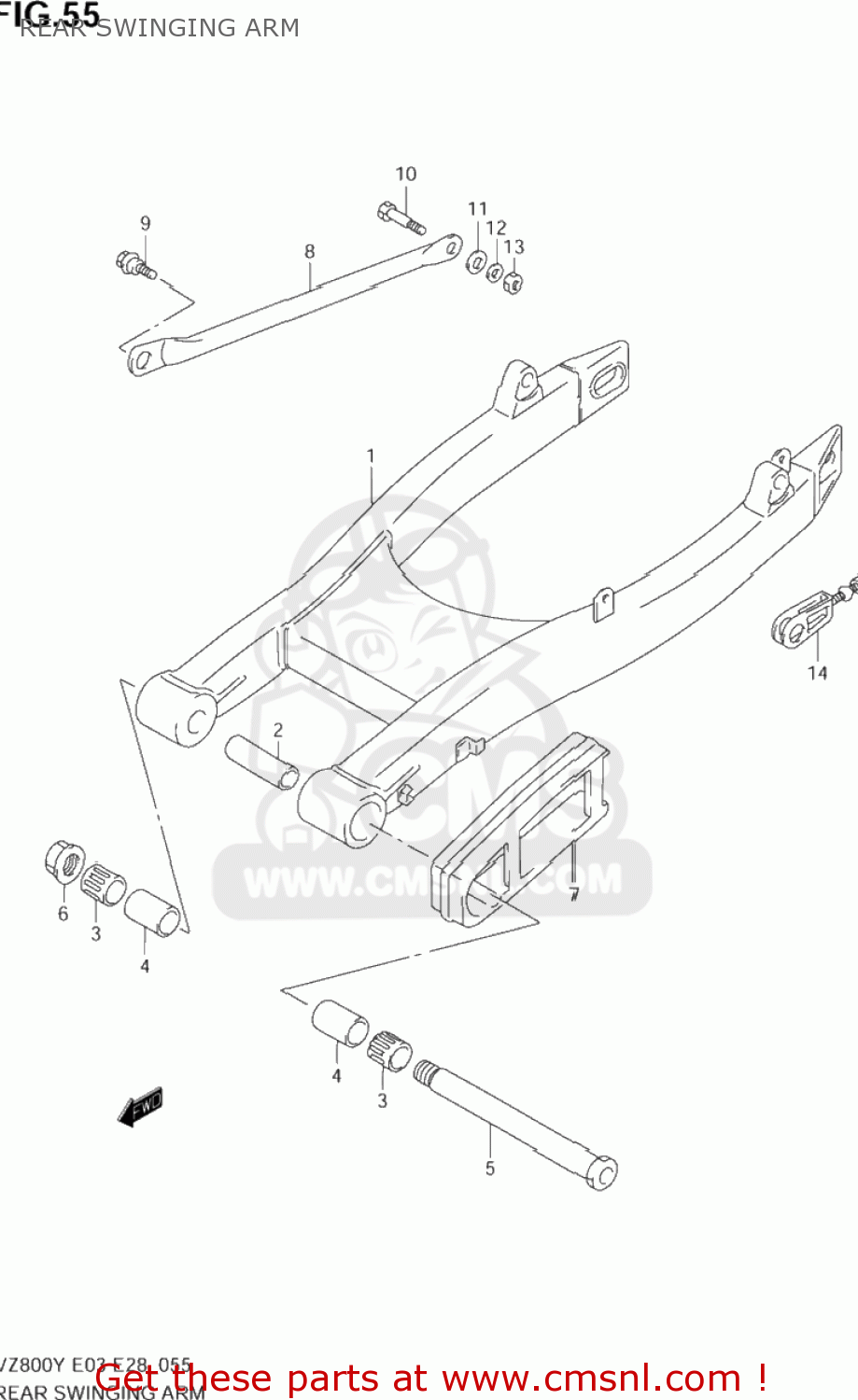

Rear swinging arm diagram VZ800 MARAUDER 2002 (K2) USA (E03)

REAR SWINGING ARM VZ800 MARAUDER 2002 (K2) USA (E03)

REAR SWINGING ARM VZ800 MARAUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6110048E02019
ref: 1

SWINGINGARM,RR

€ 677.00

2

6128248E00
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 15.00

3

0926325059
ref: 3

BEARING(25X33X35)

€ 35.00

4

6125121E00
ref: 4

SPACER,RR SWGARM PIVOT

€ 8.50

5

6121145C01
ref: 5

SHAFT,RR SWINGINGARM PIVOT

€ 54.50

6

0831931188
ref: 6
08319-3118A

NUT ,18MM

€ 17.50

7

6127348E00
ref: 7

BUFFER,CHAIN TOUCH DEFENSE

€ 21.50

8

6431048E00
ref: 8

TORQUE LINK,RR

€ 26.50

9

0911110056
ref: 9

BOLT(10X30)

€ 7.00

10

0911110057
ref: 10

BOLT(10X41)

€ 4.00

11

0932012501
ref: 11

CUSHION

€ 5.50

12

0916010085
ref: 12
09160-10142

WASHER (10X20X2.3)

€ 2.00

13

0915910027
ref: 13

NUT

€ 3.00

14

6140019D90
ref: 14

ADJUSTER ASSY,CHAIN

€ 105.00
