FUEL PUMP

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

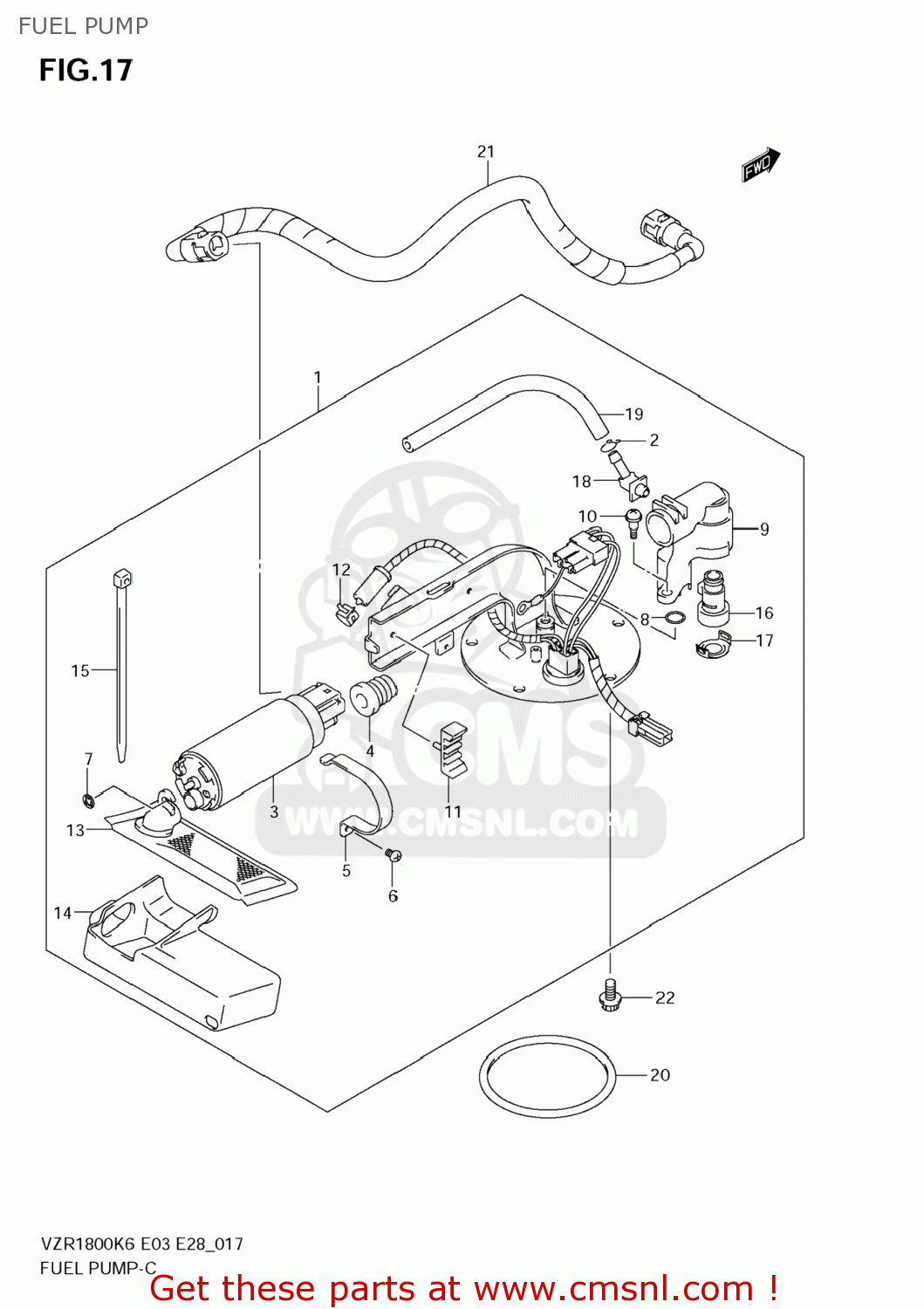

Fuel pump diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

FUEL PUMP VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

FUEL PUMP VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1510048G00
ref: 1
15100-48G10

PUMP ASSY,FUEL

€ 460.50

2

1369324F00
ref: 2

CLIP

€ 2.00

3

1511048G00
ref: 3

PUMP,FUEL

€ 291.00

4

1511448G00
ref: 4

INSULATOR

€ 16.50

5

1511514G00
ref: 5

HOLDER

€ 8.50

6

1511648G00
ref: 6

SCREW

€ 3.50

7

1511914G00
ref: 7

PLATE

€ 3.50

8

1512548G00
ref: 8

O RING

€ 8.50

9

1513148G00
ref: 9

ADAPTER

€ 30.50

10

1513548G00
ref: 10

SCREW

€ 3.50

11

1514148G00
ref: 11

INSULATOR

€ 13.00

12

1517548G00
ref: 12

CLAMP

€ 4.00

13

1542048G00
ref: 13

STRAINER,FUEL

€ 38.00

14

1542548G00
ref: 14

COVER,FILTER

€ 38.00

15

1542648G00
ref: 15

BAND

€ 7.50

16

1561048G00
ref: 16

REGULATOR,PRESSURE

€ 123.00

17

1561348G00
ref: 17

CLIP

€ 8.00

18

1561448G00
ref: 18

JOINT

€ 26.50

19

1561548G00
ref: 19

TUBE

€ 15.50

20

1520135F00
ref: 20

O RING,FUEL PUMP

€ 26.00

21

1581048G00
ref: 21
15810-48G01

HOSE COMP,FUEL

€ 63.50

22

071200612A
ref: 22

BOLT

€ 3.50
