Buy Suzuki VZR Parts Online


WATER PUMP

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

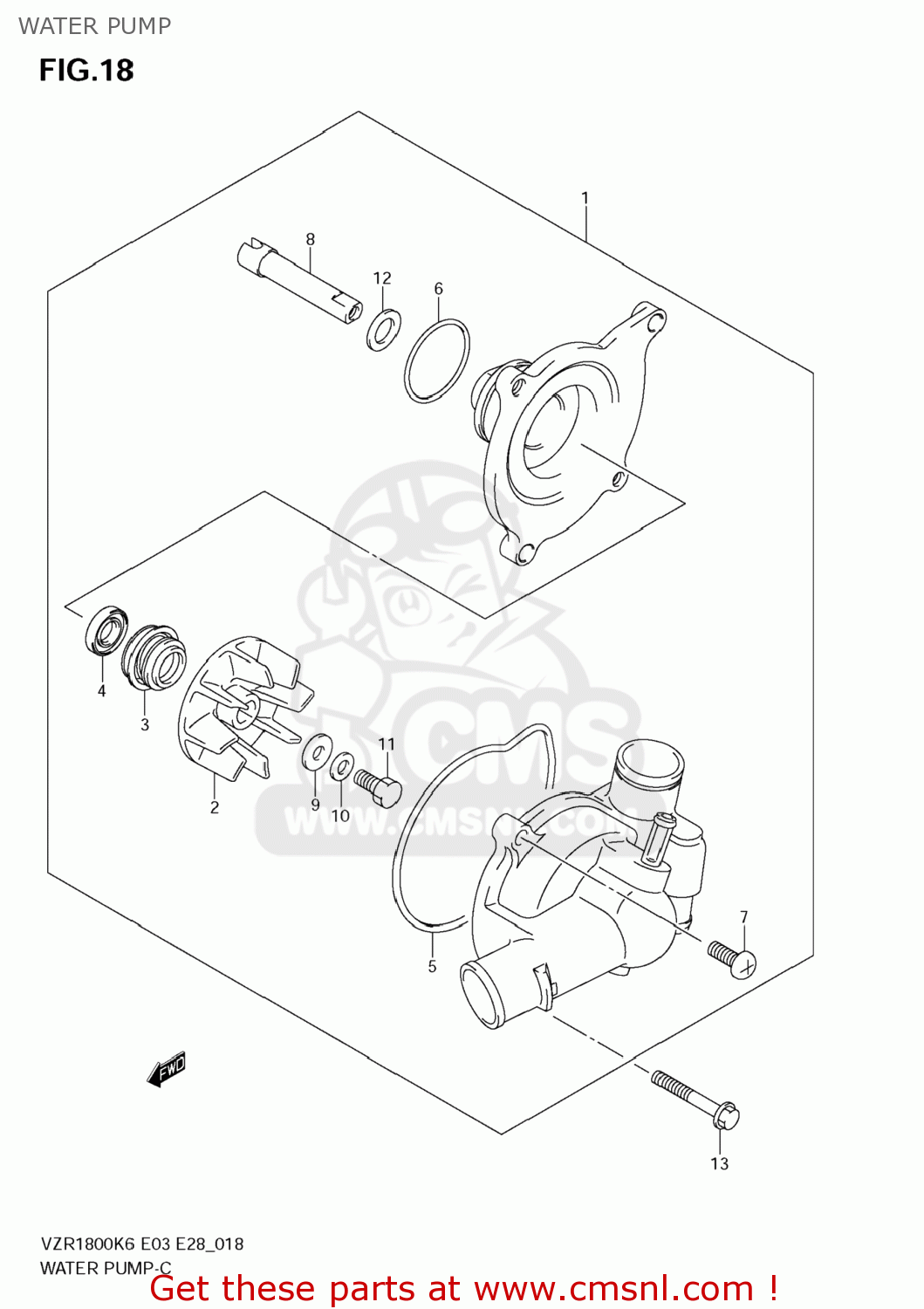

Water pump diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

WATER PUMP VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
WATER PUMP VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
WATER PUMP VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1740048G00
ref: 1
PUMP ASSY,WATER
€ 271.00
2
1749117E01
ref: 2
IMPELLER
1749117E01
€ 15.00
3
1747002F10
ref: 3
SEAL,MECHANICAL
1747002F10
€ 21.50
4
0928310004
ref: 4
SEAL,OIL(10X21X5)
0928310004
€ 4.50
5
1741833400
ref: 5
O RING
1741833400
€ 4.00
6
1743533400
ref: 6
O RING,WATER PUMP HOLDER
1743533400
€ 13.00
7
021120616B
ref: 7
SCREW
021120616B
€ 2.00
8
1751148G00
ref: 8
SHAFT,WATER PUMP
1751148G00
€ 56.50
9
0916806025
ref: 9
GASKET(6X15X2.2) (NAS)
0916806025
€ 3.00
10
0916406006
ref: 10
WASHER
0916406006
€ 2.50
11
0910006099
ref: 11
BOLT(6X13)
0910006099
€ 2.00
12
0918110167
ref: 12
SHIM(10X18X1)
0918110167
€ 3.00
13
015470635A
ref: 13
BOLT
015470635A
€ 3.00
