TURNSIGNAL LAMP (VZR1800ZK7/ZK9)

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

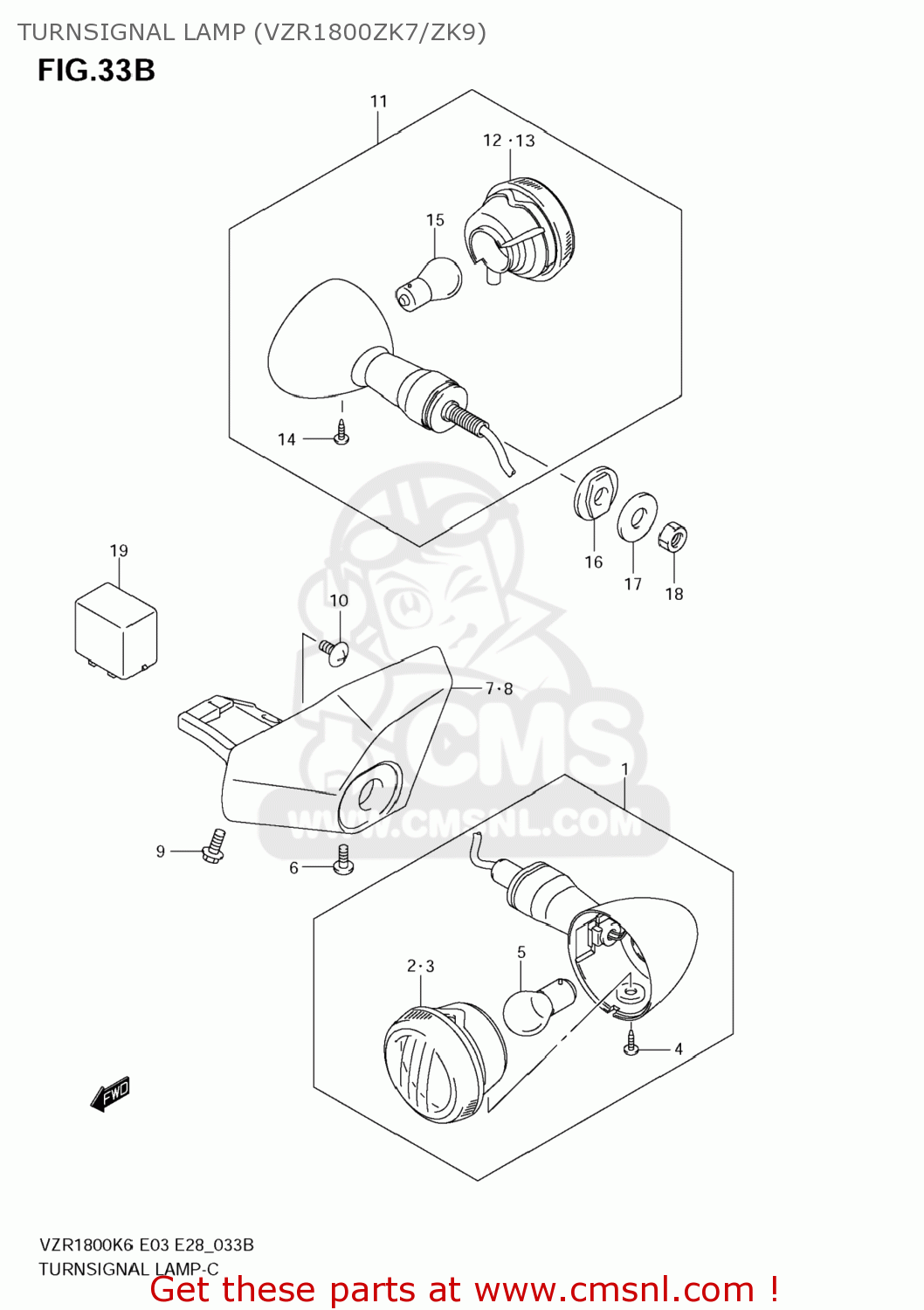

Turnsignal lamp (vzr1800zk7/zk9) diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

TURNSIGNAL LAMP (VZR1800ZK7/ZK9) VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

TURNSIGNAL LAMP (VZR1800ZK7/ZK9) VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

3560138AH0
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 74.00

1-2

3560238AH0
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 89.00

2

3561048EB0
ref: 2

LENS

€ 27.00

3

3563048EB0
ref: 3

LENS

€ 27.00

4

3562338AA0
ref: 4

SCREW(4X10)

€ 4.00

5

0947112224
ref: 5

BULB(12V23/8W)

€ 21.00

6

021420612A
ref: 6

SCREW

€ 2.00

7

3567148G00
ref: 7

STAY,FR TURNSIGNAL,R

€ 341.00

8

3568148G00
ref: 8

STAY,FR TURNSIGNAL,L

€ 338.50

9

015500816A
ref: 9

BOLT

€ 2.50

10

071200612A
ref: 10

BOLT

€ 3.50

11-1

3560348ED0
ref: 11-1

LAMP ASSY,RR TURNSIGNAL,R

€ 75.50

11-2

3560438AF0
ref: 11-2

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

12

3563048ED0
ref: 12

LENS

€ 36.00

13

3561038AF0
ref: 13

LENS

€ 24.50

14

3562338AA0
ref: 14

SCREW(4X10)

€ 4.00

15

0947112186
ref: 15

BULB(12V21W,AMBER)

€ 2.50

16

3569517C00
ref: 16

SPACER,RR TURNSIGNAL

€ 3.00

17

0916010501
ref: 17

WASHER(10.5X30X2.3)

€ 2.50

18

083100010A
ref: 18

NUT

€ 2.00

19

3861003F00
ref: 19

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
