RADIATOR HOSE

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

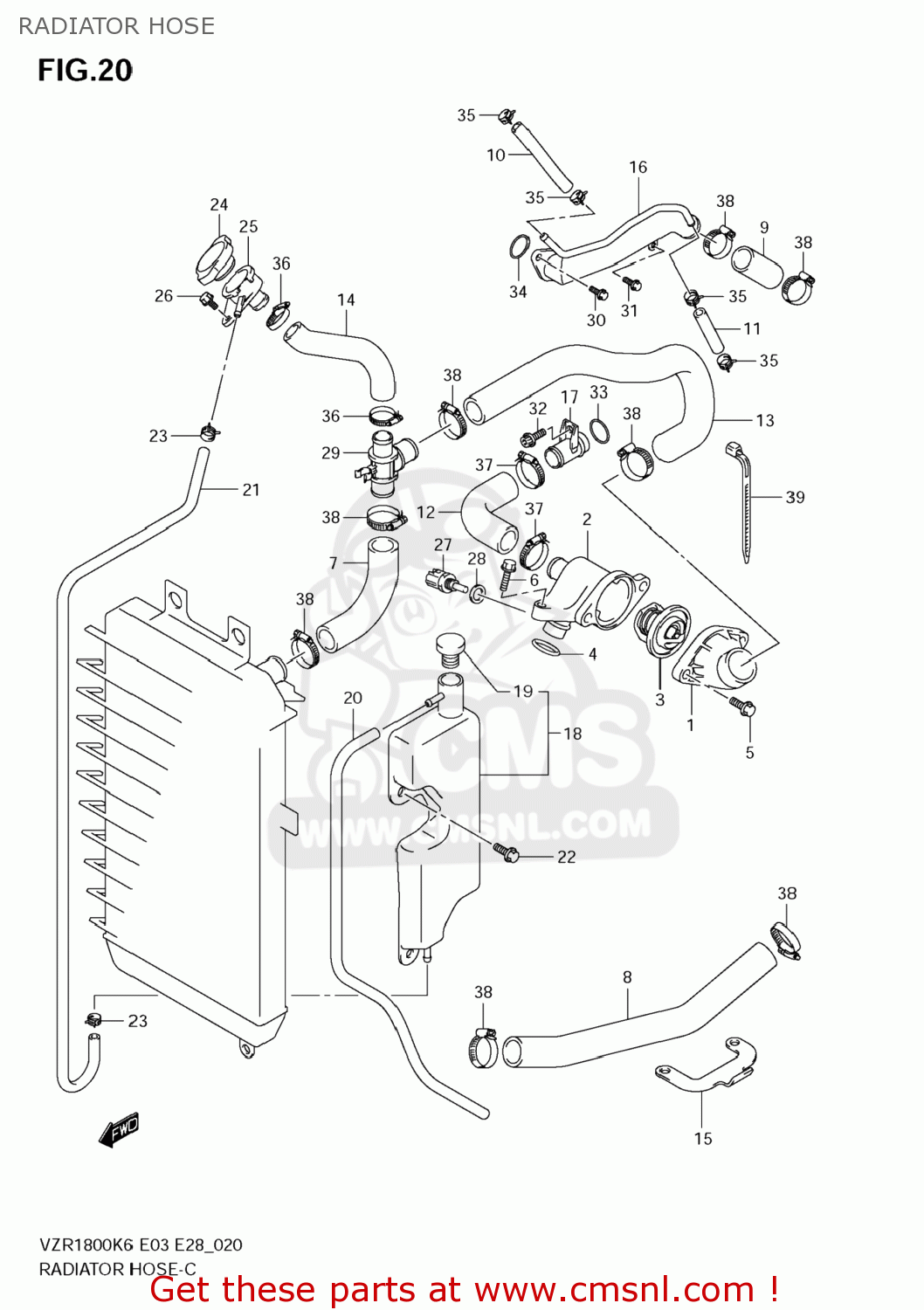

Radiator hose diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

RADIATOR HOSE VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

RADIATOR HOSE VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

1766148G00
ref: 1-1
17661-48G10

COVER,THERMOSTAT

€ 18.50

1-2

1766148G10
ref: 1-2

COVER,THERMOSTAT

€ 18.50

2

1766248G00
ref: 2

CONNECTOR,THERMOSTAT INLET

€ 61.50

3

1767006G50
ref: 3

THERMOSTAT,WATER

€ 24.50

4

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5

015500620A
ref: 5

BOLT

€ 2.50

6

015470625A
ref: 6

BOLT

€ 2.50

7

1785148G00
ref: 7

HOSE,RADIATOR INLET

€ 14.50

8

1785248G00
ref: 8

HOSE,RADIATOR OUTLET

€ 28.50

9

1785348G00
ref: 9

HOSE,CYLINDER INLET

€ 7.50

10

1785448G00
ref: 10

HOSE,WATER BYPASS UPR

€ 9.50

11

1785548G00
ref: 11

HOSE,WATER BYPASS LWR

€ 4.50

12

1785648G00
ref: 12

HOSE,RR CYLINDER HEAD OUTLET

€ 10.50

13

1785748G01
ref: 13

HOSE,THERMOSTAT OUTLET

€ 44.00

14

1785848G00
ref: 14

HOSE,CONDUCTION

€ 11.50

15

1785948G00
ref: 15

BRACKET,HOSE GUIDE

€ 7.00

16

1786048G00
ref: 16

PIPE,CYLINDER WATER INLET

€ 110.50

17

1789006G20
ref: 17

UNION,CONNECTOR HOSE

€ 9.50

18

1791048G00
ref: 18

TANK ASSY,RESERVOIR

€ 49.00

19

1793102FA0
ref: 19

CAP,RESERVOIR TANK

€ 4.50

20

093525090100B
ref: 20

HOSE(5X9X2000)

€ 19.50

21

1798148G00
ref: 21

HOSE,RESERVOIR TANK INLET

€ 25.00

22

0911106085A05
ref: 22
09111-06085

BOLT (6X12)

€ 4.00

23

0940108411
ref: 23

CLIP

€ 3.00

24

1773012C20
ref: 24
17730-08J00

CAP COMP,RADIATOR

€ 40.00

25

1779124D00
ref: 25

CONDUCTION,RADIATOR

€ 37.50

26

015500612A
ref: 26

BOLT

€ 2.50

27

1365010G00
ref: 27

SENSOR,WATER TEMP

€ 64.50

28

0916812017
ref: 28

GASKET(12X17X1) (NAS)

€ 2.00

29

1789148G00
ref: 29

JOINT,3 WAY

€ 7.00

30

0910306274
ref: 30

BOLT(6X16)

€ 2.00

31

0910306280
ref: 31

BOLT(6X12)

€ 2.00

32

071300612A
ref: 32

BOLT

€ 2.50

33

0928018009
ref: 33

O RING(D:3.2,ID:17.8)

€ 8.00

34

0928026005
ref: 34

O RING(D:2.4,ID:26.2)

€ 2.50

35

0940112409
ref: 35

CLAMP

€ 3.00

36

0940228513
ref: 36

CLAMP

€ 6.50

37

0940232512
ref: 37

CLAMP

€ 9.00

38

0940238512
ref: 38

CLAMP

€ 9.50

39

0940725401
ref: 39

CLAMP(L:235)

€ 4.00
