Buy Suzuki VZR Parts Online


MUFFLER (MODEL K6/K7)

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

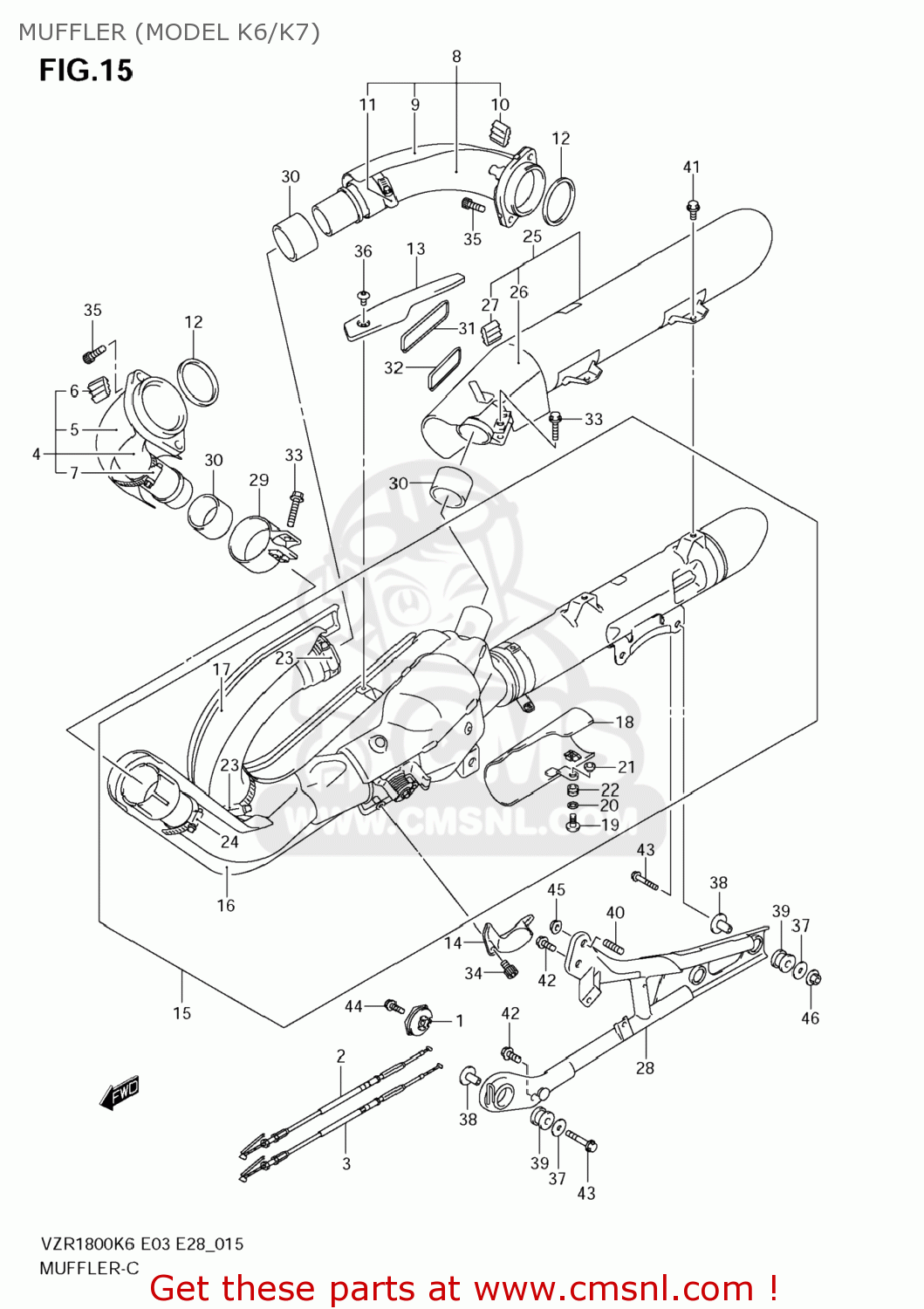

Muffler (model k6/k7) diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

MUFFLER (MODEL K6/K7) VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
MUFFLER (MODEL K6/K7) VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
MUFFLER (MODEL K6/K7) VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1126918G00
ref: 1
11269-18G01
PULLEY CONTROL
1126918G00
€ 17.00
2
1127648G00E00
ref: 2
11276-48G00
CABLE,EXH VALV
€ 24.50
3
1127748G00E00
ref: 3
11277-48G00
CABLE,EXH VALV
€ 24.50
4
1415048G10
ref: 4
14150-48G30
PIPE COMP,EXH
€ 155.50
5
1416848G00
ref: 5
COVER,EXH FR P
€ 74.50
6
1479510FA0
ref: 6
GROMMET
1479510FA0
€ 3.00
7
0940257511
ref: 7
CLAMP
0940257511
€ 8.50
8
1416048G00
ref: 8
14160-48G20
PIPE COMP,EXH
€ 187.00
9
1416948G00
ref: 9
14169-48G20
COVER,EXH RR P
€ 75.50
10
1479510FA0
ref: 10
GROMMET
1479510FA0
€ 3.00
11
0940267501
ref: 11
CLAMP
0940267501
€ 23.00
12
1418110F00
ref: 12
GASKET,EXHAUST PIPE (NAS)
1418110F00
€ 11.50
13
1426048G00
ref: 13
COVER,EXHAUST RR UP
1426048G00
€ 99.00
14
1428048G00E00
ref: 14
14280-48G00
COVER,EXH VALV
€ 11.00
15
1430548G12H01
ref: 15
MUFFLER
€ 1,513.50
16
1417048G00
ref: 16
COVER,EXHAUST FR
1417048G00
€ 191.00
17
1418048G10
ref: 17
COVER,EXHAUST RR
€ 278.50
18
1431548G00
ref: 18
COVER,LWR MUFFLER FR
1431548G00
€ 145.50
19
0910606064
ref: 19
BOLT(6X18)
0910606064
€ 6.00
20
0916006141
ref: 20
WASHER(6.5X20X1)
0916006141
€ 2.00
21
0918006349
ref: 21
SPACER
0918006349
€ 3.00
22
0932008066
ref: 22
CUSHION
0932008066
€ 7.50
23
0940267501
ref: 23
CLAMP
0940267501
€ 23.00
24
0940257511
ref: 24
CLAMP
0940257511
€ 8.50
25
1434048G10H01
ref: 25
BODY,MUFFLER RR
1434048G10H01
€ 983.50
26
1434448G00
ref: 26
COVER,UPR MUFFLER FR
€ 314.50
27
1479510FA0
ref: 27
GROMMET
1479510FA0
€ 3.00
28
1441048G00
ref: 28
BRACKET,MUFFLER SUPPORT
€ 107.00
29
1445948G00E00
ref: 29
14459-48G00
CLAMP
€ 12.00
30
1477142F30
ref: 30
14771-42F31
CONNECTOR,MUF
1477142F30
€ 13.00
31
1478048G00
ref: 31
PROTECTOR,FR
1478048G00
€ 24.50
32
1479048G00
ref: 32
PROTECTOR,RR
1479048G00
€ 20.00
33
0910308365
ref: 33
BOLT(8X35)
0910308365
€ 3.50
34
0910606075A05
ref: 34
09106-06075
BOLT VZR1800/K
0910606075A05
€ 2.50
35
0910608165
ref: 35
BOLT(8X25)
0910608165
€ 5.00
36
0913906122
ref: 36
SCREW(6X10)
0913906122
€ 3.00
37
0916008140A05
ref: 37
09160-08146
WASHER VZR1800
€ 2.50
38
0918008156A05
ref: 38
09180-08156
SPACER,MUF SPR
€ 6.50
39
0932012049
ref: 39
CUSHION
0932012049
€ 9.00
40
014110820A
ref: 40
BOLT,STUD
€ 1.00
41
015500816A
ref: 41
BOLT
015500816A
€ 2.50
42
0910308283A05
ref: 42
BOLT(8X16)
0910308283A05
€ 2.50
43
015500845A
ref: 43
BOLT
€ 3.00
44
071200516A
ref: 44
BOLT
071200516A
€ 1.50
45
083161008A
ref: 45
NUT
083161008A
€ 2.50
46
083612508A
ref: 46
NUT
083612508A
€ 2.50
