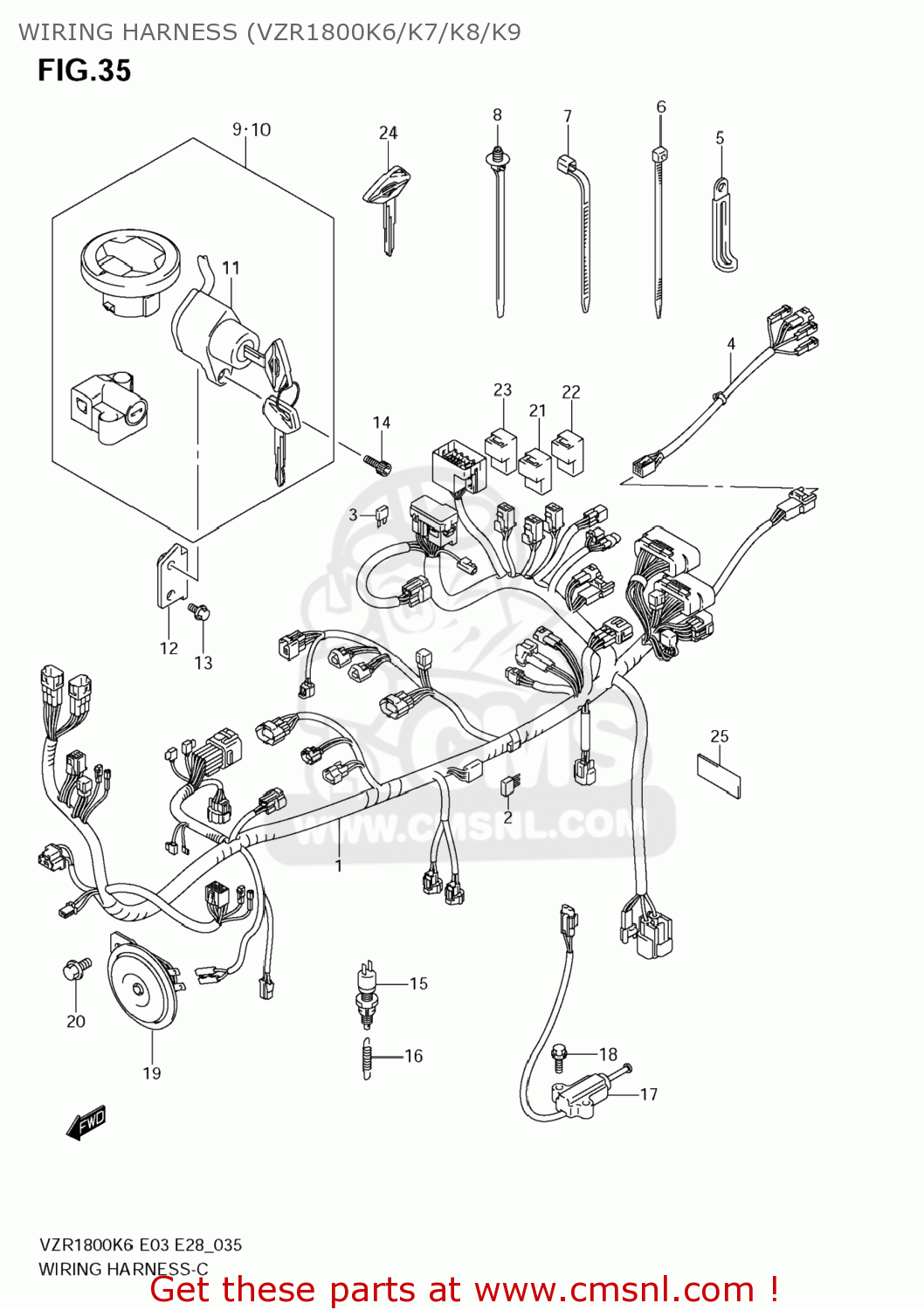

WIRING HARNESS (VZR1800K6/K7/K8/K9

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

Wiring harness (vzr1800k6/k7/k8/k9 diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

WIRING HARNESS (VZR1800K6/K7/K8/K9 VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

WIRING HARNESS (VZR1800K6/K7/K8/K9 VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3661048G30
ref: 1

HARNESS,WIRING

€ 0.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3-1

0948110501
ref: 3-1

FUSE(10A)

€ 3.00

3-2

0948115501
ref: 3-2

FUSE(15A)

€ 1.00

4

3685848G00
ref: 4

WIRE,RR COMB

€ 41.50

5

0940406429
ref: 5

CLAMP(L:45)

€ 2.50

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

7-1

0940711401
ref: 7-1

CLAMP(L:95)

€ 2.50

7-2

0940714403
ref: 7-2

CLAMP(L:125)

€ 2.50

7-3

0940718402
ref: 7-3

CLAMP(L:165)

€ 2.50

7-4

0940719401
ref: 7-4

CLAMP(L:190)

€ 2.00

7-5

0940725401
ref: 7-5

CLAMP(L:235)

€ 4.00

8

0940717403
ref: 8

CLAMP(L:154)

€ 5.50

9

3700048860
ref: 9

LOCK SET

€ 529.50

10

3700048870
ref: 10

LOCK SET

€ 0.00

11

3711048G30
ref: 11

SWITCH ASSY,IGNITION

€ 130.50

12

3711948G00
ref: 12

BRACKET,IGNITION SWITCH

€ 4.00

13

015500612A
ref: 13

BOLT

€ 2.50

14

071300616A
ref: 14
07130-0616B

BOLT

€ 3.00

15

3774024A00
ref: 15

SWITCH ASSY,STOP LAMP

€ 20.50

16

0944306077
ref: 16

SPRING

€ 4.50

17

3784025D00
ref: 17

SWITCH ASSY,SIDE STAND

€ 63.50

18

015500625A
ref: 18

BOLT

€ 2.50

19

3850048G00
ref: 19
38500-48G01

HORN ASSY

€ 55.50

20

015500812A
ref: 20

BOLT

€ 2.50

21

3874024X50
ref: 21

RELAY ASSY

€ 37.50

22

3874024X50
ref: 22

RELAY ASSY

€ 37.50

23

3874024A00
ref: 23

RELAY ASSY

€ 39.00

24

3714610F00
ref: 24

KEY,BLANK(BOULEVARD)

€ 65.00

25

3365248G00
ref: 25

PROTECTOR,WIRING HARNESS

€ 2.00

25

3365248G00
ref: 25

PROTECTOR,WIRING HARNESS

€ 2.00
