STARTING MOTOR

VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

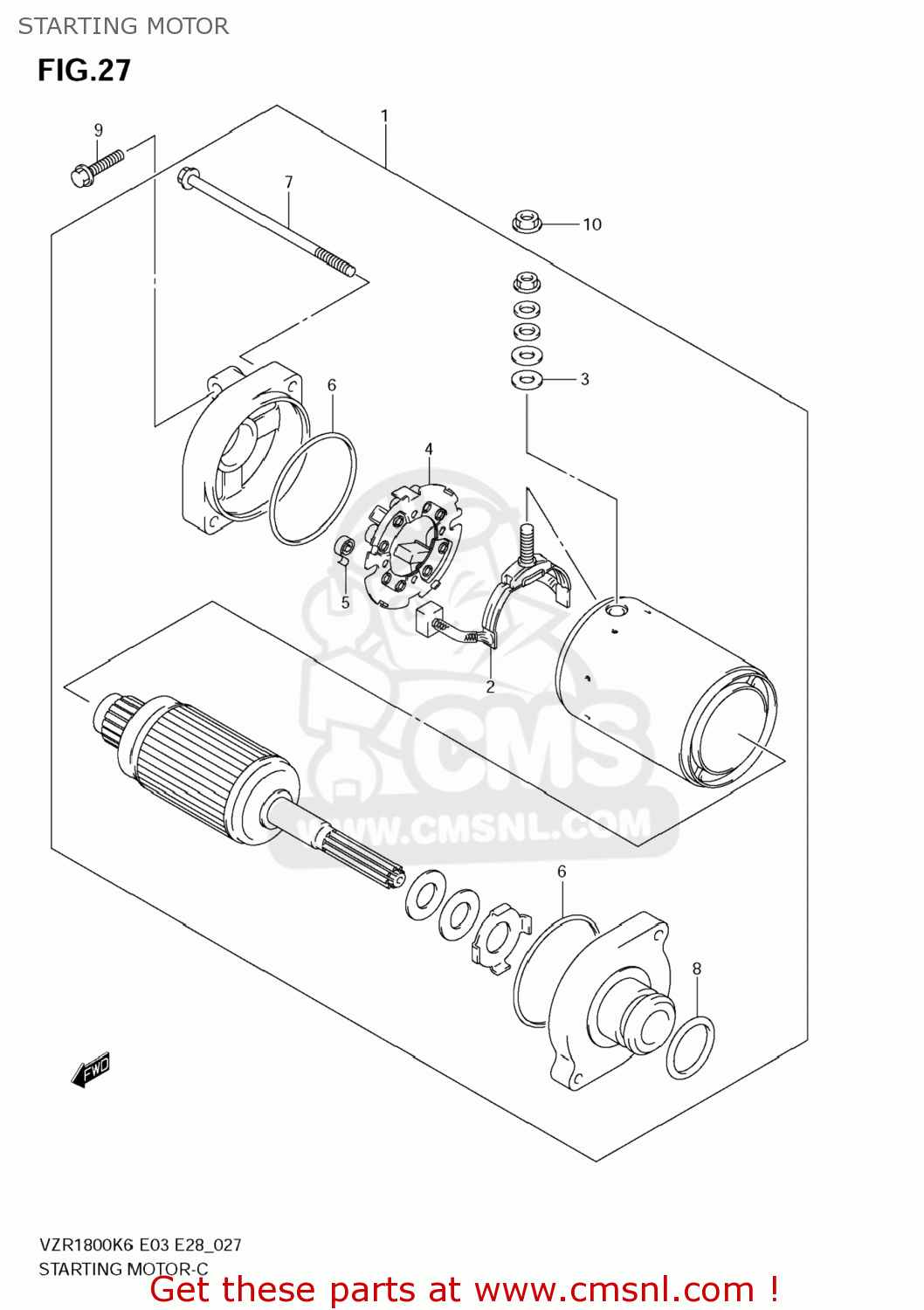

Starting motor diagram VZR1800N BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3110048G00
ref: 1

MOTOR ASSY,STARTING

€ 687.50

3113038B00
ref: 2

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 3

O RING

€ 3.00

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

3126431300
ref: 6
31264-32E00

O RING

€ 7.50

3128124B10
ref: 7

BOLT

€ 5.00

0928024003
ref: 8

O RING(D:3,ID:24.5)

€ 2.00

0910306212
ref: 9

BOLT(6X25)

€ 2.50

083613506A
ref: 10

NUT

€ 2.00
