CLUTCH

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

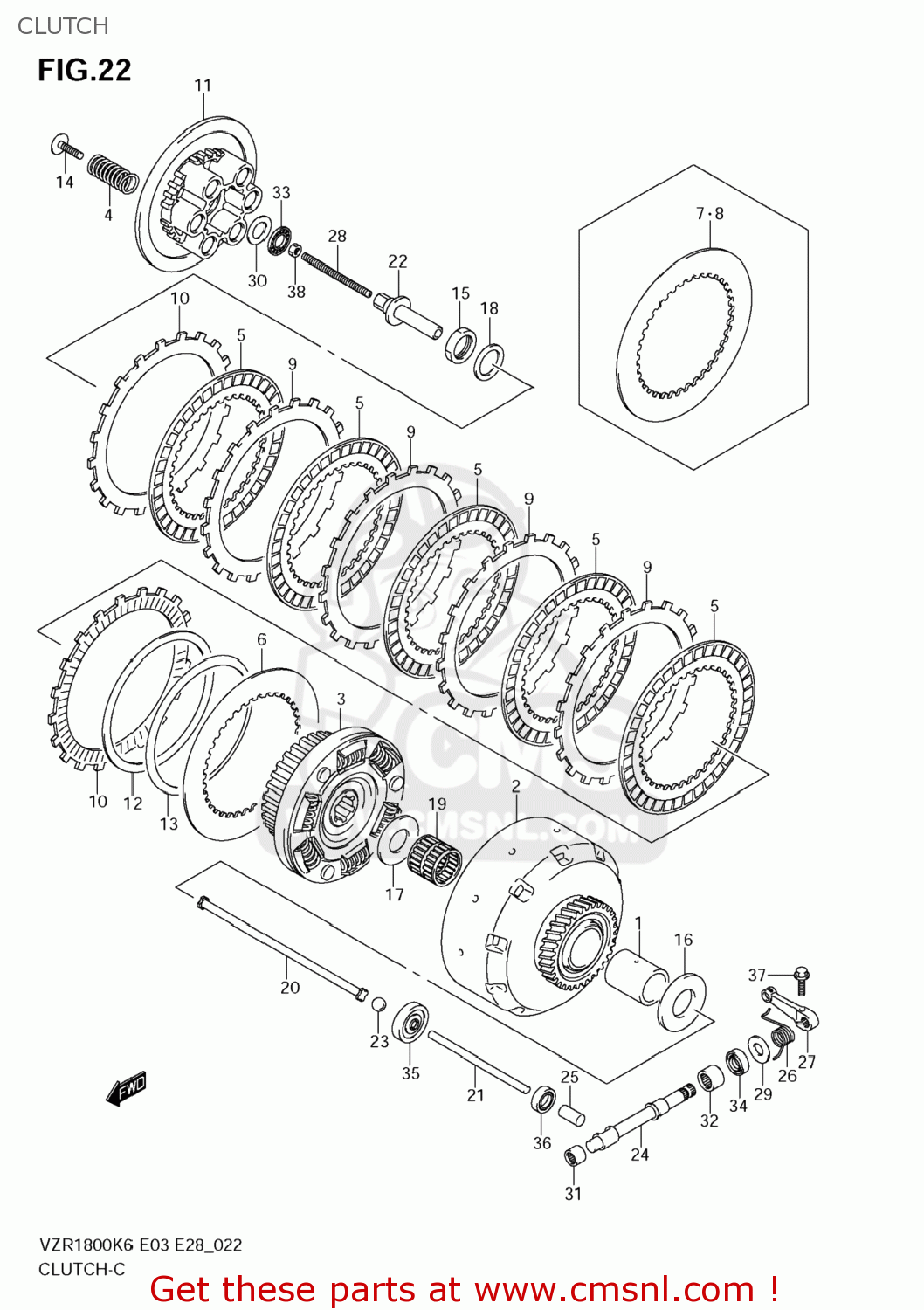

Clutch diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

CLUTCH VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

CLUTCH VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

2115148G00
ref: 1

SPACER,PRIMARY DRIVE GEAR

€ 30.50

2

2110048G01
ref: 2

GEAR ASSY,PRIMARY DRIVE

€ 212.50

3

2141048G00
ref: 3

HUB,CLUTCH SLEEVE

€ 505.00

4

2141348G00
ref: 4

SPRING,CLUTCH

€ 9.00

5

2144148G00
ref: 5

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 30.00

6

2144148G10
ref: 6
21441-48G40

PLATE,CLUTCH D

€ 9.50

7

2144148G20
ref: 7
21441-48G50

PLATE,CLUTCH D

€ 10.50

8

2144148G30
ref: 8
21441-48G60

PLATE,CLUTCH D

€ 10.50

9

2145148G00
ref: 9

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 15.00

10

2145148G10
ref: 10

PLATE,CLUTCH DRIVEN NO.2 (NAS)

€ 19.00

11

2146248G00
ref: 11

DISC,CLUTCH PRESSURE

€ 42.00

12

2147148G00
ref: 12

SEAT,WAVE WASHER

€ 12.00

13

2147248G00
ref: 13
21472-48G10

WASHER,CLUTCH

€ 22.00

14

2148241G00
ref: 14

BOLT,CLUTCH SPRING

€ 3.00

15

0915924010
ref: 15

NUT

€ 11.00

16

0916025056
ref: 16

WASHER(25X50X2.5)

€ 9.50

17

0916025056
ref: 17

WASHER(25X50X2.5)

€ 9.50

18-1

0916424006
ref: 18-1

WASHER

€ 4.00

18-2

0916420008
ref: 18-2

WASHER

€ 3.50

19

0926332020
ref: 19

BEARING(32X37X38.3)

€ 28.00

20

2311024F00
ref: 20

ROD,CLUTCH

€ 17.50

21

2311148G00
ref: 21

ROD,CLUTCH PUSH,L

€ 12.50

22

2312141G00
ref: 22

PIECE,CLUTCH PUSH

€ 33.00

23

2312202FR0
ref: 23

BALL,CLUTCH PUSH PIECE

€ 61.00

24

2312248G00
ref: 24

CAMSHAFT,CLUTCH RELEASE

€ 36.50

25

2312341G00
ref: 25

CAP,CLUTCH PUSH ROD

€ 9.00

26

2312548G00
ref: 26

SPRING,CLUTCH RELEASE RETURN

€ 2.50

27

2327148G00
ref: 27

ARM,CLUTCH RELEASE

€ 48.50

28

0913406015
ref: 28

SCREW(6X73)

€ 5.50

29

0916010020
ref: 29

WASHER(10.5X24X1)

€ 2.00

30

0916015045
ref: 30

WASHER(15.5X28X1)

€ 4.00

31

0926310014
ref: 31

BEARING(10X14X10)

€ 12.00

32

0926312027
ref: 32

BEARING(12X18X12)

€ 6.00

33

0926315003
ref: 33

BEARING(15X28X2)

€ 7.00

34

0928210012
ref: 34

SEAL,OIL(10X20X6)

€ 7.50

35

0928306010
ref: 35

SEAL,OIL(6X34X10.5)

€ 14.00

36

0928510004
ref: 36

SEAL,OIL(10X17X5)

€ 3.50

37

015500620A
ref: 37

BOLT

€ 2.50

38

083100006A
ref: 38

NUT

€ 2.00
