FRONT CYLINDER HEAD

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

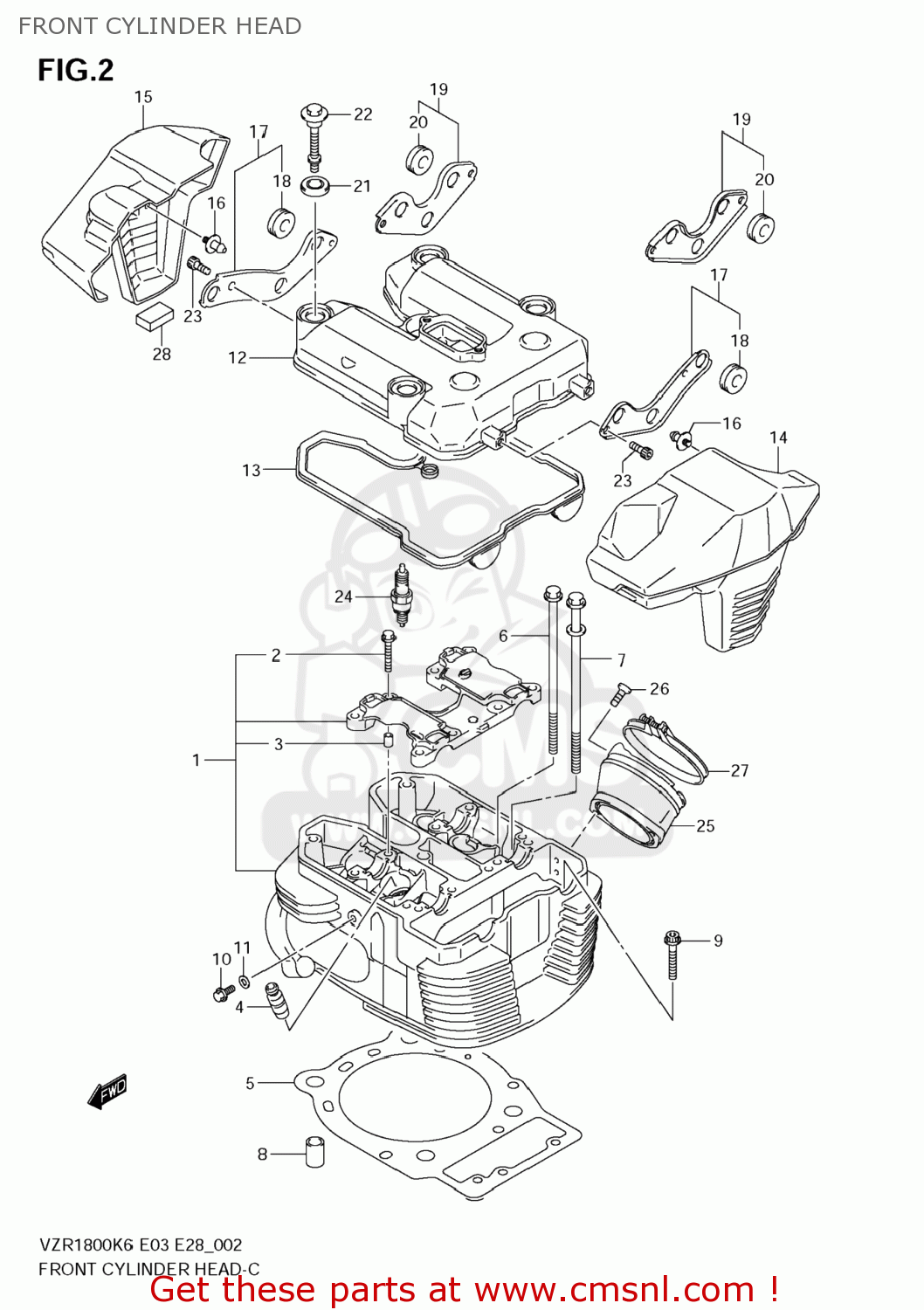

Front cylinder head diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FRONT CYLINDER HEAD VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FRONT CYLINDER HEAD VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

1110148G00
ref: 1-1

HEAD ASSY,CYLINDER FR

€ 1,288.00

1-2

1110148G10
ref: 1-2

HEAD ASSY,CYLINDER FR

€ 1,365.50

2

0910306026A05
ref: 2
09103-06026

.BOLT

€ 2.00

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

1111565J00001
ref: 4

GUIDE,VALVE

€ 15.00

5

1114148G00
ref: 5

GASKET,CYLINDER HEAD FR (NAS)

€ 31.50

6

0910308415
ref: 6

BOLT(8X180)

€ 7.00

7

0910310396
ref: 7

BOLT(10X19)

€ 17.50

8

0421113189
ref: 8

PIN

€ 2.50

9

071200670A
ref: 9

BOLT

€ 2.50

10

0910306222
ref: 10

BOLT(6X12)

€ 2.00

11

0916806023
ref: 11

GASKET(5.8X13X1.2) (NAS)

€ 2.00

12

1117048G00
ref: 12

COVER,CYLINDER HEAD

€ 220.00

13

1117348G00
ref: 13

GASKET,CYL HEAD COVER (NAS)

€ 22.50

14-1

1117448G00
ref: 14-1

CAP,CYLINDER HEAD COVER NO.1

€ 78.50

14-2

1117448G10
ref: 14-2

CAP,CYLINDER HEAD COVER NO.1

€ 423.00

15-1

1117548G00
ref: 15-1

CAP,CYLINDER HEAD COVER NO.2

€ 79.50

15-2

1117548G10
ref: 15-2

CAP,CYLINDER HEAD COVER NO.2

€ 424.50

16

1117648G00
ref: 16

BOLT,HEAD COVER CAP

€ 14.50

17

1118048G00E00
ref: 17
11180-48G00

BRACKET COMP,H

€ 9.00

18

0932008013
ref: 18

CUSHION

€ 4.00

19

1118048G10
ref: 19

BRACKET COMP,H

€ 16.50

20

0932008013
ref: 20

CUSHION

€ 4.00

21

1119213E00
ref: 21

CUSHION,HEAD COVER BOLT

€ 4.50

22

0911106091
ref: 22

BOLT(6X52)

€ 13.50

23

071300612A
ref: 23

BOLT

€ 2.50

24-1

0948200412
ref: 24-1

PLUG,SPARK(CR8EK)

€ 11.00

24-2

0948200413
ref: 24-2

PLUG,SPARK(U24ETR)

€ 11.00

24-3

0948200410
ref: 24-3

PLUG,SPARK(CR9EK)

€ 10.50

24-4

0948200411
ref: 24-4
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

24-5

0948200414
ref: 24-5

PLUG,SPARK(CR7EK)

€ 12.50

24-6

0948200415
ref: 24-6

PLUG,SPARK(U22ETR)

€ 13.50

25

1310148G00
ref: 25

PIPE ASSY,INTAKE

€ 74.00

26

0912006008
ref: 26

BOLT(6X20.5)

€ 2.50

27

0940282208
ref: 27

CLAMP

€ 7.00

28

1117748G00
ref: 28

CUSHION,HEAD COVER CAP

€ 2.50
