Buy Suzuki VZR Parts Online


SEAT (VZR1800/N)

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

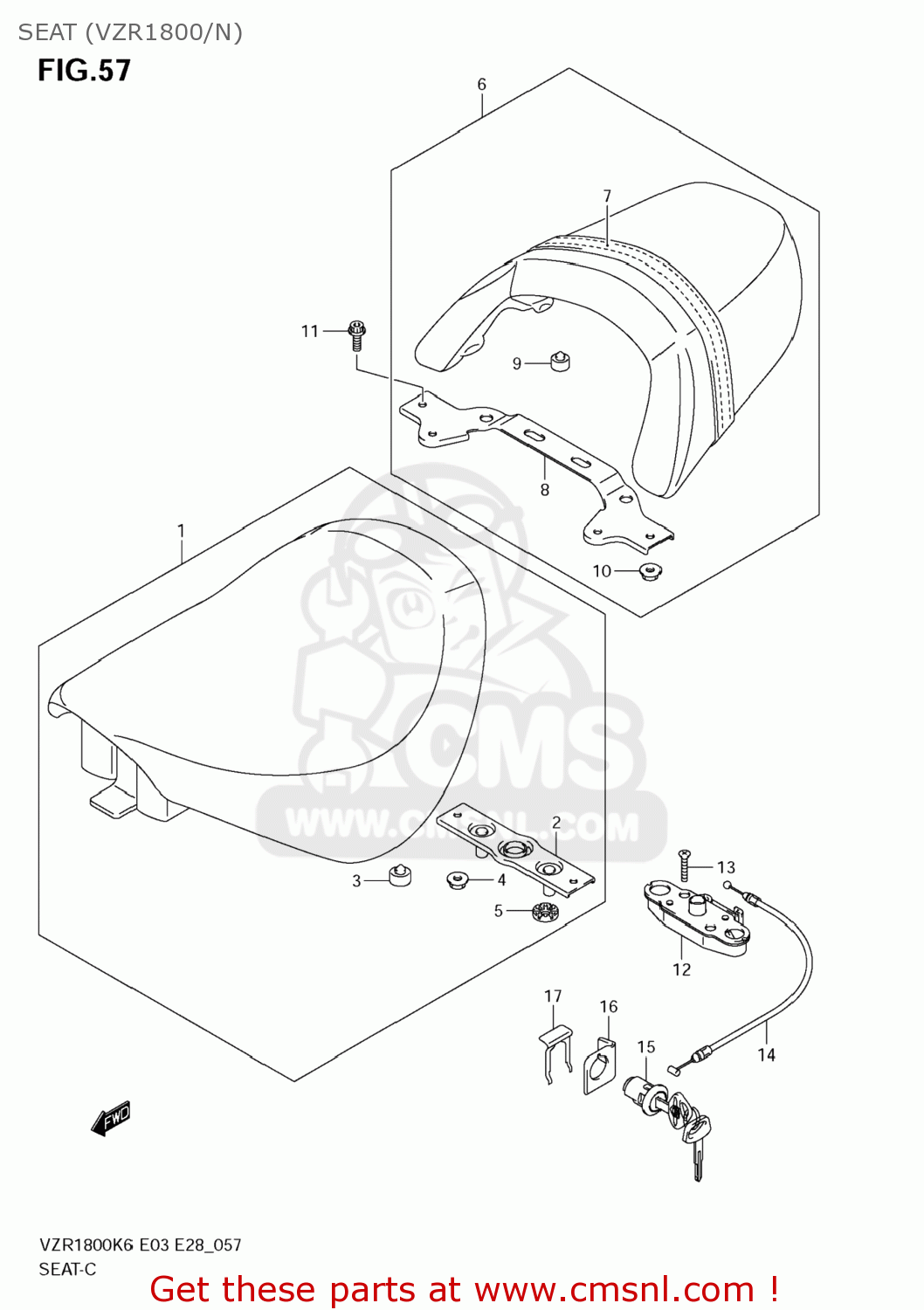

Seat (vzr1800/n) diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

SEAT (VZR1800/N) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)
SEAT (VZR1800/N) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)
SEAT (VZR1800/N) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
4510048G0048H
ref: 1
45100-48G01-48H
SEAT ASSY
€ 287.50
2
4529042F01
ref: 2
45290-42F02
STRIKER,SEAT L
€ 23.00
3
0932110011
ref: 3
CUSHION
0932110011
€ 3.00
4
083193106A
ref: 4
NUT
083193106A
€ 2.50
5
4521331300
ref: 5
CUSHION
4521331300
€ 1.50
6
4530048G0048H
ref: 6
SEAT ASSY,PILLION
€ 274.50
7
4518048G00
ref: 7
BAND ASSY
€ 14.50
8
4531548G00
ref: 8
BRACKET,BAND
€ 25.00
9
0932110011
ref: 9
CUSHION
0932110011
€ 3.00
10
083193106A
ref: 10
NUT
083193106A
€ 2.50
11
071200616A
ref: 11
BOLT
071200616A
€ 3.00
12
4522020A01
ref: 12
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
13
021220630A
ref: 13
SCREW
021220630A
€ 1.50
14
4528048G00
ref: 14
CABLE,SEAT LOCK
€ 13.00
15
9570014810
ref: 15
LOCK SET,SEAT
9570014810
€ 75.50
16
4528814F00
ref: 16
GUIDE,SEAT LOCK CABLE
4528814F00
€ 3.00
17
4528911F00
ref: 17
PLATE,SEAT LOCK ASSY
4528911F00
€ 3.00
