SEAT (VZR1800Z)

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

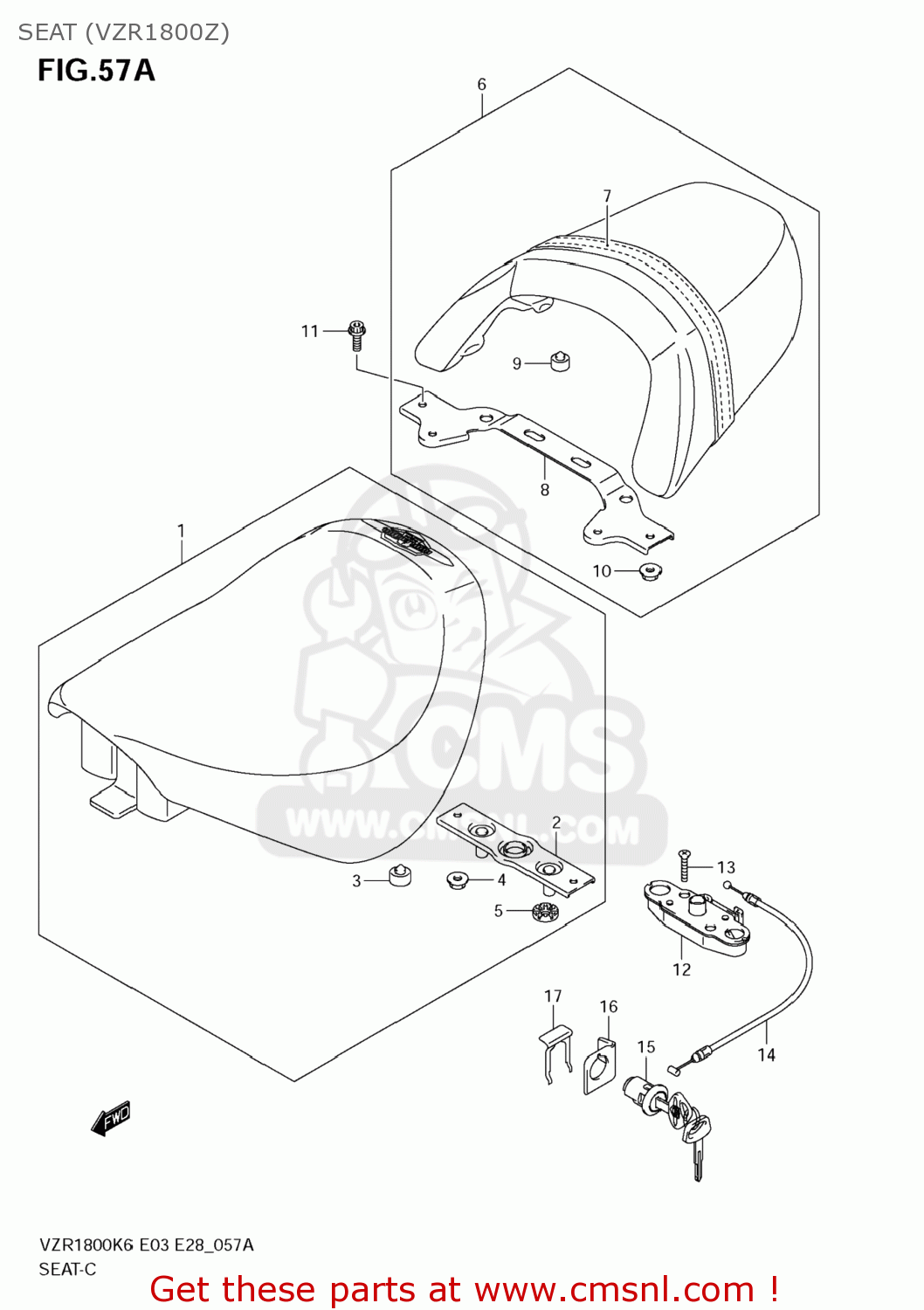

Seat (vzr1800z) diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

SEAT (VZR1800Z) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)
SEAT (VZR1800Z) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)
SEAT (VZR1800Z) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
4510048G10EGZ
ref: 1
SEAT ASSY (BLAC
€ 321.00
2
4529042F01
ref: 2
45290-42F02
STRIKER,SEAT L
€ 23.00
3
0932110011
ref: 3
CUSHION
0932110011
€ 3.00
4
083193106A
ref: 4
NUT
083193106A
€ 2.50
5
4521331300
ref: 5
CUSHION
4521331300
€ 1.50
6
4530048G10EGZ
ref: 6
SEAT ASSY,PILLION
€ 268.50
7
4518048G00
ref: 7
BAND ASSY
€ 14.50
8
4531548G00
ref: 8
BRACKET,BAND
€ 25.00
9
0932110011
ref: 9
CUSHION
0932110011
€ 3.00
10
083193106A
ref: 10
NUT
083193106A
€ 2.50
11
071200616A
ref: 11
BOLT
071200616A
€ 3.00
12
4522020A01
ref: 12
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
13
021220630A
ref: 13
SCREW
021220630A
€ 1.50
14
4528048G00
ref: 14
CABLE,SEAT LOCK
€ 13.00
15
9570014810
ref: 15
LOCK SET,SEAT
9570014810
€ 75.50
16
4528814F00
ref: 16
GUIDE,SEAT LOCK CABLE
4528814F00
€ 3.00
17
4528911F00
ref: 17
PLATE,SEAT LOCK ASSY
4528911F00
€ 3.00
