FUEL TANK (VZR1800K8/NK8)

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

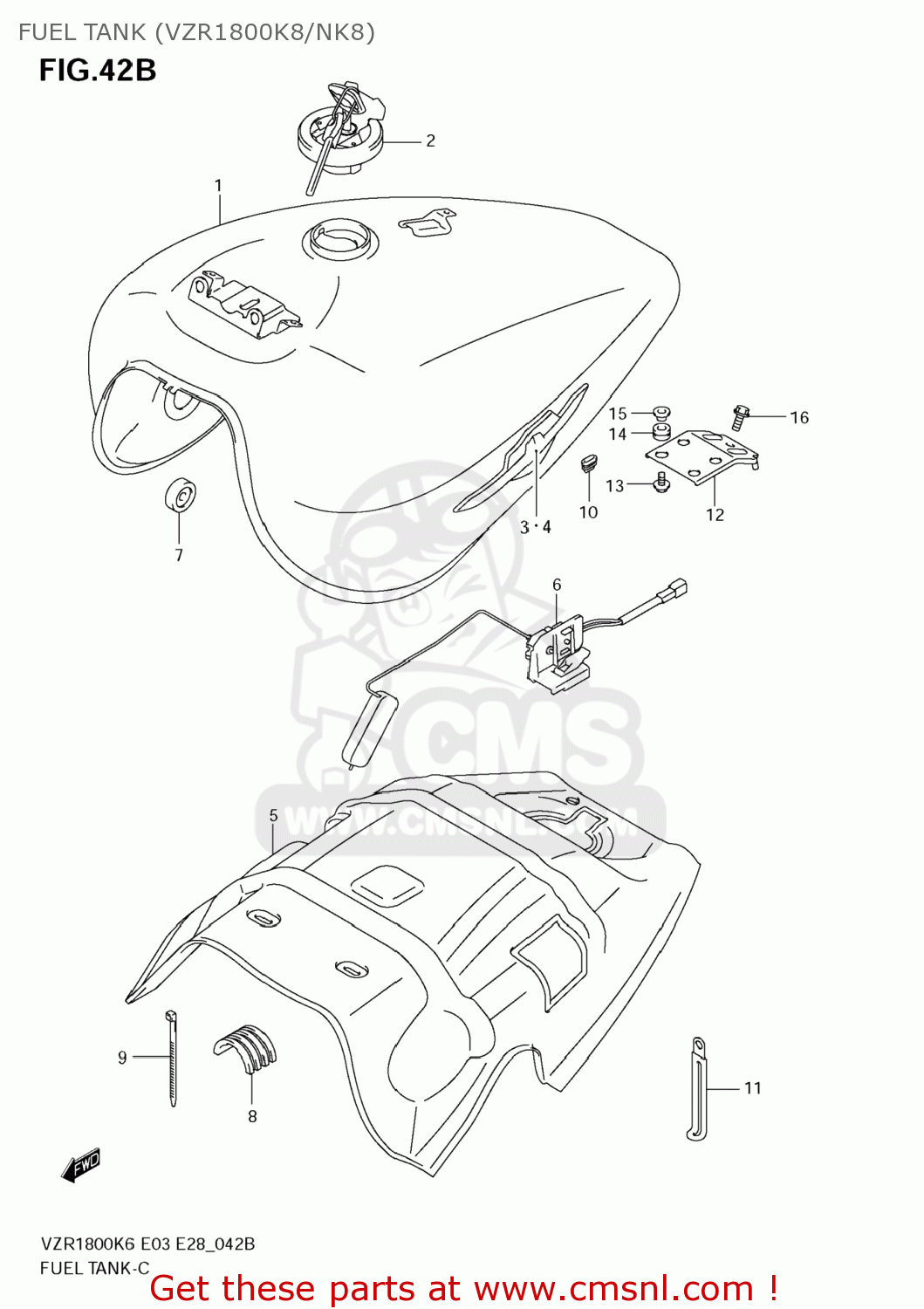

Fuel tank (vzr1800k8/nk8) diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FUEL TANK (VZR1800K8/NK8) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FUEL TANK (VZR1800K8/NK8) VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4410048G00YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 816.00

1-2

4410048G00YHG
ref: 1-2

TANK ASSY,FUEL(GRAY)

€ 902.00

1-3

4410048G00YME
ref: 1-3

TANK ASSY,FUEL(ORANGE)

€ 902.00

1-4

4410048G20YAY
ref: 1-4

TANK ASSY,FUEL(BLACK)

€ 0.00

1-5

4410048G20YHG
ref: 1-5

TANK ASSY,FUEL(GRAY)

€ 902.00

1-6

4410048G20YME
ref: 1-6

TANK ASSY,FUEL(ORANGE)

€ 902.00

2-1

4420039830
ref: 2-1

CAP SET,FUEL TANK

€ 110.50

2-2

4420039840
ref: 2-2

CAP SET,FUEL TANK

€ 226.00

3

6811148G00
ref: 3
68111-48G01

EMBLEM,FUEL TA

€ 57.00

4

6812148G00
ref: 4
68121-48G01

EMBLEM,FUEL TA

€ 57.00

5

4419148G10
ref: 5

SHIELD,FUEL TANK HEAT

€ 225.00

6

3481048G00
ref: 6

GAUGE ASSY,FUEL LEVEL SENDER

€ 88.50

7

0932910007
ref: 7

CUSHION

€ 3.00

8

4454113E10
ref: 8

CUSHION,FUEL TANK

€ 13.00

9

0940730402
ref: 9

CLAMP(L:300)

€ 3.50

10

4427629G00
ref: 10

CUSHION,FUEL TANK COVER

€ 3.50

11

0940406433
ref: 11

CLAMP(L:80)

€ 3.00

12

4453048G00
ref: 12

BRACKET,FUEL TANK RR

€ 28.50

13

0911606192
ref: 13

BOLT(6X20)

€ 2.00

14

0932008001
ref: 14

CUSHION

€ 3.50

15

0916906062
ref: 15

WASHER

€ 3.00

16

015500812A
ref: 16

BOLT

€ 2.50
