FOOTREST

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

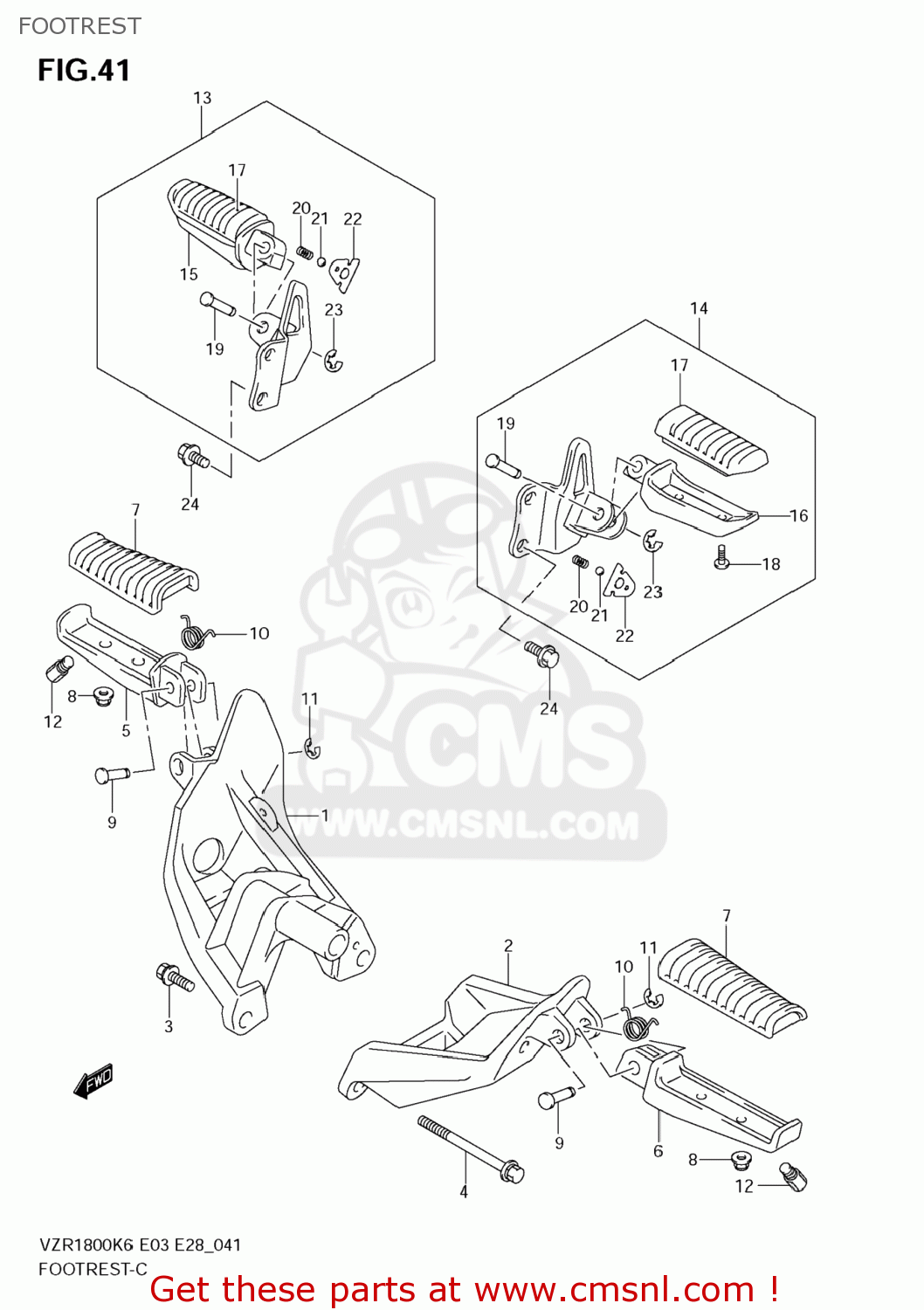

Footrest diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FOOTREST VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FOOTREST VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4351148G00
ref: 1

BRACKET,FR FOOTREST,R

€ 924.00

2

4352148G01
ref: 2

BRACKET,FR FOOTREST,L

€ 215.00

3

0910310268
ref: 3

BOLT(10X28)

€ 4.00

4

015801085A
ref: 4

BOLT

€ 3.50

5

4353148G00
ref: 5

BAR,FR FOOTREST,R

€ 25.50

6

4354148G00
ref: 6

BAR,FR FOOTREST,L

€ 25.50

7

4355048G00
ref: 7

RUBBER,FR FOOTREST

€ 15.50

8

083192106A
ref: 8

NUT

€ 2.00

9

0920808010
ref: 9

PIN(8X33.2)

€ 3.00

10

0944814047
ref: 10

SPRING

€ 3.50

11

083321106B
ref: 11

E RING

€ 2.00

12

4357607D01
ref: 12

BOLT,BANK SENSOR

€ 8.00

13

4360048G00
ref: 13

FOOTREST ASSY,PILLION,R

€ 74.50

14

4370048G00
ref: 14

FOOTREST ASSY,PILLION,L

€ 74.50

15

4361144G00
ref: 15

BAR,PILLION FOOTREST,R

€ 23.00

16

4362144G00
ref: 16

BAR,PILLION FOOTREST,L

€ 23.00

17

4355044G00
ref: 17

RUBBER,FOOTREST

€ 14.50

18

0214205127
ref: 18

SCREW

€ 1.50

19

0920808017
ref: 19

PIN

€ 2.50

20

0944005005
ref: 20

SPRING

€ 1.50

21

0611107004
ref: 21

BALL

€ 1.50

22

4381644G00
ref: 22

PLATE,PILLION,R

€ 2.50

23

083321106A
ref: 23

E RING

€ 2.00

24

0910308412
ref: 24

BOLT(8X16)

€ 2.50
