HANDLE LEVER

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

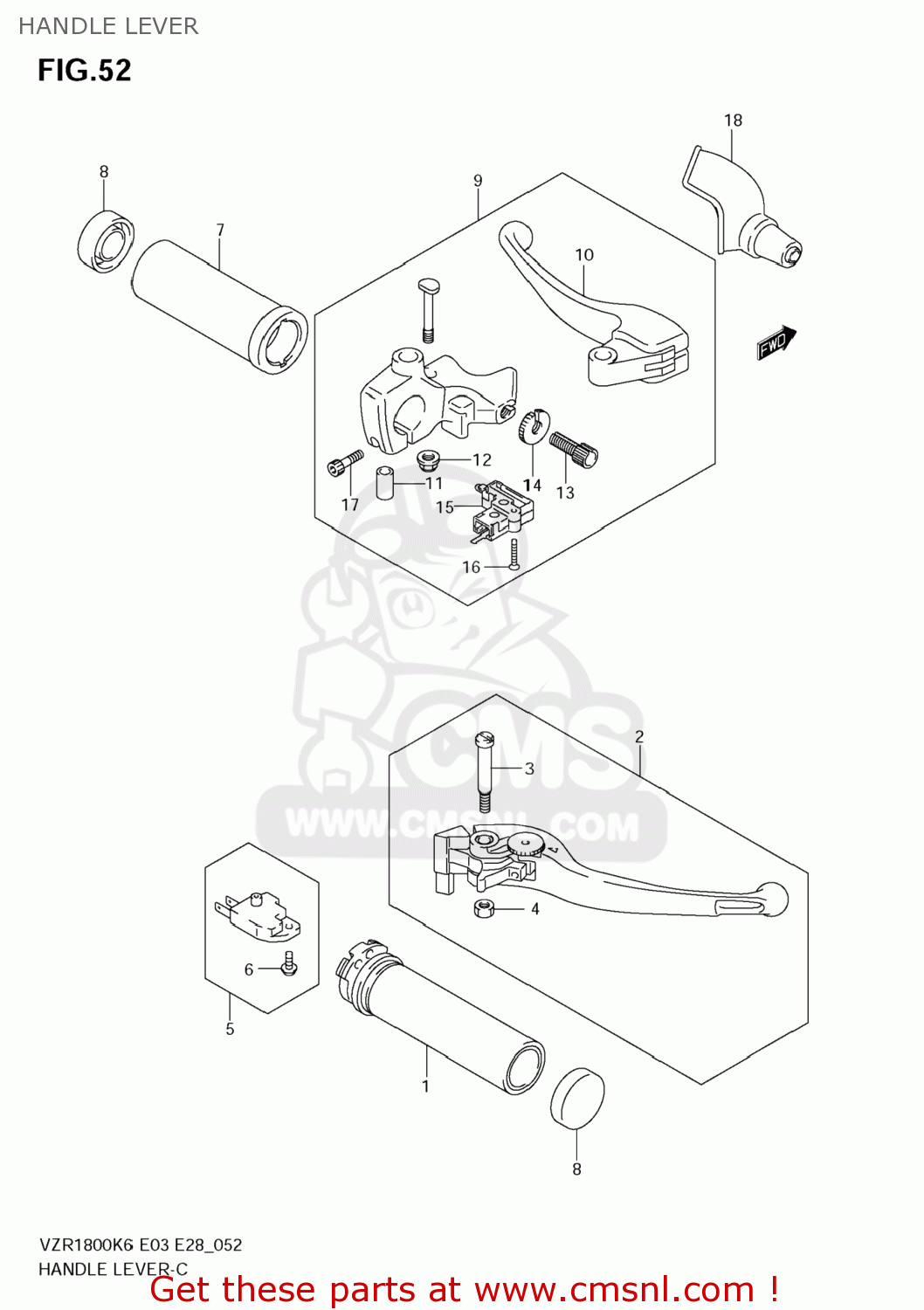

Handle lever diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

HANDLE LEVER VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

HANDLE LEVER VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

5711026D00
ref: 1-1

GRIP,THROTTLE

€ 45.00

1-2

5711026D10
ref: 1-2

GRIP,THROTTLE

€ 22.00

2-1

5730048G00
ref: 2-1

LEVER ASSY,BRAKE

€ 100.50

2-2

5730048G10
ref: 2-2

LEVER ASSY,BRAKE

€ 50.00

3

5743148G00
ref: 3

BOLT,PIVOT

€ 6.00

4

083192106A
ref: 4

NUT

€ 2.00

5

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

6

5746517C00
ref: 6

SCREW

€ 1.50

7

5721026D00
ref: 7

GRIP,L

€ 21.50

8

5721638A00
ref: 8

CAP,GRIP END

€ 6.50

9-1

5750048G00
ref: 9-1

LEVER ASSY,CLUTCH

€ 96.00

9-2

5750048G10
ref: 9-2
57500-48G11

LEVER ASSY,CLU

€ 53.50

9-3

5750048G20
ref: 9-3

LEVER ASSY,CLU

€ 141.00

10-1

5762148G00
ref: 10-1

LEVER,CLUTCH

€ 70.00

10-2

5762148G10
ref: 10-2
57621-48G11

LEVER,CLUTCH

€ 34.00

11

5762348G00
ref: 11

COLLAR

€ 17.50

12

083193106B
ref: 12

NUT

€ 2.50

13

5744108C00
ref: 13

ADJUSTER,WIRE

€ 6.50

14

5744208C00
ref: 14

NUT,LOCK

€ 8.50

15-1

5756005A00
ref: 15-1

SWITCH,CLUTCH

€ 11.00

15-2

5756005A10
ref: 15-2

SWITCH ASSY,CLUTCH

€ 25.50

16

021120320B
ref: 16

SCREW

€ 5.00

17

071300620A
ref: 17

BOLT

€ 3.00

18-1

5754148G00
ref: 18-1

COVER,CLUTCH LEVER

€ 12.50

18-2

5754148G10
ref: 18-2

COVER,CLUTCH LEVER

€ 6.00
