REAR CUSHION LEVER

VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

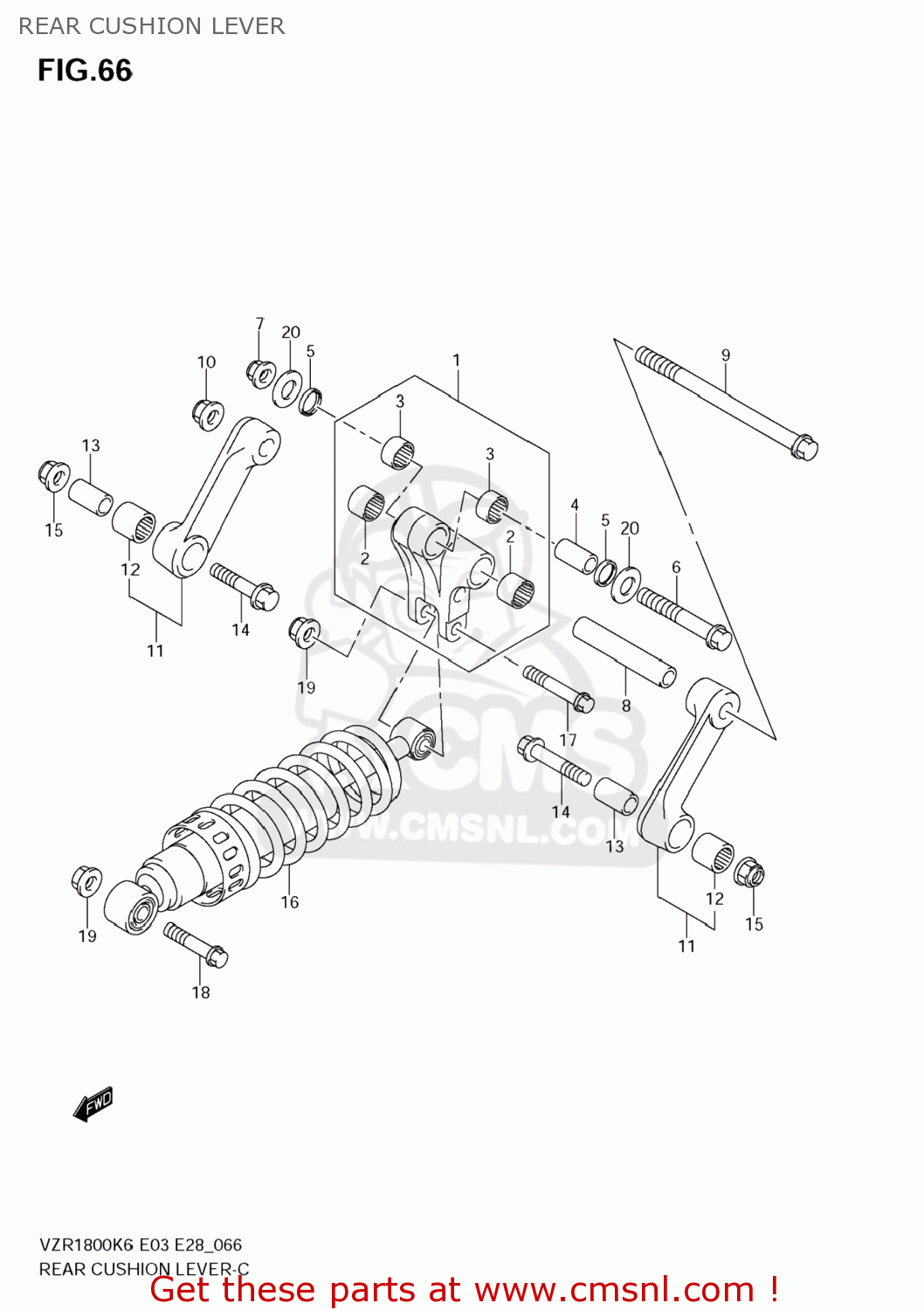

Rear cushion lever diagram VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

REAR CUSHION LEVER VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

REAR CUSHION LEVER VZR1800N BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

6260048870
ref: 1

LEVER SET,RR CUSHION

€ 245.00

2

0926320074
ref: 2

BEARING(20X27X32)

€ 25.00

3

0926320090
ref: 3

BEARING(20X26X14)

€ 14.50

4

6268448G00
ref: 4

SPACER,RR CUSHION LEVER UPPER

€ 13.50

5

0928420003
ref: 5

SEAL,OIL(20X26X4)

€ 4.00

6

6265833D00
ref: 6

BOLT,RR CUSHION LEVER FR

€ 11.50

7

083193114A
ref: 7

NUT

€ 9.00

8

0918014018
ref: 8

SPACER(14X20X102)

€ 20.00

9

6262148G00
ref: 9

BOLT,RR CUSHION LEVER LWR

€ 11.00

10

083193114A
ref: 10

NUT

€ 9.00

11

6260048880
ref: 11

ROD SET,RR CUSHION

€ 89.00

12

0926320074
ref: 12

BEARING(20X27X32)

€ 25.00

13

0918014014
ref: 13

SPACER(14X20X34)

€ 11.50

14

0910314016
ref: 14

BOLT(14X66)

€ 6.50

15

083193114A
ref: 15

NUT

€ 9.00

16-1

6210048G10
ref: 16-1

ABSORBER ASSY,RR SHOCK

€ 0.00

16-2

6210048G00
ref: 16-2

ABSORBER ASSY,RR SHOCK

€ 550.00

16-3

6210048G20
ref: 16-3

ABSORBER ASSY,RR SHOCK

€ 587.00

16-4

6210048G30
ref: 16-4

ABSORBER ASSY,RR SHOCK

€ 506.50

17

6265801C60
ref: 17

BOLT,RR CUSHION LEVER FR

€ 6.00

18

0910312042
ref: 18

BOLT(12X57)

€ 6.00

19

0915912056
ref: 19

NUT

€ 7.00

20

0821114341
ref: 20

WASHER

€ 3.00
