BATTERY

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

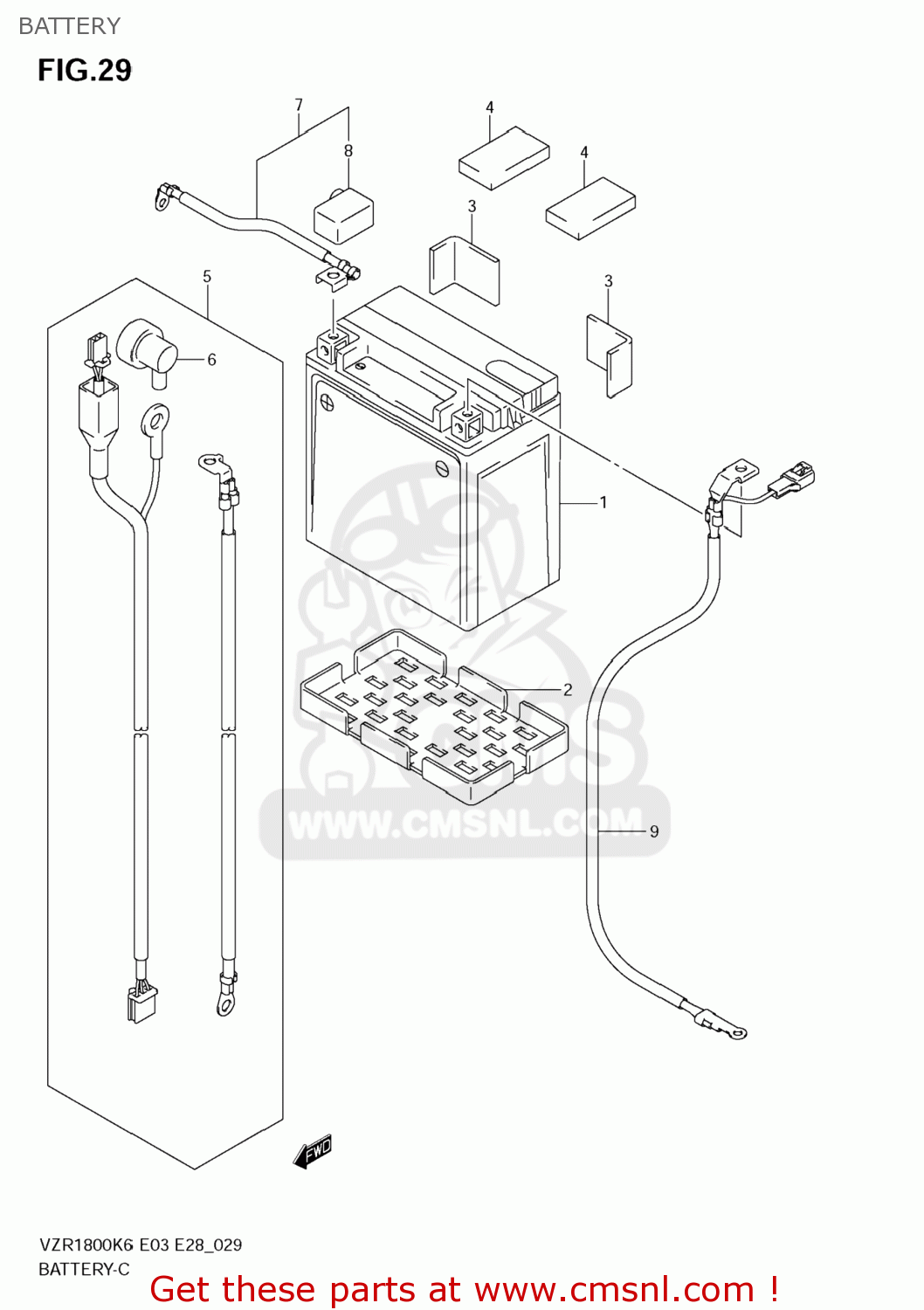

Battery diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3361031G00
ref: 1
33610-03G10

BATTERY ASSY,F

€ 143.50

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3365236000
ref: 3

CUSHION(30X50X3)

€ 5.00

3365208420
ref: 4
33651-37000

PROTECTOR,BATTERY(70X100X6)

€ 6.00

3365208420
ref: 4
33651-37000

PROTECTOR,BATTERY(70X100X6)

€ 6.00

3381048G00
ref: 5

WIRE,STARTER MOTOR LEAD

€ 46.00

3661843410
ref: 6

CAP,OIL PRESSURE SWITCH

€ 2.50

3382048G00
ref: 7

WIRE,BATTERY PLUS LEAD

€ 15.50

3362410D00
ref: 8

CAP,BATTERY PLUS

€ 4.00

3386048G00
ref: 9

WIRE,BATTERY MINUS LEAD

€ 20.50
