REAR MASTER CYLINDER

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

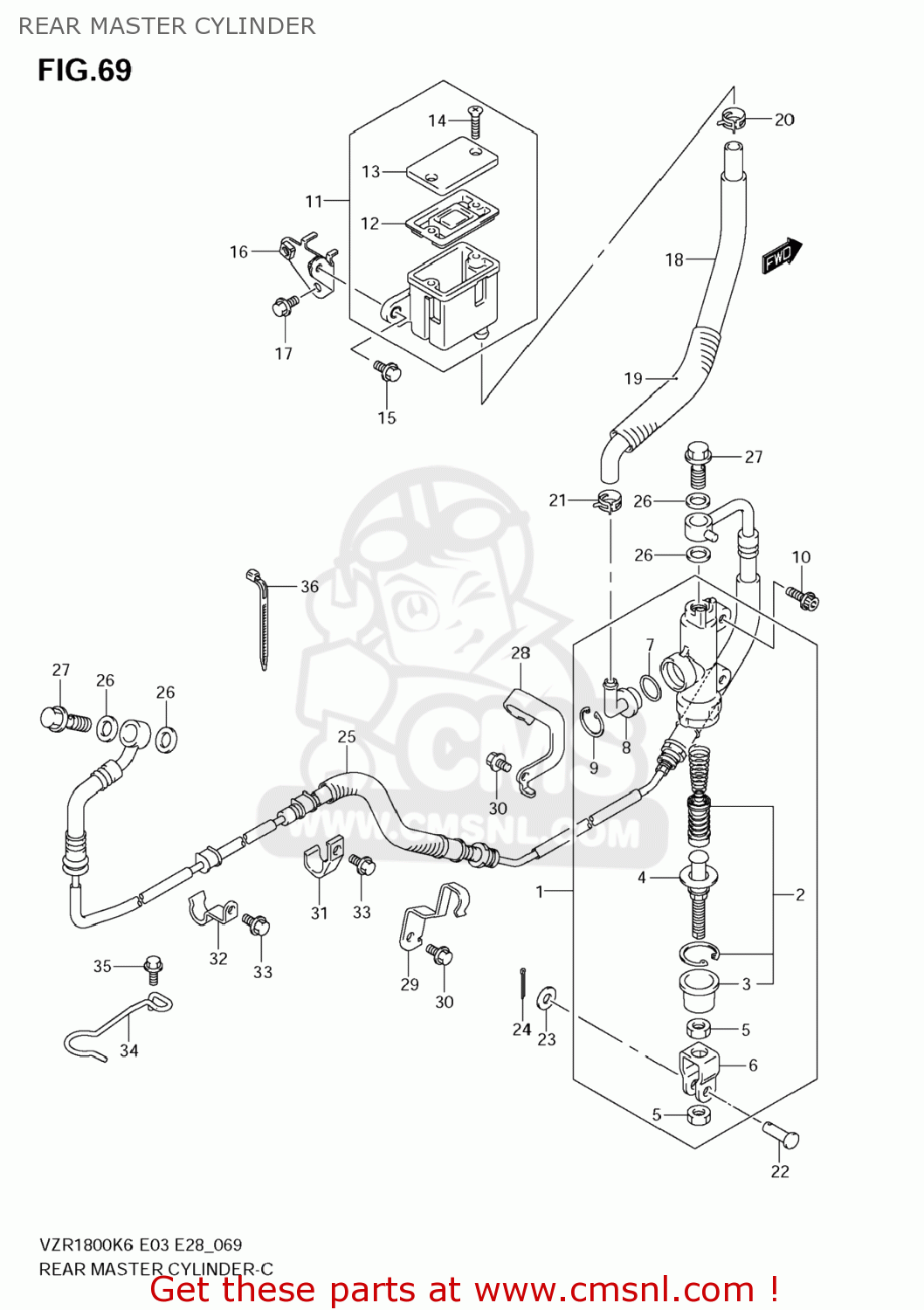

Rear master cylinder diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

REAR MASTER CYLINDER VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

REAR MASTER CYLINDER VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

6960048G00
ref: 1

CYLINDER ASSY,RR MASTER

€ 131.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6967044B00
ref: 4

ROD,PUSH

€ 19.50

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969219A00
ref: 6

YOKE

€ 10.50

7

6968634200
ref: 7

O RING

€ 3.50

8

6967200B20
ref: 8

CONNECTOR

€ 5.00

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

071200625A
ref: 10

BOLT

€ 2.50

11

6974048G00
ref: 11

TANK ASSY,RR RESERVOIR

€ 49.50

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

015470612A
ref: 15

BOLT

€ 2.00

16

6975048G00
ref: 16

BRACKET,RR RESERVOIR TANK

€ 9.00

17

015500612A
ref: 17

BOLT

€ 2.50

18

6973048G00
ref: 18

HOSE,RR RESERVOIR TANK

€ 30.50

19

6973248G00
ref: 19

HEATSHIELD,RR RSVR TANK HOSE

€ 8.50

20

0940113417
ref: 20

CLIP

€ 2.50

21

0940112404
ref: 21

CLIP

€ 2.50

22

0920006068
ref: 22

PIN(6X18.2)

€ 5.00

23

083220106A
ref: 23

WASHER

€ 2.00

24

041112015A
ref: 24

PIN

€ 1.50

25

6940048G10
ref: 25

HOSE ASSY,RR BRAKE NO.2

€ 150.50

26

0916110009
ref: 26

WASHER(10X15X1.5)

€ 2.00

27

0936010062
ref: 27

BOLT UNION

€ 5.00

28

6926648G01
ref: 28

CLAMP,RR BRAKE HOSE NO.2

€ 8.50

29

6926848G00
ref: 29

CLAMP,RR BRAKE HOSE NO.3

€ 8.00

30

015500612A
ref: 30

BOLT

€ 2.50

31

6926829G01
ref: 31

CLAMP,RR BRAKE HOSE

€ 11.50

32

6926948G00
ref: 32

CLAMP,RR BRAKE PIPE

€ 8.00

33

015470612A
ref: 33

BOLT

€ 2.00

34

6924348G00
ref: 34

GUIDE,RR BRAKE HOSE

€ 8.50

35-1

015500612A
ref: 35-1

BOLT

€ 2.50

35-2

015500616A
ref: 35-2

BOLT

€ 2.50

36

0940718402
ref: 36

CLAMP(L:165)

€ 2.50
