HEADLAMP COVER (VZR1800ZK7/ZK8/ZK9)

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

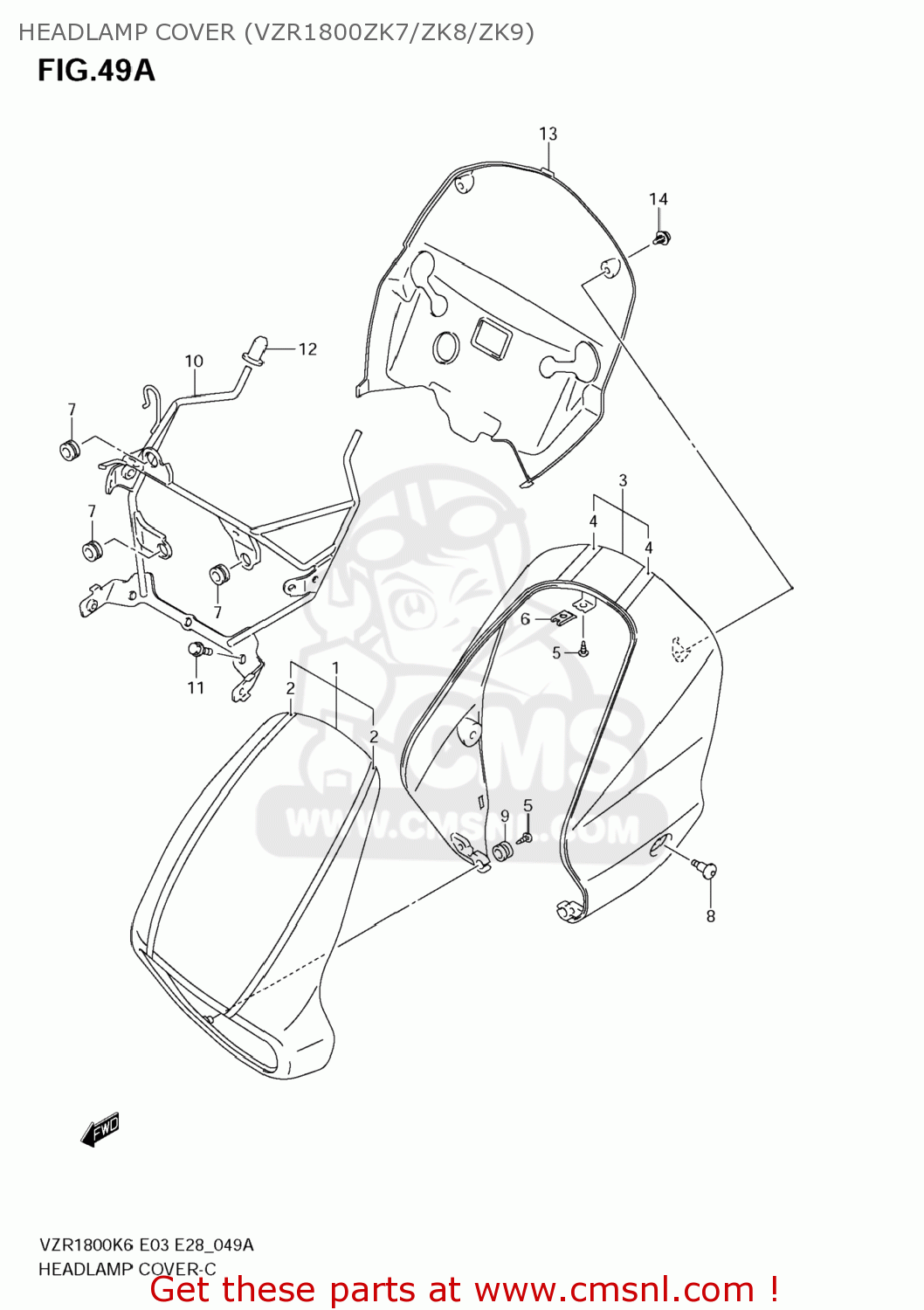

Headlamp cover (vzr1800zk7/zk8/zk9) diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

HEADLAMP COVER (VZR1800ZK7/ZK8/ZK9) VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

HEADLAMP COVER (VZR1800ZK7/ZK8/ZK9) VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

5181048G50CWH
ref: 1-1

COVER,HEADLAMP

€ 286.50

1-2

5181048G50FGM
ref: 1-2

COVER,HEADLAMP

€ 269.50

1-3

5181048G50LR5
ref: 1-3

COVER,HEADLAMP

€ 288.50

2-1

6872048G50CWH
ref: 2-1

TAPE SET,HEADLAMP HOUSING

€ 36.00

2-2

6872048G50FGN
ref: 2-2

TAPE SET,HEADLAMP HOUSING

€ 24.50

2-3

6872048G50LR5
ref: 2-3

TAPE SET,HEADLAMP HOUSING

€ 26.00

3-1

5182048G50CWH
ref: 3-1

COVER,HEADLAMP LWR

€ 355.00

3-2

5182048G50FGM
ref: 3-2

COVER,HEADLAMP LWR

€ 330.00

3-3

5182048G50LR5
ref: 3-3

COVER,HEADLAMP LWR

€ 355.00

4-1

6872048G60CWH
ref: 4-1

TAPE SET,HEADLAMP HOUSING LWR

€ 9.00

4-2

6872048G60FGN
ref: 4-2

TAPE SET,HEADLAMP HOUSING LWR

€ 13.50

4-3

6872048G60LR5
ref: 4-3

TAPE SET,HEADLAMP HOUSING LWR

€ 12.00

5

035410510A
ref: 5

SCREW

€ 1.50

6

0914805047A05
ref: 6
09148-05047

NUT

€ 2.00

7

0932009016
ref: 7

CUSHION

€ 2.50

8

0913906132
ref: 8
09139-06191

SCREW,FUEL TAN

€ 4.50

9

0932009039
ref: 9

CUSHION

€ 6.00

10

5185048G00
ref: 10

BRACE,HEADLAMP COVER

€ 187.00

11

015500816A
ref: 11

BOLT

€ 2.50

12

5183121D00
ref: 12

CUSHION,HEADLAMP HOUSING BRACE

€ 3.00

13

5183148G00
ref: 13

COVER,HEADLAMP UPR

€ 89.00

14

09409063145PK
ref: 14

CLIP(BLACK)

€ 3.50
