EVAPO SYSTEM (E33)

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

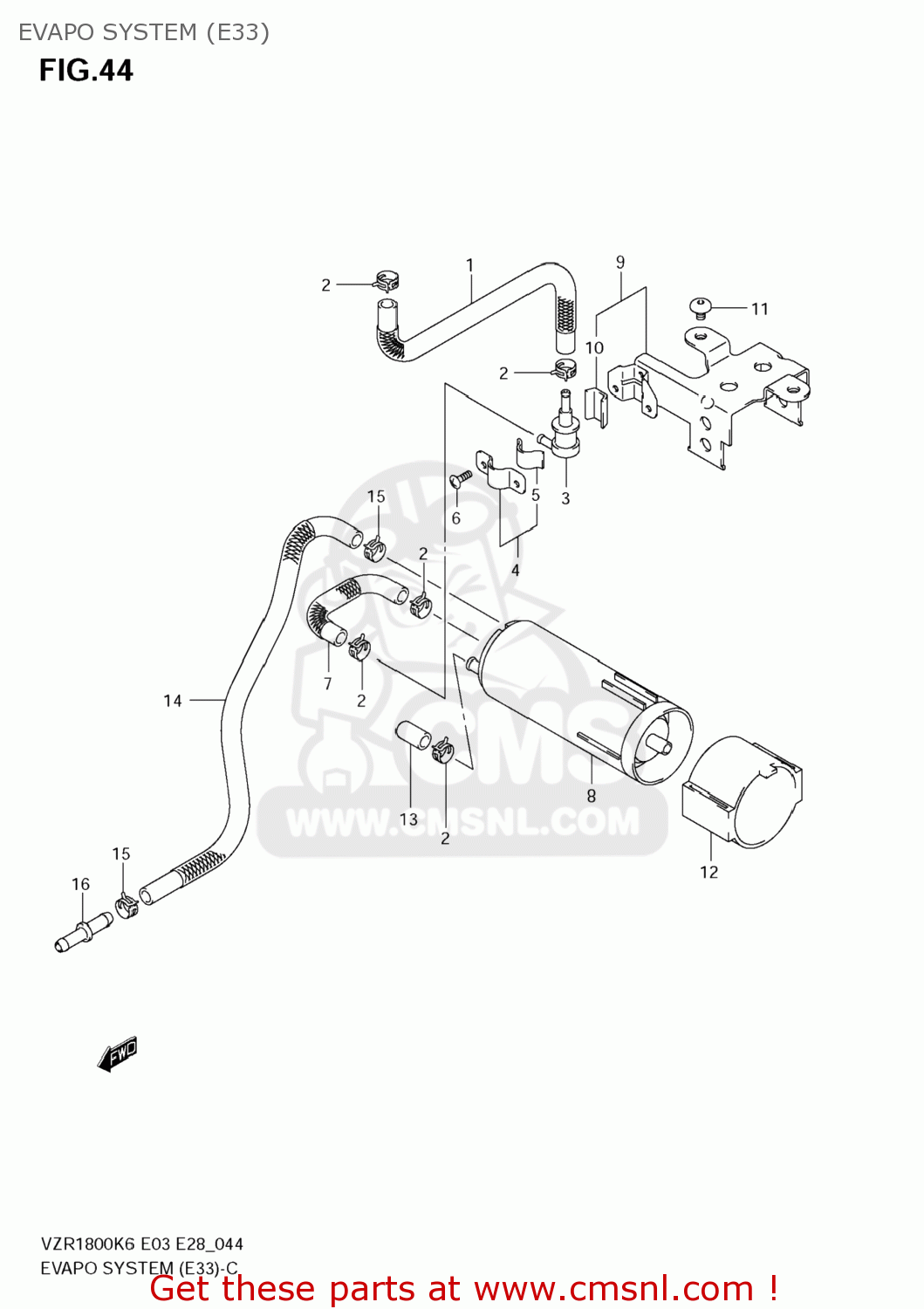

Evapo system (e33) diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

EVAPO SYSTEM (E33) VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

EVAPO SYSTEM (E33) VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4443448G00
ref: 1-1

HOSE,TANK & BREATHER VALVE

€ 0.00

1-2

4443448G10
ref: 1-2

HOSE,TANK & BREATHER VALVE

€ 26.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489224A00
ref: 4

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

021420408A
ref: 6

SCREW

€ 1.00

7-1

4443548G00
ref: 7-1

HOSE,BREATHER VALVE & CANISTER

€ 0.00

7-2

4443548G10
ref: 7-2

HOSE,BREATHER VALVE & CANISTER

€ 14.00

8

1721026E00E00
ref: 8
17210-26E00

CANISTER

€ 261.50

9

4488048G00
ref: 9

BRACKET,CANISTER

€ 0.00

10

4489424A00
ref: 10

CUSHION

€ 1.50

11

0913906108
ref: 11

SCREW(6X12)

€ 3.00

12

4488348G00
ref: 12

CUSHION,CANISTER

€ 0.00

13

0925107003
ref: 13

CAP,OD:11.5

€ 2.00

14-1

4443648G00
ref: 14-1

HOSE,CSTR PURGE

€ 0.00

14-2

4443648G10
ref: 14-2

HOSE,CSTR PURGE

€ 29.00

15

0940112404
ref: 15

CLIP

€ 2.50

16

0936706009
ref: 16

JOINT

€ 2.50
