HEADLAMP (VZR1800K6/K7/K8/K9

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

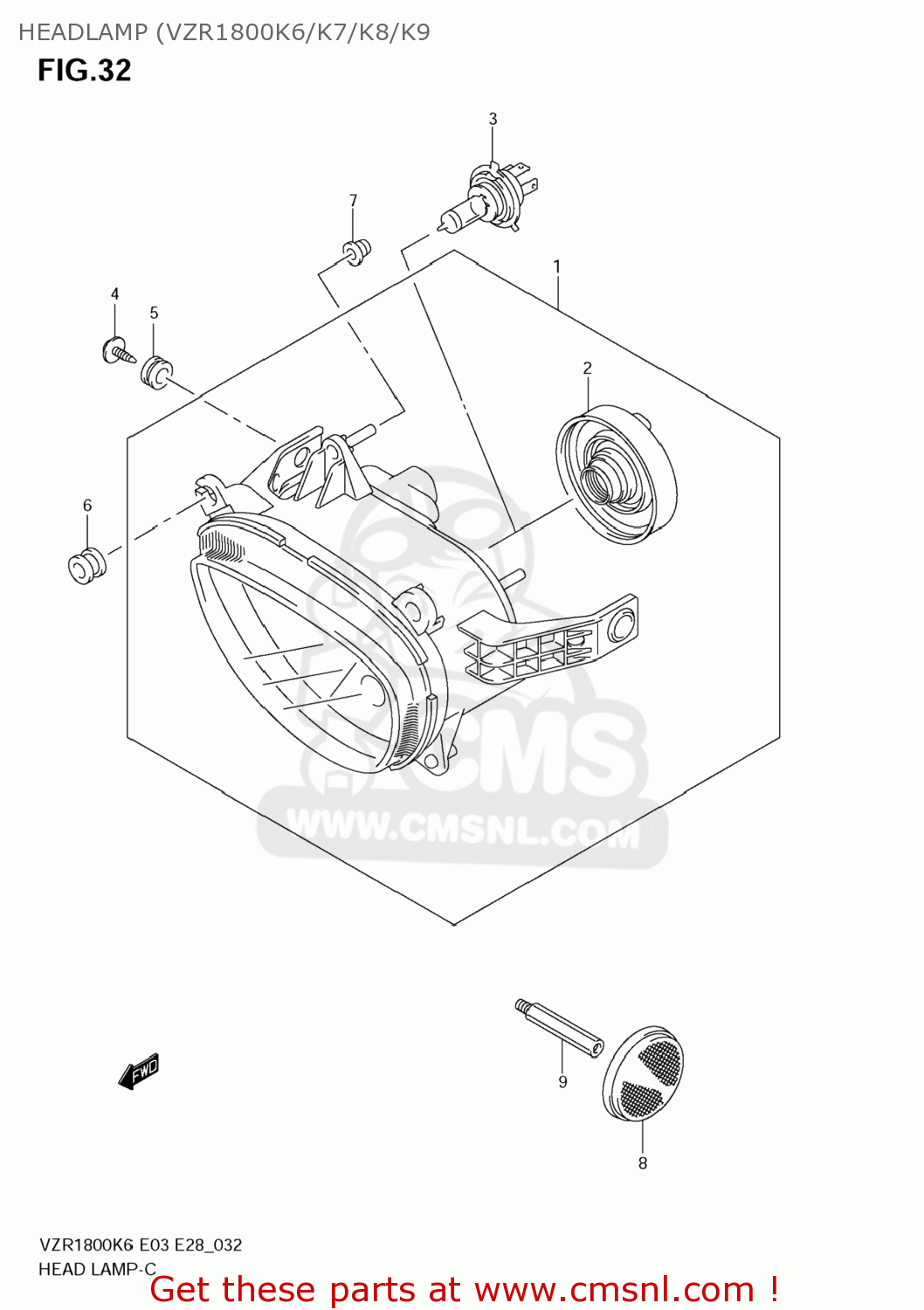

Headlamp (vzr1800k6/k7/k8/k9 diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

HEADLAMP (VZR1800K6/K7/K8/K9 VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

HEADLAMP (VZR1800K6/K7/K8/K9 VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3510048G31999
ref: 1

HEADLAMP ASSY

€ 203.00

2

3517314G00
ref: 2

COVER

€ 11.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0913605062
ref: 4

SCREW(5X15)

€ 2.50

5

0932009016
ref: 5

CUSHION

€ 2.50

6

0932009039
ref: 6

CUSHION

€ 6.00

7

0932009051
ref: 7

CUSHION

€ 4.50

8-1

3595014A00
ref: 8-1

REFLECTOR,REFLEX FR

€ 15.00

8-2

3595014A10
ref: 8-2
35950-14A11

REFLECTOR,REFLEX

€ 11.00

9

0911906104
ref: 9

BOLT

€ 9.50
