CRANK BALANCER

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

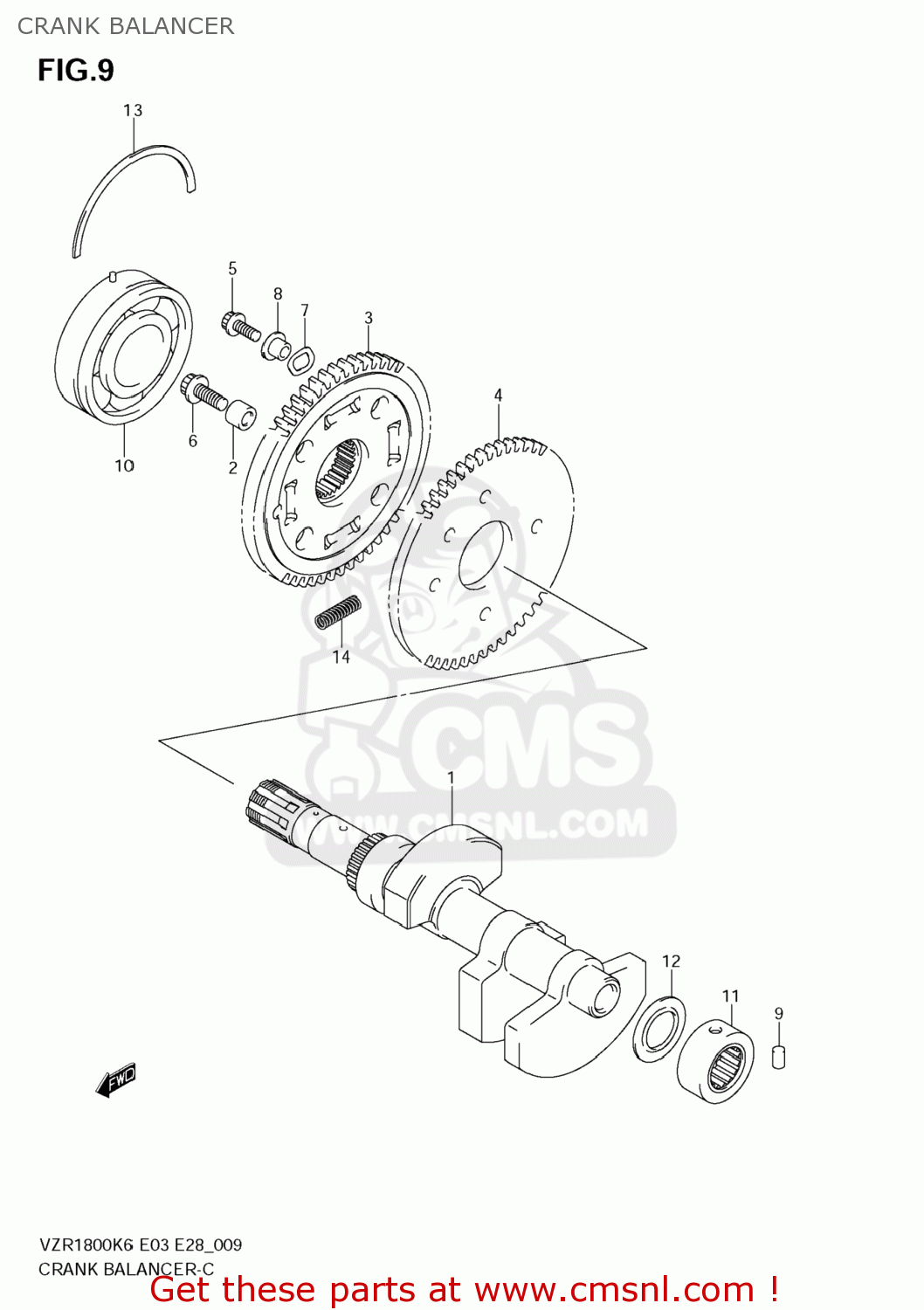

Crank balancer diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

CRANK BALANCER VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)
CRANK BALANCER VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)
CRANK BALANCER VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1265048G00
ref: 1
SHAFT,CRANK BALANCER
€ 452.50
2
1266348G00
ref: 2
SPACER,CRANK BAL DRN GEAR NO.2
€ 6.00
3
1266648G00
ref: 3
GEAR,CRANK BAL
€ 207.50
4
1266748G00
ref: 4
GEAR,CRANK BAL
€ 131.00
5
0910606099A05
ref: 5
09106-06099
BOLT (6X16)
€ 2.50
6
0910608174A05
ref: 6
09106-08174
BOLT,FRONT CAL
€ 4.00
7
0916411005
ref: 7
WASHER
0916411005
€ 1.50
8
0918006329A05
ref: 8
09180-06329
SPACER VZR1800
€ 4.00
9
0926106003
ref: 9
PIN(6X10)
0926106003
€ 1.50
10
0926225149
ref: 10
BEARING(25X62X17)
€ 58.00
11
0926320087
ref: 11
BEARING(20X34X13.5)
0926320087
€ 31.50
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
13
0939062012
ref: 13
C RING
0939062012
€ 5.00
14
0944007001
ref: 14
SPRING
0944007001
€ 2.00
