SIDE COVER (VZR1800K8/NK8)

VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

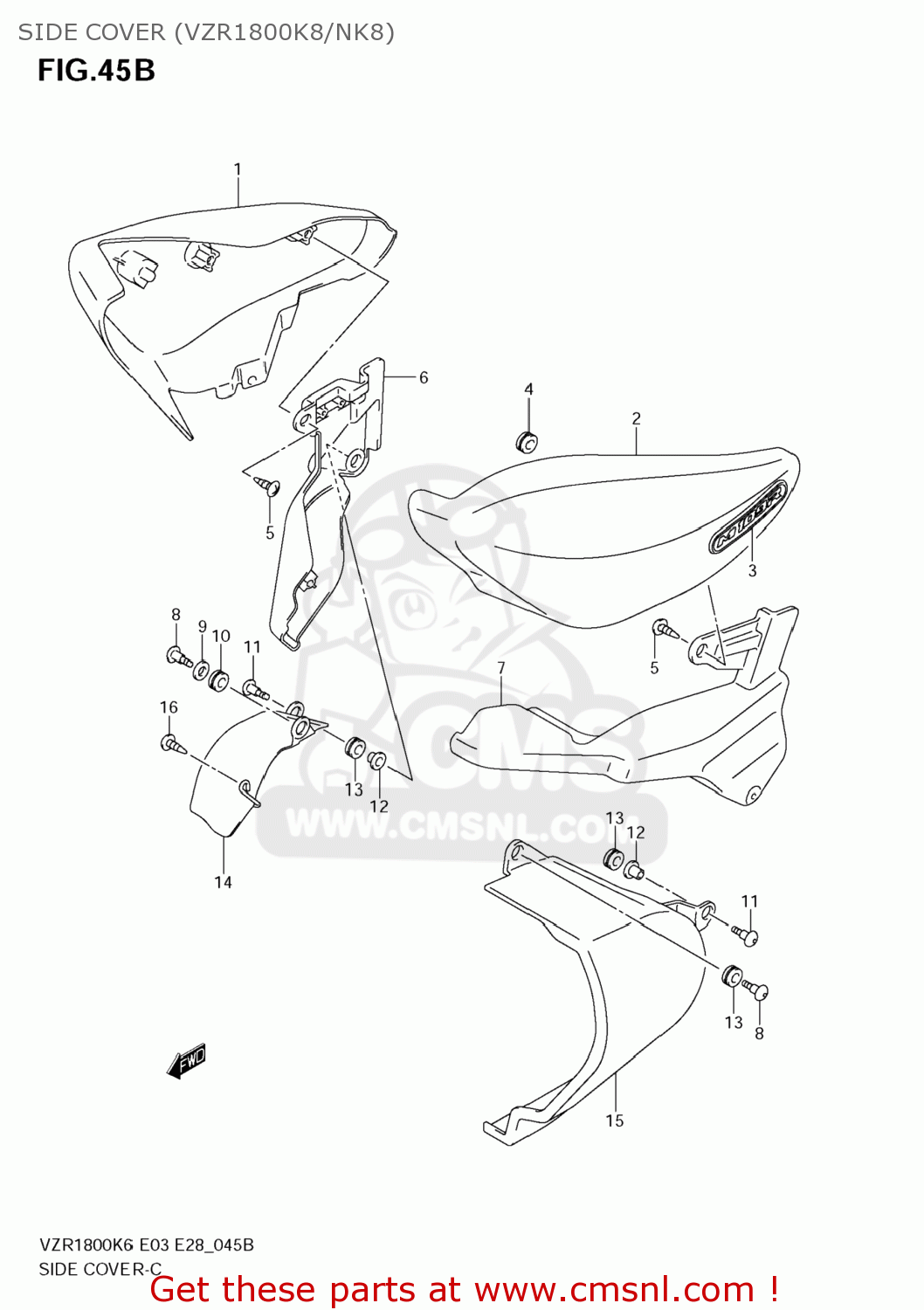

Side cover (vzr1800k8/nk8) diagram VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

SIDE COVER (VZR1800K8/NK8) VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

SIDE COVER (VZR1800K8/NK8) VZR1800Z BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4711048G00YAY
ref: 1-1

COVER, FRAME RH (BLACK)

€ 188.00

1-2

4711048G00YHG
ref: 1-2

COVER,SIDE,R(GRAY)

€ 151.50

1-3

4711048G00YME
ref: 1-3

COVER,SIDE,R(ORANGE)

€ 151.50

2-1

4721048G00YAY
ref: 2-1

COVER,SIDE,L(BLACK)

€ 0.00

2-2

4721048G00YHG
ref: 2-2

COVER,SIDE,L(GRAY)

€ 151.50

2-3

4721048G00YME
ref: 2-3

COVER,SIDE,L(ORANGE)

€ 151.50

3

6813148G00
ref: 3

EMBLEM,M109R

€ 33.00

4

0932008028
ref: 4

CUSHION

€ 2.50

5

035410516A
ref: 5

SCREW

€ 1.50

6

4712148G00
ref: 6

COVER,SIDE LWR,R

€ 15.50

7

4722148G00
ref: 7

COVER,SIDE LWR,L

€ 15.50

8

0913906126
ref: 8

SCREW(6X20)

€ 4.00

9

0916010123
ref: 9

WASHER(10.5X20X2.3)

€ 2.00

10

0932009501
ref: 10

CUSHION

€ 2.00

11

0913906029
ref: 11

SCREW(6X25)

€ 5.00

12

0918006319
ref: 12

SPACER(6.5X10X11.6)

€ 3.50

13

0932008021
ref: 13

CUSHION

€ 4.00

14

4713048G00
ref: 14

COVER,LWR,R

€ 154.00

15

4723148G10
ref: 15

COVER,LWR,L

€ 401.50

16

0913906126
ref: 16

SCREW(6X20)

€ 4.00

17

4725048G00
ref: 17

BRACKET,LWR COVER,L

€ 8.50
