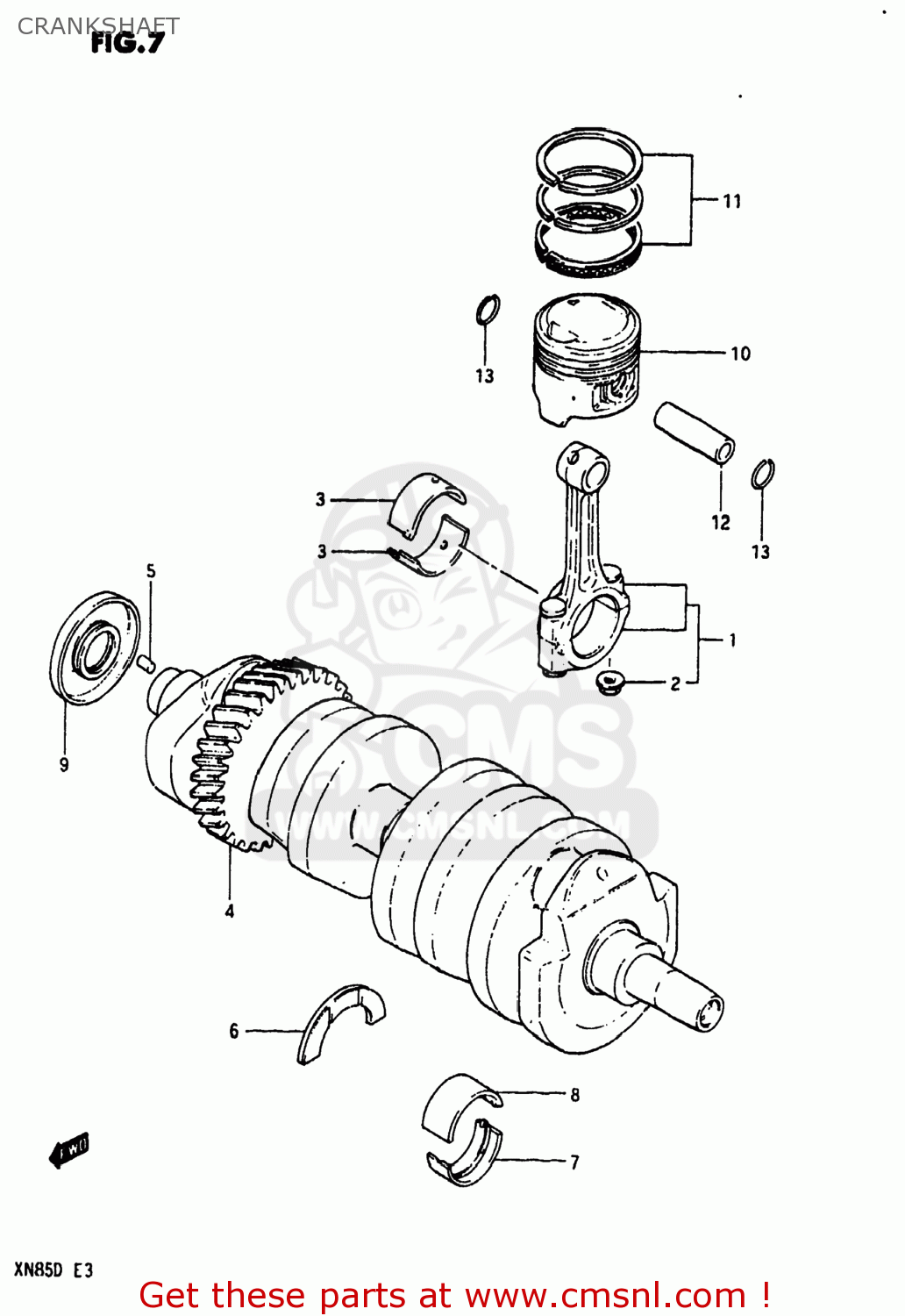

CRANKSHAFT

ref

part #

description

quantity

1

1216009302
ref: 1
12160-09303

CONNECTING ROD ASSEMBLY

€ 104.00

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216409300010
ref: 3-1

BEARING,CRANK PIN

€ 0.00

3-2

1216409300020
ref: 3-2
12164-31E00-0B0

BEARING,CRANK PIN

€ 19.00

3-3

1216409300030
ref: 3-3
12164-31E00-0C0

BEARING,CRANK PIN

€ 19.00

3-4

1216409300040
ref: 3-4

BEARING,CRANK PIN

€ 0.00

4

1222009301
ref: 4

CRANKSHAFT

€ 0.00

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1222809301
ref: 6-1

PLATE,CRANK THRUST

€ 0.00

6-2

1222809302
ref: 6-2

PLATE,CRANK THRUST

€ 0.00

6-3

1222809303
ref: 6-3

PLATE,CRANK THRUST

€ 0.00

7-1

1222909300010
ref: 7-1
12229-09301-0A0

METAL CRANKSHAFT (YELLOW)

€ 10.00

7-2

1222909300020
ref: 7-2
12229-09301-0B0

METAL CRANKSHAFT (BROWN)

€ 10.00

7-3

1222909300030
ref: 7-3
12229-09301-0C0

METAL CRANKSHAFT (BLACK)

€ 10.00

7-4

1222909300040
ref: 7-4
12229-09301-0D0

METAL CRANKSHAFT (YELLOW)

€ 9.00

8-1

1222909310010
ref: 8-1
12229-06B10-0A0

METAL CRANKSHAFT (YELLOW)

€ 12.00

8-2

1222909310020
ref: 8-2
12229-06B10-0B0

METAL CRANKSHAFT (BROWN)

€ 12.50

8-3

1222909310030
ref: 8-3
12229-06B10-0C0

METAL CRANKSHAFT (BLACK)

€ 12.00

8-4

1222909310040
ref: 8-4
12229-06B10-0D0

METAL CRANKSHAFT (GREEN)

€ 11.50

9

0928330031
ref: 9
09283-30048

OIL SEAL

€ 15.00

10-1

1211109302
ref: 10-1

PISTON (62.00MM)

€ 55.00

10-2

1211109302050
ref: 10-2

PISTON (62.50MM)

€ 0.00

10-3

1211109302100
ref: 10-3

PISTON (63.00MM)

€ 55.00

11-1

1214009320
ref: 11-1
12140-09321

RING SET,PISTON

€ 51.00

11-2

1214009320050
ref: 11-2
12140-09321-050

RING SET,PISTON (OS:0.5)

€ 42.00

11-3

1214009320100
ref: 11-3
12140-09321-100

RING SET,PISTON (OS:1.0)

€ 39.00

12

1215109301
ref: 12
12151-29001

PIN,PISTON

€ 9.00

13

0938116002
ref: 13
09381-16001

CIRCLIP

€ 1.50
