TRANSMISSION
XN85D 1983 (D) USA (E03)

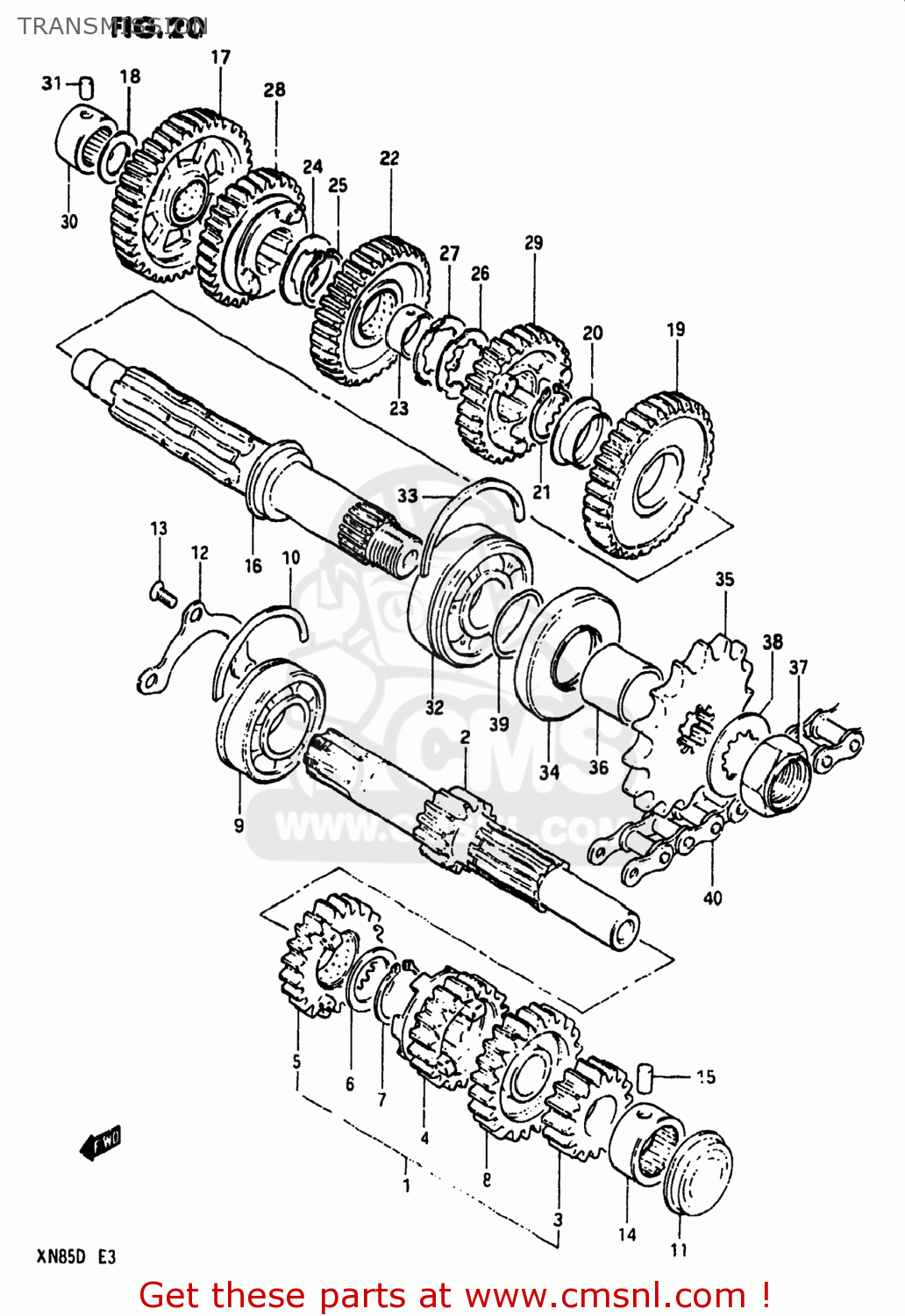

Transmission diagram XN85D 1983 (D) USA (E03)
TRANSMISSION XN85D 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412009302
ref: 1
SHAFT,COUNTER
€ 419.50
2
2412109302
ref: 2
SHAFT,COUNTER
€ 104.00
3
2422109301
ref: 3
GEAR,SECOND DRIVE
€ 0.00
4
2423109304
ref: 4
GEAR,THIRD DRIVE
€ 92.50
5
2424009302
ref: 5
GEAR,FOURTH DRIVE
€ 75.50
6
0916725012
ref: 6
WASHER,LOCK
€ 3.50
7
0938025010
ref: 7
CIRCLIP
€ 3.00
8
2425009304
ref: 8
GEAR,FIFTH DRIVE
€ 75.50
9
0926225051
ref: 9
09262-25105
BEARING(25X62X17)
€ 59.50
10
0939062006
ref: 10
09390-62012
C-RING
€ 5.00
11
0924134003
ref: 11
PLUG
€ 8.50
12
2474145000
ref: 12
RETAINER,CNTR SHAFT BEARING
€ 8.00
13
0212206168
ref: 13
02122-06167
SCREW
€ 2.00
14
0926320044
ref: 14
BEARING
€ 37.50
15
0422107129
ref: 15
PIN
€ 1.50
16
2413109301
ref: 16
SHAFT,DRIVE
€ 104.00
17
2431009301
ref: 17
GEAR,FIRST DRIVEN
€ 102.00
18
0821120321
ref: 18
09181-20223
WASHER,THRUST
€ 3.00
19
2432109301
ref: 19
GEAR,SECOND DRIVEN
€ 112.00
20
0930128001
ref: 20
BUSH(28X32X2)
€ 19.50
21
0833111289
ref: 21
08331-3128A
CIRCLIP
€ 2.50
22
2433109302
ref: 22
GEAR,THIRD DRIVEN
€ 102.00
23
2433249000
ref: 23
BUSH,3RD DRIVEN GEAR
€ 13.50
24
0916728001
ref: 24
WASHER,LOCK
€ 3.00
25
0833111289
ref: 25
08331-3128A
CIRCLIP
€ 2.50
26
0916728002
ref: 26
WASHER,LOCK
€ 3.00
27
0916928001
ref: 27
WASHER
€ 3.00
28
2434109300
ref: 28
GEAR,FOURTH DRIVEN
€ 112.00
29
2435109302
ref: 29
GEAR,FIFTH DRIVEN
€ 112.00
30
0926320040
ref: 30
BEARING(20X34X20)
€ 42.50
31
0422107129
ref: 31
PIN
€ 1.50
32
0926225051
ref: 32
09262-25105
BEARING(25X62X17)
€ 59.50
33
0939062006
ref: 33
09390-62012
C-RING
€ 5.00
34
0928332012
ref: 34
SEAL,OIL(32X62X7)
€ 19.00
35
2751144000
ref: 35
SPROCKET,ENGINE(NT:16)
€ 49.00
36
0918025060
ref: 36
SPACER
€ 0.00
37
0915920001
ref: 37
09159-20004
NUT
€ 12.00
38
0916725014
ref: 38
09167-25019
WASHER
€ 2.50
39
0928025001
ref: 39
O RING(D:1,ID:24.5)
€ 2.50
40
2760009350
ref: 40
CHAIN ASSEMBLY,DRIVE
€ 212.50
