FOOTREST
XN85D 1983 (D) USA (E03)

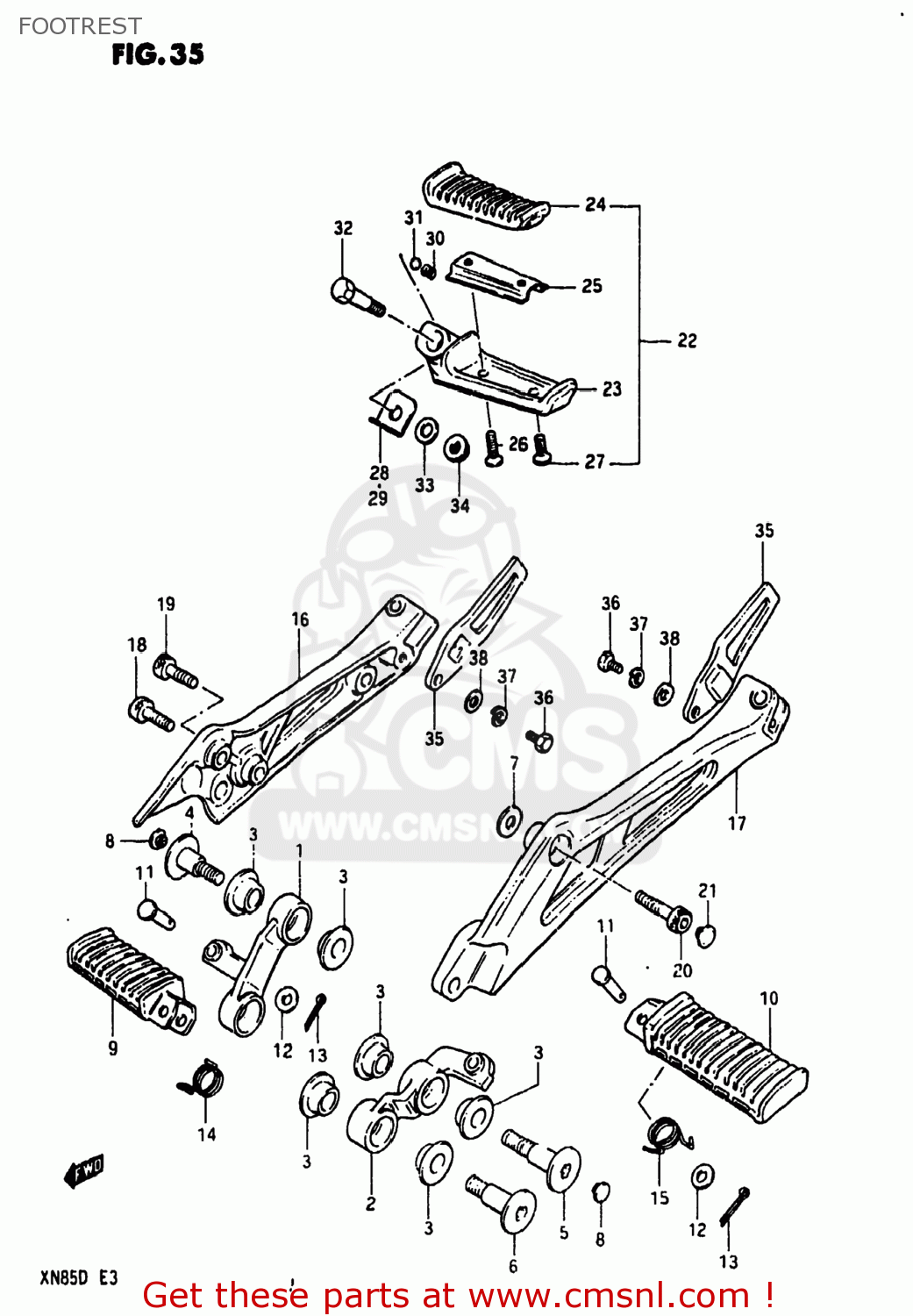

Footrest diagram XN85D 1983 (D) USA (E03)
FOOTREST XN85D 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351109300
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 46.50
2
4352109300
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 48.50
3
0930514004
ref: 3
BUSH
€ 6.00
4
0910610005
ref: 4
BOLT
€ 4.00
5
0910610004
ref: 5
BOLT
€ 4.00
6
0910610005
ref: 6
BOLT
€ 4.00
7
0916010035
ref: 7
WASHER(10.5X28X2.3)
€ 2.00
8
4357534500
ref: 8
CAP
€ 1.50
9
4355034500
ref: 9
43550-34501
RUBBER,FOOTREST
€ 36.00
10
4356034500
ref: 10
43560-34501
FOOTREST
€ 37.00
11
0920008002
ref: 11
PIN
€ 2.00
12
0832211088
ref: 12
08322-01087
WASHER
€ 2.00
13
0411120208
ref: 13
04111-2020A
PIN 20X20
€ 1.50
14
0944819016
ref: 14
SPRING
€ 0.00
15
0944819017
ref: 15
SPRING
€ 0.00
16
4381109300
ref: 16
BRACKET,MUFFLER,RIGHT
€ 90.50
17
4382109300
ref: 17
BRACKET,MUFFLER,LEFT
€ 90.50
18
0910610003
ref: 18
07130-10257
BOLT
€ 3.00
19
0910610006
ref: 19
07130-10307
BOLT
€ 4.50
20
0213205168
ref: 20
02122-05167
SCREW
€ 2.00
21
4357534500
ref: 21
CAP
€ 1.50
22-1
4360045501
ref: 22-1
FOOTREST ASSY,PILLION,R
€ 41.50
22-2
4370045501
ref: 22-2
FOOTREST ASSY,PILLION,L
€ 56.50
23-1
4361045501
ref: 23-1
BAR,PILLION FOOTREST,RIGHT
€ 17.00
23-2
4371045501
ref: 23-2
BAR,PILLION FOOTREST,LEFT
€ 16.00
24
4361245500
ref: 24
RUBBER,PILLION FOOTREST
€ 10.00
25
4363245500
ref: 25
43632-45501
PLATE,RUBBER STOP
€ 2.50
26
0213205168
ref: 26
02122-05167
SCREW
€ 2.00
27
0213205127
ref: 27
02122-05127
SCREW 5X12
€ 2.50
28
4363509300
ref: 28
PLATE,SPRING STOP,R
€ 3.50
29
4373509300
ref: 29
PLATE,SPRING STOP
€ 3.00
30
0944005003
ref: 30
SPRING
€ 1.50
31
0611107004
ref: 31
BALL
€ 1.50
32
0911106035
ref: 32
BOLT
€ 4.50
33
0832211068
ref: 33
08322-0106B
WASHER 6MM
€ 2.00
34
0831931068
ref: 34
08319-31067
NUT
€ 2.50
35
4367109300
ref: 35
43671-09301
GUARD,REAR FOOT
€ 26.50
36
0110708168
ref: 36
01500-0816B
BOLT
€ 2.00
37
0832121088
ref: 37
08321-01087
LOCK WASHER
€ 2.00
38
0832221088
ref: 38
08322-01087
WASHER
€ 2.00
