CYLINDER

XN85D 1983 (D) USA (E03)

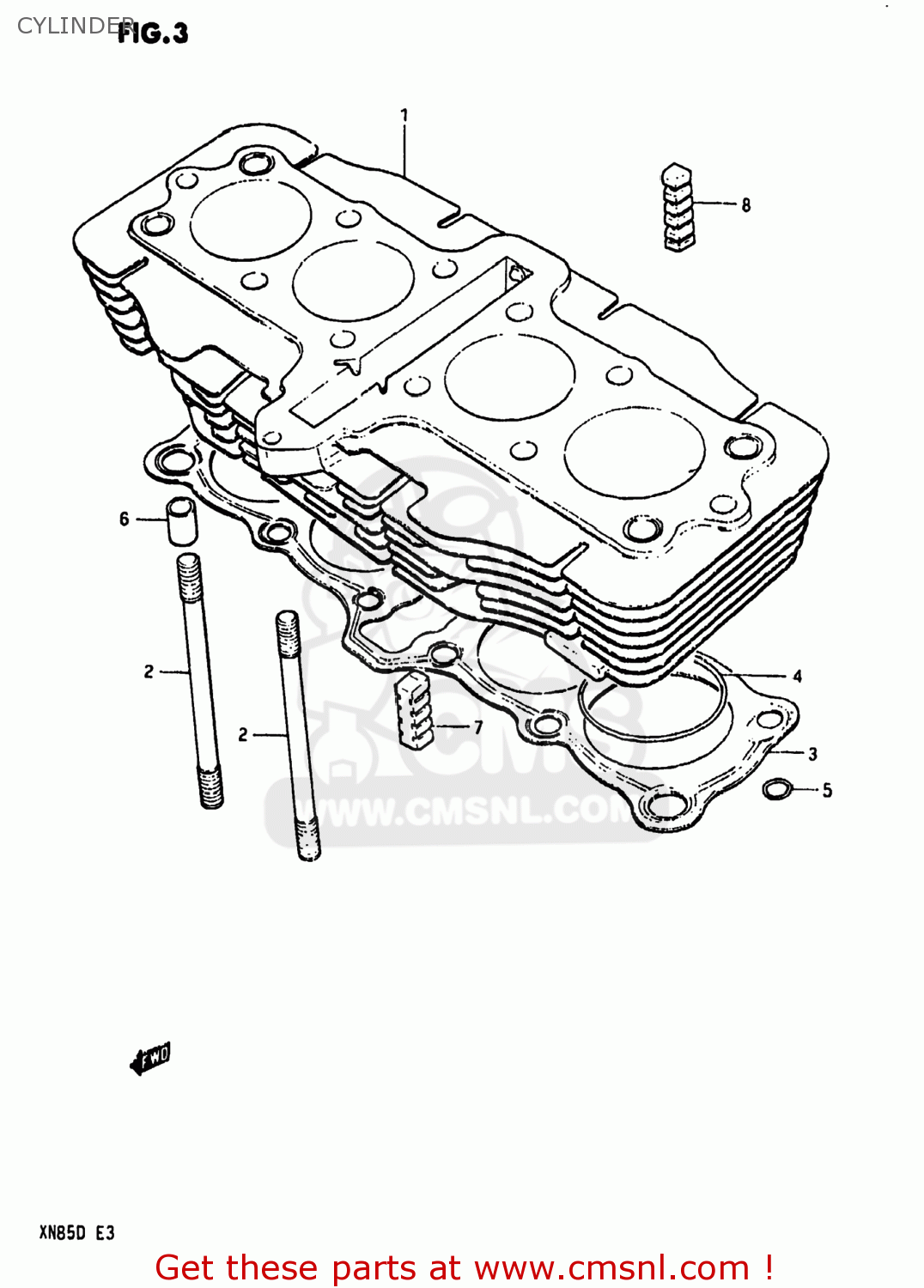

Cylinder diagram XN85D 1983 (D) USA (E03)

CYLINDER XN85D 1983 (D) USA (E03)

CYLINDER XN85D 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121009303
ref: 1

CYLINDER

€ 0.00

2

0910810047
ref: 2

STUD

€ 8.50

3

1124109302
ref: 3

GASKET,CYLINDER

€ 20.50

4

0928061001
ref: 4

O RING(D:2,ID:61)

€ 4.00

5

0928012008
ref: 5

O RING(D:2.4,ID:12.3)

€ 3.00

6

0920613001
ref: 6
04211-13189

PIN

€ 2.50

7

1125234200
ref: 7
11251-36500

PAD,CYLINDER

€ 6.50

8

1125334200
ref: 8
11251-36500

PIN,EXHAUST VALVE

€ 6.50
